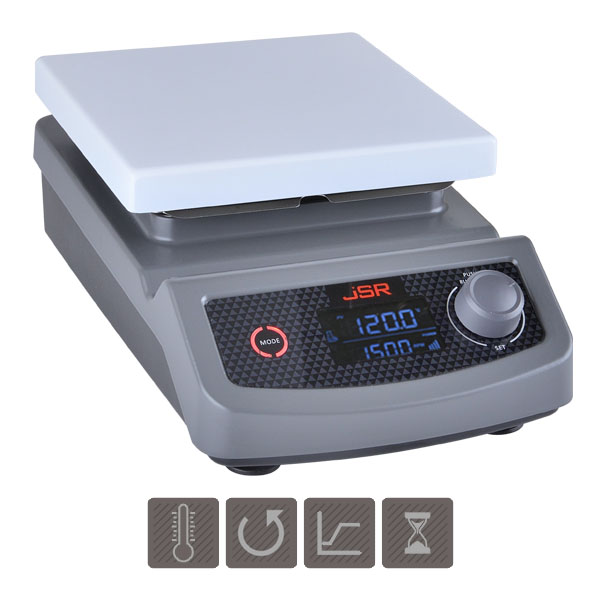

Digital Hotplate Magnetic Stirrer

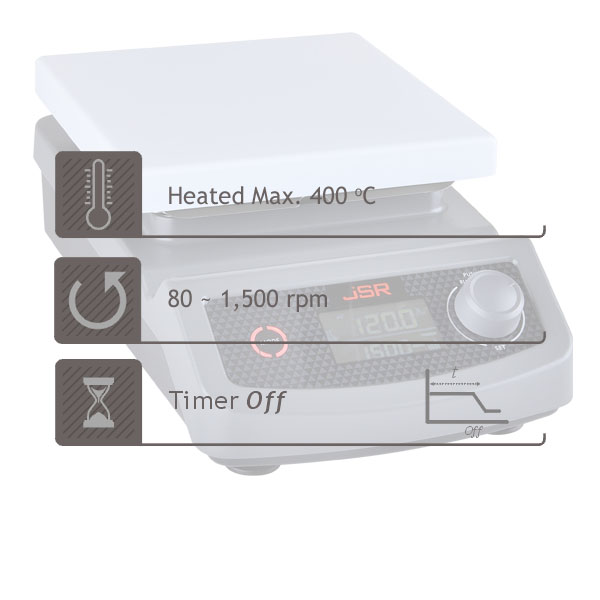

JSHS-18D Digital hotplate Stirrer utilize the most advanced Digital Fuzzy Control technology of temperature, stirring speed and time. Control temperature range max. 400 °C in 0.1 °C display resolution, stirring speed range from 80 to 1,500 rpm, timer set to 99 hr 59 min. Durable and rugged aluminum casting body and chemical resistant ceramic coated top plate.
 |
jshs-18d-eng.pdf |
 |
Features
|
Controller |
|

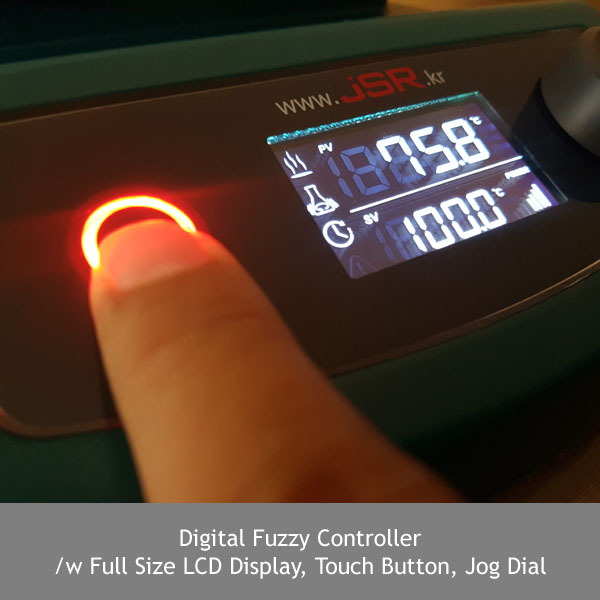

Advanced microprocessor Digital Fuzzy Controller with Touch button and Jog Dial. Accurate temperature and stirring speed display and control Rugged, solid and chemical-proof control panel surface Touch-sensitive Multi-Functional Capacitive Button compatible to all kind of latex gloves as well as finger touch. Easy-to-use Jog Dial for quick and convenient setting of temperature and stirring speed. Push to Run and Stop control. High-fidelity clear back light LCD displays complete setting and operating condition at a glance. Easy to monitoring set values, present temperature, speed and time. Connected to optional External Temperature Probe to directly measure and control sample temperature
|
|
Construction |
|
180 x 180 mm sized durable, chemical and scratch resistant ceramic coated aluminum top plate. Thermal insulation between top plate and body ensure durability and long shelf life Low profile and spill trough design of main body provide safe use and channels spills away from electronics and controls to protect unit. Main body made by aluminum casting with durable epoxy powder coating resistant to most of the chemical and thermal damage Base plate made by engineering plastic provides durability and resistant to chemical and fumes Suction-Cup type Feet provide strong and stable attachment on the table surface
|
|
Performance |
|
Temperature setting from + 25 oC to 400 oC in 0.1 oC display resolution within ±3.0℃ accuracy CA sensor embedded in top plate to measure and control temperature Stirring speed range from 80 to 1,500 rpm in 5 rpm resolution Timer setting range from 1 min to 99 hr 59 min
|
|
Convenience |
|

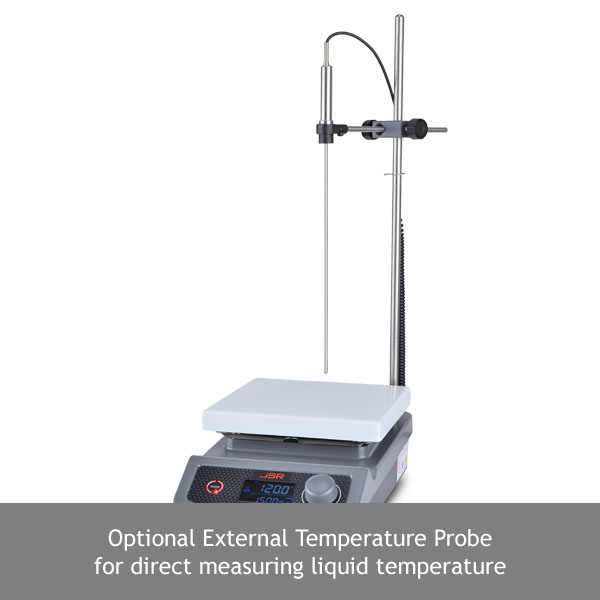

Screw type attachment hole on the body for optional stand rod Optional External Temperature Probe to measure sample temperature directly Optional chemical resistant Teflon Temperature Probe Optional clamp, holder and wire clip sets
|
|
Safety |
|
OVER TEMP. PROTECTION OVER CURRENT CUT-OFF : Fuse
|
Specifications
|
Hotplate Dims. |
: 180 x 180 mm |
|
Temp. Range |
: Max. 400 oC |
|
Temp. Accuracy |
: ± 0.3 oC at 200.0 oC |
|
Stirring Speed |
: 80 ~ 1500 rpm |
|
Speed Resolution |
: 5 rpm |
|
Control |
: Digital Fuzzy Control with Timer |
|
Safety |
: Over-Temperature Cut-Off |
|
|
: Over Current Cut-Off |
|
Material |
: Hotplate – Aluminum /w Ceramic Coating |
|
|
: Body – Aluminum Casting /w Epoxy Powder Coating |
|
Electric |
: 230±10% VAC 50/60Hz 1-Phase |
|
Plug config. |
: CEE 7/7 Schuko |
Models
|
Art. No. |
|
|
Dimension Data |
(W x D x H mm) |
|
Plate Dims. |
180 x 180 mm |
|
Overall Dims. |
180 x 330 x 110 mm |
|
Performance Data |
|
|
Temp. Range |
Max. 400℃ |
|
Accuracy |
±0.3℃ at +200℃ |
|
Resolution (Display) |
0.1℃ |
|
Resolution (Control) |
0.5℃ |
|
|
|
|
Speed Range |
80 ~ 1500 rpm |
|
Stirring Quantity (H2O) |
20 L |
|
Resolution |
5 rpm |
|
Usable Magnetic Bar |
Max. 50 mm in length |
|
Timer |
Max. 99 hr 59 min |
|
|
|
|
Controller |
|
|
|
Digital Fuzzy Control with Capacitive Touch Button and Jog Dial |
|
|
Full Size Digital Back Light LCD Display |
|
|
Independent ON/OFF Switch |
|
|
|
|
Heater and Motor |
|
|
Heating Output |
600 Watt |
|
Temp. Sensor |
CA Type Embedded Sensor |
|
Motor |
Brushless Shade Motor |
|
|
|
|
Safety Data |
|
|
Safety Device |
Over Temp. Cut-Off |
|
|
Over Current Cut-Off |
|
|
|
|
Material Data |
|
|
Top Plate |
Aluminum with ceramic coating |
|
Body |
Aluminum casting with epoxy powder coating |
|
Base |
Engineering Plastic |
|
|
|
|
Electrical Data |
|
|
Rated voltage |
230 ± 10% VAC |
|
Power frequency |
50 / 60Hz |
|
Nominal power |
620 Watt 3.0 amp |
|
Phase |
1 Phase |
|
Plug configuration |
CEE 7/7 Schuko or BS 1363 |
|
|
|
|
Usable Condition |
|
|
Temp. & Humidity |
5oC - 40 oC, < 80% RH |
|
|
|
|
Packaging Data |
|
|
Shipping Dims. (W x D x H mm ) |
280 x 460 x 170 mm |
|
Type of packaging |
Carton |
|
Net Weight |
3.0 kg |
|
Shipping Weight |
3.9 kg |
Ordering Information
|
Art No. |
Descriptions |
Elec. Req. |
Net Wt. |
Ship Wt. |
|
JSHS-18D |
Digital Hotplate Magnetic Stirrer |
230 VAC 50/60 Hz |
3.0 kg |
3.9 kg |
Optional Accessories
|
Art No. |
Descriptions |
|
PHE-01T |

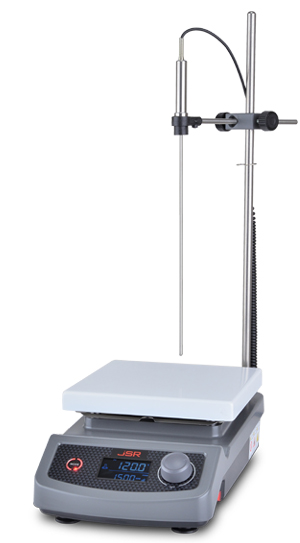

External Temperature Probe, CA, Stainless Steel |
|
PHE-02F |
External Temperature Probe, CA, Teflon |
|
PHA-03S |

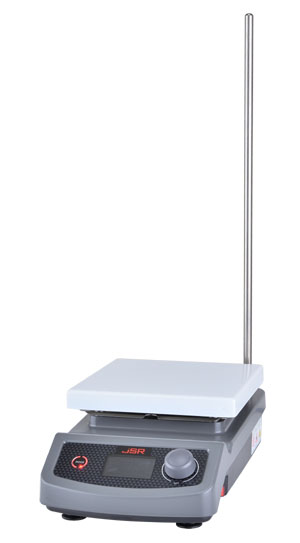

Stand Rod, Stainless Steel |
|
PHA-04H |

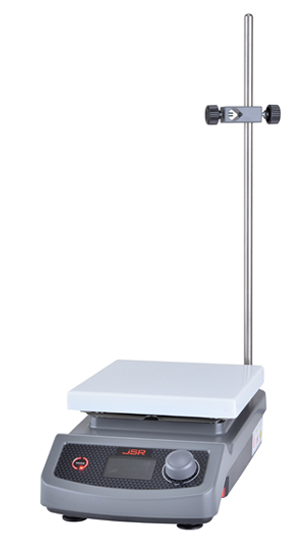

SET of Temperature Probe Holder, Clamp, Wire Clip x 2 ea |
|
|
|
|
|
PHA-03S |
PHA-03S + PHA-04H |
PHA-03S + PHA-04H + PHA-01T |
