Autoclave (오토클레이브 / 고압스팀멸균기)
JSAT-Series Autoclave, Steam Sterilizer is an innovative replacement of conventional laboratory autoclave by providing reliable performance, up-to-dated design and safety door inter-lock system integrated with temperature and pressure for perfect user safety.
 |
download_catalog_autoclave.pdf |
Specifications
|
Temp. Range |
Maximum 123 oC |
|
Accuracy |
± 0.5 oC at 121 oC |
|
Uniformity |
± 2.0 oC at 121 oC |
|
Pressure |
up to 0.12 Mpa |
|
Control |
Fully Automatic Sterilization Process |
|
|
Microprocessor PID Control |
|
|
Auto START / STOP Timer |
|
Sensor |
Class A Pt-100 Ω Sensor |
|
Safety |
Safety Door Lock |
|
|
Over-Temperature Cut-Off |
|
|
Over-Pressure Cut-Off |
|
|
Over Current Cut-Off |
|
Material |
Body - Epoxy Powder Coated Steel |
|
|
Chamber – Stainless Steel 304 |
|
|
Service Basket -Stainless steel 304 wire basket |
|
Electric |
220±10% VAC 50/60Hz 1-Phase |
|
Plug config. |
CEE 7/7 Schuko or BS 1363 or 30 AMP |
Models
|
Art No. |
|||||
|
Chamber Volume |
45 L |
65 L |
85 L |
105 L |
|
|
Dimensions |
Inner |
∅350 x H490 |
∅350 x H680 | ∅450 x H535 | ∅450 x H665 |
|
Dia. x H mm |
Usable |
∅350 x H410 |
∅350 x H620 | ∅450 x H480 | ∅450 x H610 |
|
W x D x H mm |
Outer |
555 x 670 x 955 |
555 x 670 x 1105 |
655 x 780 x 1010 |
655 x 780 x 1110 |
|
|
Basket |
∅330 x H195 |
∅330 x H280 | ∅430 x H220 | ∅430 x H270 |
|
Temperature Range |
Up to 123 oC |
||||
|
Accuracy at 121 oC |
± 0.5 oC |
||||
|
Uniformity at 121 oC |
± 2.0 oC |
||||
|
No. of Service Basket |
2 |
||||
|
Heater Capacity |
2.0 kW |
3.0 kW |
4.0 kW |
5.0 kW |
|
|
Power Rating |
9.2 Amp |
13.7 Amp |
18.2 Amp |
22.8 Amp |
|
|
Electrical Requirements |
220 VAC 50/60Hz 1 Phase |
||||
|
Power Plug |
CEE 7/7 Schuko |
30 AMP |
|||
Features
 |
Fully Automatic Digital Controller
Safety Door Interlocking System
|
|
 |
Light Weight Gas Lifting Door
Durable Silicone Gasket Stainless Steel 304 Door and Top
|
|
 |

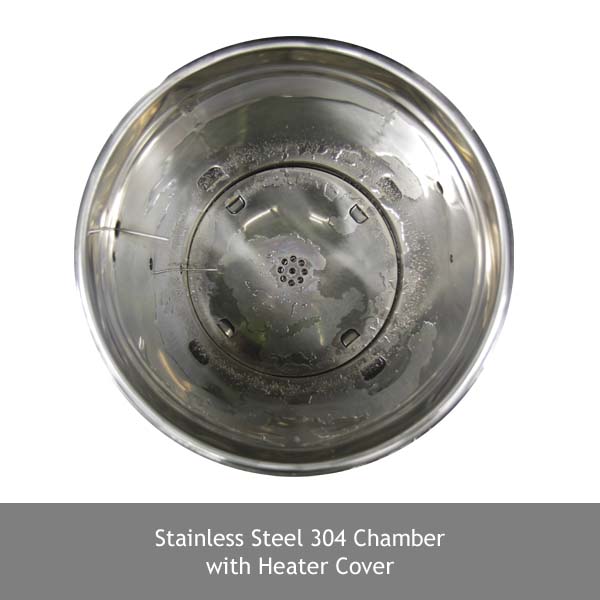

Stainless Steel 304 Chamber Heater Protection Cover
|
|
 |
Steam Collection Bottles
Drain Valve 0.2um Air Filter
|
|
 |
IQ/OQ/PQ Validation Ready
|
|
Controller |
|

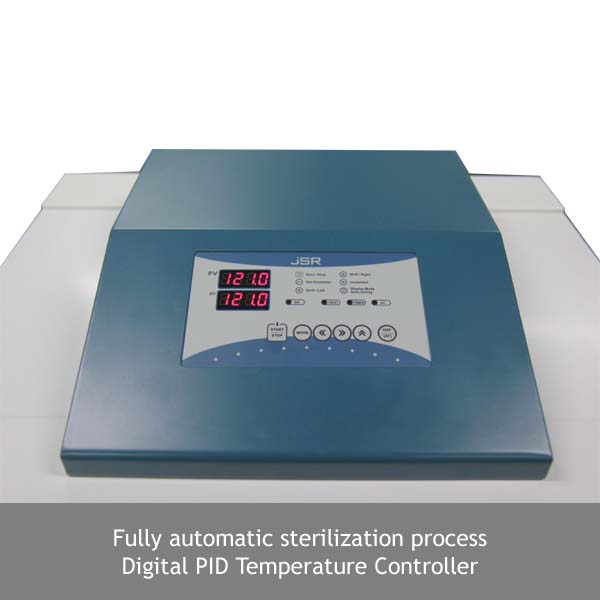

JSC-2D Digital PID Controller ±0.1 oC Digital PID Controller Automatic START/STOP timer Dual LED displays temperature and remaining time Temperature calibration function Auto-tuning function Class A Pt-100 Ω sensor
|
|
Construction |
|

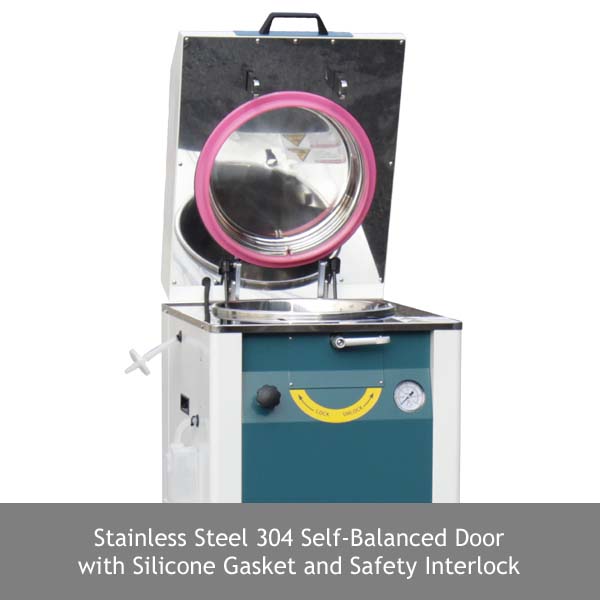

Vertical loading type chamber with 2 ea service baskets Light weight self balanced door SAFETY DOOR INTER-LOCKING SYSTEM lock the door during operation which integrated with temperature, pressure in the chamber and in case electric cut-off Stainless steel 304 (AISI 304) chamber, lid and top plate to protect from corrosion by water and steam Special plated heating element provides resistant to dry-burn, corrosion and guarantee long life in repeated use Two Stainless Steel Wire Basket included
|
|
Performance |
|
Maximum sterilization temperature and pressure up to 123 oC and 0.13 Mpa Automatic sterilization cycle starts just by setting sterilization temperature and time Validation compliance performance with accuracy within ± 0.5 oC and uniformity within ± 2.0 oC
|
|
Convenience |
|
Steam collection bottles removes most of steam generated during operation for comfortable laboratory environment Equipped with drain valve for cleaning and changing with fresh water High pressure and temperature resistant silicone gasket Built-in analog pressure gauge Manual pressure release valve Caster for easy transport
|
|
Safety |
|
SAFETY DOOR LOCK Door interlocking system integrated with high temperature, pressure and electric cut-off TRIPLE OVER-TEMP. CUT-OFF Controller cut-off heater and AUDIO VISUAL ALARMS in case +2oC above set temperature MAX TEMP CUT-OFF heater and AUDIO VISUAL ALARM when +1oC above maximum limit (123oC ) Analog system cut-off heater 10% above set temp. TRIPLE OVER-PRESSURE CUT-OFF Controller open valve to release excess pressure and AUDIO VISUAL ALARM in case +2oC above set temperature Controller open valve to release excess pressure and AUDIO VISUAL ALARM in case +1oC above maximum limit +123oC Mechanical over pressure valve automatically release excess pressure in case over maximum pressure limit 0.15 Mpa ANALOG PRESSURE GAUGE 0 ~ 0.3 Mpa pressure gauge indicating actual pressure MANUAL PRESSURE RELEASE VALVE for emergency OVER CURRENT CUT-OFF : Electrical Leakage Breaker
|
Ordering Information
|
Art No. |
Descriptions |
Elec. Req. |
Capacity |
Net Wt. |
Ship Wt. |
|
JSAT-45 |
Autoclave |
220 VAC 50/60 Hz 1P |
45 L |
80 kg |
105 kg |
|
JSAT-65 |
Autoclave |
220 VAC 50/60 Hz 1P |
65 L |
95 kg |
120 kg |
|
JSAT-85 |
Autoclave |
220 VAC 50/60 Hz 1P |
85 L |
110 kg |
135 kg |
|
JSAT-105 |
Autoclave |
220 VAC 50/60 Hz 1P |
105 L |
125 kg |
150 kg |
|
Optional Accessories |
|
|
Art No. |
Built-in Thermal Printer (available soon) |
|
PER-A08 |
Thermal Printer |
|
|
|
|
Art No. |
Stainless Steel 304 Wire Basket |
|
PHG-A05 |
for JSAT-45, JSAT-65, ø350 mm |
|
PHG-A06 |
for JSAT-85, JSAT-105, ø450 mm |
