Controller

Advanced MCU processor applies precise speed control technology

6 Preset Programs

10 Steps for each program

Touch-sensitive Multi-Functional Capacitive Button compatible to all kind of latex gloves as well as finger touch.

Easy-to-use Jog Dial for quick and convenient setting of speed and timer. Push to Run and Stop control.

High-fidelity clear back light LCD displays complete setting and operating condition at a glance.

Easy to monitoring set values, present speed and time.

Performance

Speed range 10 to 70 rpm

9^o Tilt Angle

Digital Timer set up to 99hr 59min by 1 min

W350 x D350 mm standard shaking platform

Powerful driving mechanism with “Slow Start Function”

Silent BLDC motor provides long shelf life and maintenance free

Maximum loading capacity up to 10 kgs

Construction

Silent BLDC motor

Rugged and low profile ABS plastic body

Light weighted aluminum shaking platform

Convenience

Interchangeable shaking platform

Anti-Slip Silicone Mat

Safety

-Over load protection

-Over current protection

Type of Shaking

: 3D Orbital

Platform Dimensions (WxD)

: 350 x 350 mm

Speed Range

: 10 to 70 rpm, 1 rpm resolution

Orbital Stroke

: 9^o Tilt Angel

Controller

: Digital Fuzzy Control with Capacitive Touch Button and Jog Dial

: 99hr 59min by 1 min resolution

: Full Size Digital Back Light LCD Display

: Independent ON/OFF Switch

: 6 Preset Programs, 10 Steps for each program

Motor

: Brushless DC Motor

Safety Device

: Over Load Protection

: Over Current Protection

Material

: ABS Plastic body

Electric

: 230±10% VAC 50/60 Hz 1-Phase

Plug config.

: CEE 7/7 Schuko or BS 1363

Art. No.

JSSK-3D

Performance Data

Type of Shaking

3D Orbital

Platform Dimensions (W x D mm)

350 x 350

Speed Range

10 to 70 rpm, 1 rpm resolution

Shaking Angle

9^o Tilt Angle

Max Load

10 kgs

Controller

Type

Digital Fuzzy Control with Capacitive Touch Button and Jog Dial

Timer

99hr 59min by 1 min resolution

Display

Full Size Digital Back Light LCD Display

Independent ON/OFF Switch

Program Function

6 Preset Programs, 10 Steps for each program

Platform Dimensions

Universal Spring Rack

W350 x D350 mm

Universal Silicone Mat Platform

W350 x D350 mm

Motor

Type

Brushless DC Motor

Power

45 Watt

Rotating Direction

Clockwise

Safety Data

Safety Device

Over Load Protection

Over Current Protection

Material Data

Body

ABS

Platform

Aluminum

Rated voltage

230 ± 10% VAC

Power frequency

50/60 Hz

Nominal power

45 Watt

Phase

1 Phase

Plug configuration

CEE 7/7 Schuko or BS 1363

Usable Condition

Temp. & Humidity

5^oC - 40 ^oC, < 80% RH

Packaging Data

Shipping Dims. (W x D x H)

600 x 590 x 320 mm

Type of packaging

Carton

Net Weight

11.5 kg

Shipping Weight

14.5 kg

Art. No.

Descriptions

Voltage

JSSK-3D

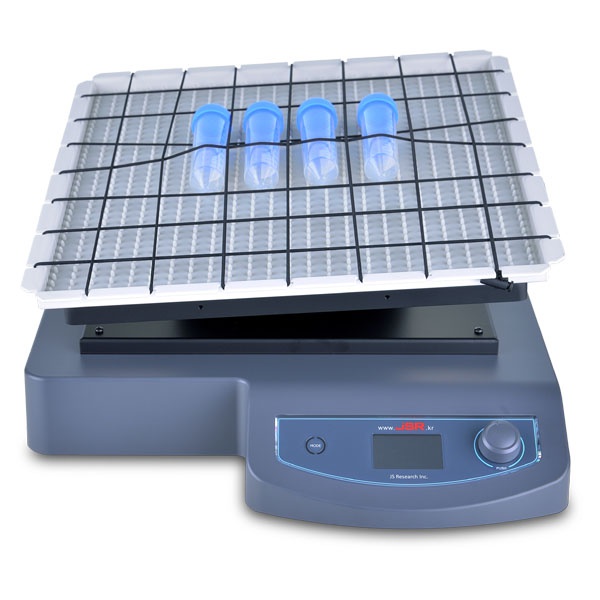

3D Rocker

230 VAC 1 ph 50/60 Hz

 (Rocker supplied without shaking platform and accessories)

Art No.

Descriptions

PHF-P35SET

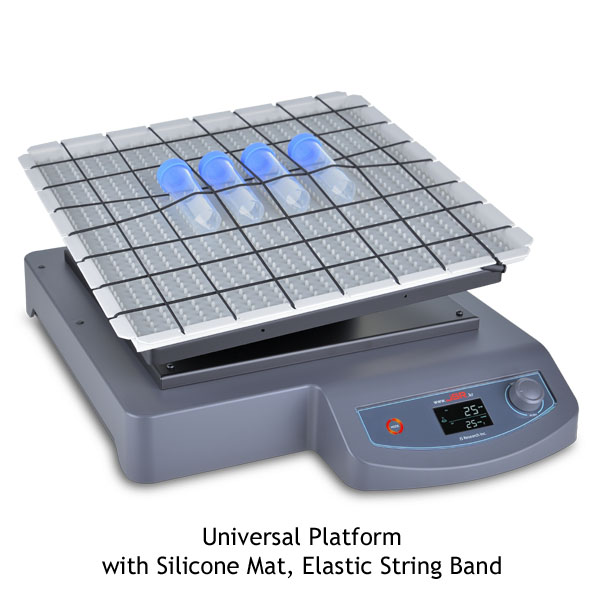

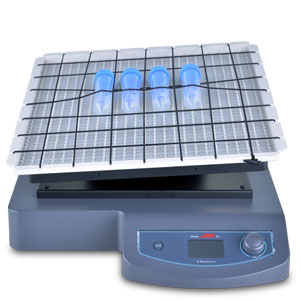

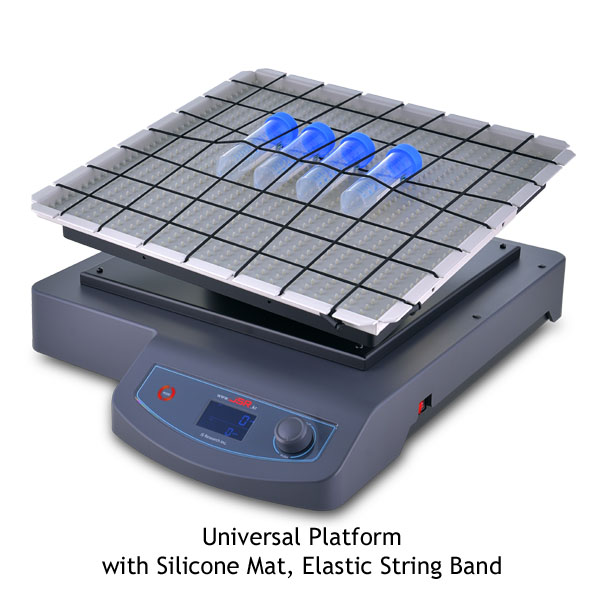

PHF-P35 Universal Flask Holder Platform

PHF-M35 Silicone Mat

PHF-S35 Elastic String Band

PHF-U35

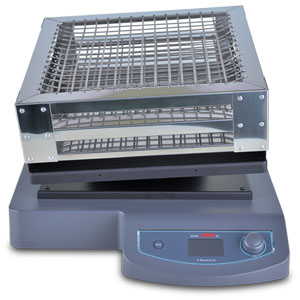

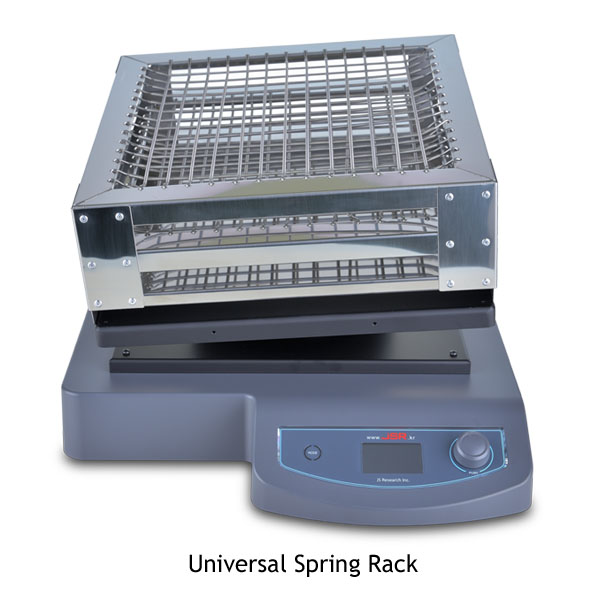

Universal Spring Rack
