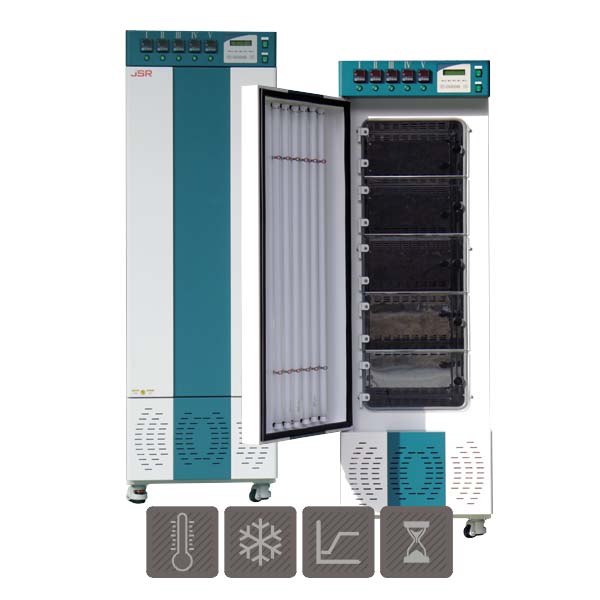

Five x 44L Multi-Room Incubator
Specifications
|
Chamber Config. |
Five chamber with single outer door and five inner doors |
|
|
independent temperature control |
|
Heating |
Forced Air Convection |
|
Cooling |
CFC Free air cooled hermetically sealed compressor |
|
Temp. Range |
+ 5°C ~ 70°C |
|
Accuracy |
± 0.2°C at 20.0°C |
|
Uniformity |
± 0.5°C at 20.0°C |
|
Control |
Microprocessor PID control |
|
|
Photoperiodic Light Control (JSMI-05CL) |
|
Sensor |
Class A Pt-100 Ω Sensor |
|
Safety |
Over-Temperature Cut-Off |
|
|
Over Current Cut-Off |
|
Material |
Body - Epoxy Powder Coated Steel |
|
|
Chamber – Stainless Steel 304 |
|
|
Inner Glass Door : Tempered Safety |
|
|
Shelf -including PVC coated wire shelf |
|
|
optional perforated stainless steel shelf |
|
|
Built-in caster for east transport |
|
Electric |
220±10% VAC 50/60Hz 1-Phase |
|
Plug config. |
CEE 7/7 Schuko or BS 1363 |
Models
|
Art No. |
|||
|
Chamber Volume |
44 L x 5 Chambers / Singel Outer Door / Five Inner Glass Doors |
||
|
Dimensions |
Inner |
400 x 500 x 220 / chamber |
|
|
W x D x H mm |
Outer |
600 x 825 x 1920 |
|
|
Temperature Range |
+ 5°C to 70°C |
||
|
Accuracy at 20.0°C |
± 0.2°C at 20°C (without light) |
||
|
Uniformity at 20.0°C |
± 0.5°C at 20°C (without light) |
||
|
Light Control |
none |
2 x 32 Watt Fluorescent |
|
|
Heater Capacity |
5 x 400 W |
||
|
Refrigeration System |
CFC-Free Air Cooled Hermetically Sealed Compressor |
||
|
Power Rating |
15.0 Amp |
||
|
Power Plug |
CEE 7/7 Schuko European Standard or BS 1363 British Plug |
||

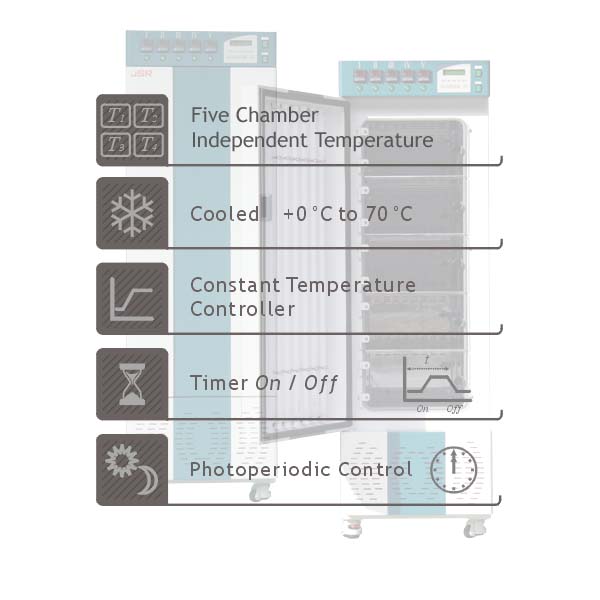

Features
|
JSMI-05C Five Chamber Multi-Room Refrigerated Incubator |
|
±0.1°C Digital PID Controller with LED Display Automatic START/STOP timer Adjustable timer scale 99min 59sec / 99hr 59min / 99day 23hr or continuous operation Temperature calibration Auto-tuning function Class A Pt-100 Ω sensor
|
|
JSMI-05CL Five Chamber Multi-Room Refrigerated Incubator |
|
Same as JSMI-05C with Programmable Photoperiodic Day and Night simulation Light Control with 2 x 32 Watt Fluorescent FPL
|
|
Construction |
|
Durable epoxy powder coated metallic casing Corrosion resistant Stainless Steel 304 chamber with seamless round cornered edge allows easy decontamination and prevents leakage Durable Stainless Steel 304 Sheath Heater and Copper-Aluminum fin evaporator Tempered safety inner glass door for easy observation of samples
|
|
Performance |
|
Forced circulation for excellent thermal accuracy within ±0.2°C Separate heating and cooling compartment prevents contamination and maintenance free Cooling system with hermetically sealed compressor
|
|
Convenience |
|
Outer door with self adhesive magnetic packing Inner glass door with high density silicone packing and air-tight door lock Stainless Steel 304 Chamber with seamless round cornered edge allows easy decontamination and prevents leakage Adjustable automatic defrost system
|
|
Safety |
|
DUAL OVER TEMP. CUT-OFF Digital system cut-off heater and AUDIO VISUAL ALARM in case +2°C above set temperature Analog system cut-off heater 10% above set temp. MAX TEMP CUT-OFF heater and AUDIO VISUAL ALARM when +1°C above maximum limit OVER COOLING. CUT-OFF Digital system automatically cut-off compressor in case -3°C below set temperature SENSOR DISCONNECTION ALARM OVER CURRENT CUT-OFF : Electric Leakage Breaker
|
Ordering Information
|
Art No. |
Descriptions |
Elec. Req. |
Capacity |
Net Wt. |
Ship Wt. |
|
JSMI-05C |
Multi-Room Refrigerated Incubator |
220 VAC 50/60 Hz |
5 x 44 L |
- |
- |
|
JSMI-05CL |
Multi-Room Refrigerated Incubator Photoperiodic Light Control |
220 VAC 50/60 Hz |
5 x 44 L |
- |
- |
