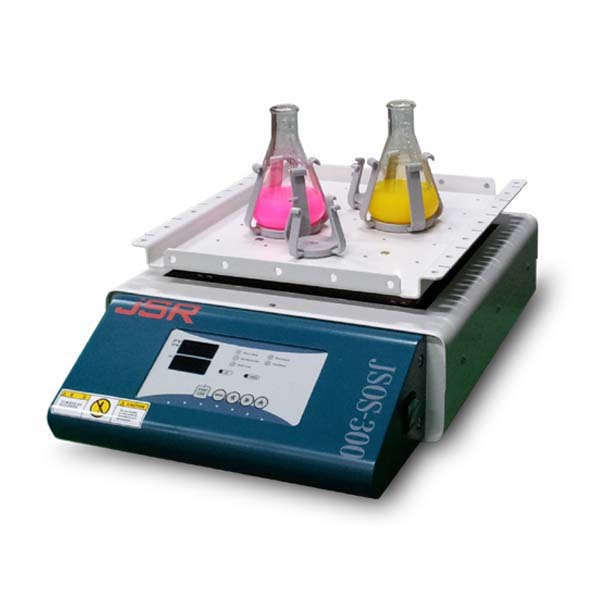

Compact Orbital Shaker (소형 진탕기)
Specifications
|
Shaking Motion |
Orbital |
|
Speed Range |
20 ~ 350 rpm (orbital) |
|
Accuracy |
± 1 rpm |
|
Control |
Microprocessor Feedback Control |
|
|
Auto STOP Timer |
|
Safety |
Over-Speed Cut-Off |
|
Material |
Body - Epoxy Powder Coated Steel |
|
|
Flask Platform – Epoxy Powder Coated Steel |
|
Electric |
220±10% VAC 50/60Hz 1-Phase |
|
Plug config. |
CEE 7/7 Schuko or BS 1363 |
Model
|
Art No. |
||
|
Dimensions |
Platform |
W275 x D345 mm |
|
|
Oversized Platform |
none |
|
W x D x H mm |
Outer |
350 x 520 x 165 |
|
|
Max. load |
15 kgs |
|
Shaking |
Motion |
Orbital |
|
|
Speed |
20 ~ 350 rpm |
|
|
Stroke |
20 mm |
|
Motor Capacity |
15 Watt |
|
|
Power Rating |
0.5 Amp |
|
|
Power Plug |
CEE 7/7 Schuko European Standard or BS 1363 British Plug |
|
Features
|
Controller |
|
JSC-TACHO Digital Shaking Controller Digital feedback RPM controller with automatic STOP timer, max. 99min 59sec / 99hr 59min / continuous 4 digit dual digital LED displays RPM and TIME Inbuilt rpm calibration function Adjustable smooth start and stop motion
|
|
Construction |
|
Durable epoxy powder coated metallic casing Corrosion resistant Stainless Steel 304 Universal Spring Rack
|
|
Performance |
|
Speed control from 20 to 350 rpm Precise feedback control within ± 1 rpm Durable shaking mechanism with powerful AC motor supports orbital shaking motion maximum load up to 15 kgs
|
|
Convenience |
|
Height adjustable level feet for balancing, anti-vibration Various choice of shaking platforms - Universal Flask Holder Platform - Dedicated Flask Holder Platform - Non slip Rubber Mat - Size adjustable poly-carbonate flask holder - Stainless steel flask holder - Test Tube Rack
|
|
Safety |
|
MAX RPM Cut-Off motor and AUDIO VISUAL ALARM Motor failure ALARM OVER CURRENT CUT-OFF : Electric Leakage Breaker
|
Ordering Information
|
Art No. |
Descriptions |
Platform Size |
Elec. Req. |
Net Wt. |
Ship Wt. |
|
JSOS-300 |
Orbital Shaker |
W275 x D345 mm |
220 VAC 50/60 Hz |
18 kg |
20 kg |
|
(Orbital Shaker supplied without shaking platform and accessories) |
|||||

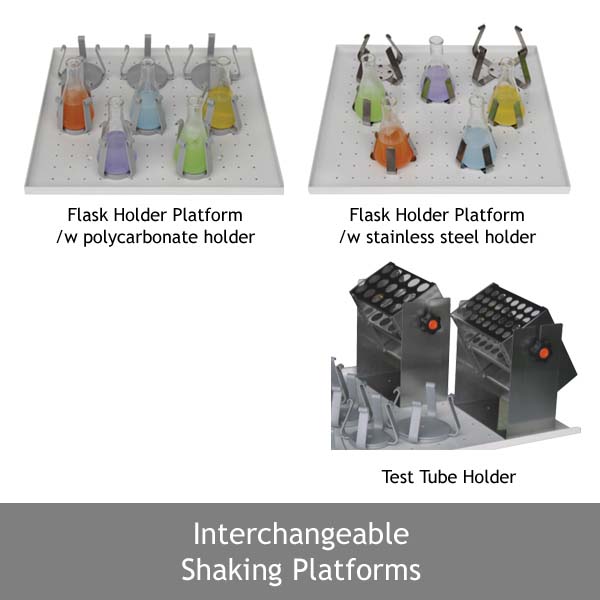

Optional Accessories
|
Art No. |
|
PHF-P30 |

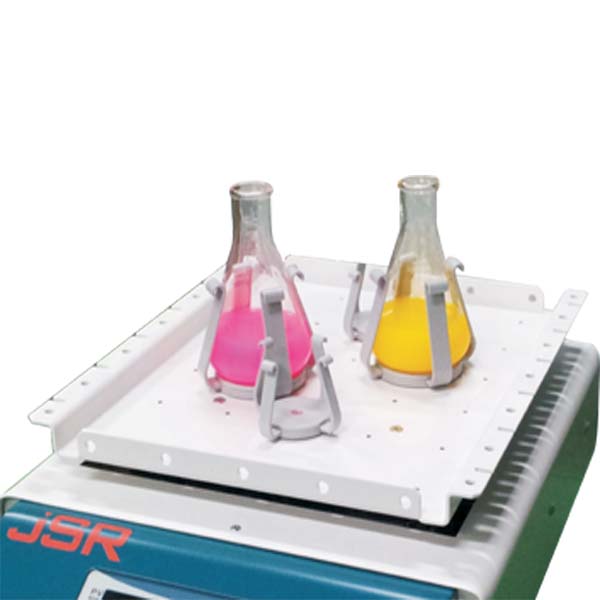

Universal Flask Platform W275 x D345 mm |
|
|
|
|
supplied without flask holders Flask loading capacity (approx) 100 ml 8 ea 250 ml 6 ea 500 ml 5 ea 1000 ml 3 ea 2000 ml 2 ea |
|
Art No. |
|
PHF-M30 |
Non-Slip Rubber Mat W275 x D345 mm |
|
|
|
|
|
|
|
|
Art No. |
Polycarbonate Flask Holder (Size Adjustable) |
|
|
|
PHF-P01 |
50 ~ 100 ml |
|
PHF-P02 |
200 ~ 300 ml |
||
|
PHF-P03 |
500 ~ 1000 ml |
||
|
|
|
||
|
|
|
||
|
|
|
||
|
|
|
||
|
|
|
Art No. |
Stainless Steel Flask Holder (Size Adjustable) |
|
|
|
PHF-S01 |
100 ml |
|
PHF-S02 |
250 ml |
||
|
PHF-S03 |
500 ml |
||
|
PHF-S04 |
1000 ml |
||
|
PHF-S05 |
2000 ml |
||
|
PHF-S06 |
3000 ml |
||
|
PHF-S07 |
5000 ml |
||
|
|
|
Art No. |
Test Tube Holder |
|
|
|
PHF-T01 |
8 mm Dia. for 80 test tubes |
|
PHF-T02 |
10 mm Dia. for 80 test tubes |
||
|
PHF-T03 |
12 mm Dia. for 54 test tubes |
||
|
PHF-T04 |
14 mm Dia. for 54 test tubes |
||
|
PHF-T05 |
16 mm Dia. for 30 test tubes |
||
|
PHF-T06 |
25 mm Dia. for 15 test tubes |
||
|
PHF-T07 |
35 mm Dia. for 8 test tubes |
Reciprocal Shaker (왕복진탕기)
JSOS-350R 왕복진탕기는 플라스크, 바틀, 시험관 등에 담겨진 시료를 실온의 조건에서 혼합 또는 추출하기 위하여 사용됩니다. 화학, 생명공학, 제약, 농학, 환경 분야의 시료 전처리에 다양하게 사용할 수 있습니다.
Orbital Shaker (회전진탕기)
JSOS-350Q 회전진탕기는 플라스크, 바틀, 시험관 등에 담겨진 시료를 실온의 조건에서 혼합 또는 추출하기 위하여 사용됩니다. 화학, 생명공학, 제약, 농학, 환경 분야의 시료 전처리에 다양하게 사용할 수 있습니다.
Tabletop Orbital Shaker (탁상형 진탕기)
JSOS-500 Orbital Shaker is heavy duty and large capacity shaker for agitating samples in a container (e.g. flasks, bottles, tubes) in ambient condition to aerating, mixing and extracting samples. Various application in chemistry, biomedical, pharmaceutical, cell culture, tissue culture, environmental and agriculture applications.
Compact Orbital Shaker (소형 진탕기)
JSOS-300 Orbital Shaker is compact and practical shaker for agitating samples in a container (e.g. flasks, bottles, tubes) in ambient condition to aerating, mixing and extracting samples. Various application in chemistry, biomedical, pharmaceutical, cell culture, tissue culture, environmental and agriculture applications.
