Dual Chamber Industrial Oven (2-챔버 산업용 건조기)
Specifications
|

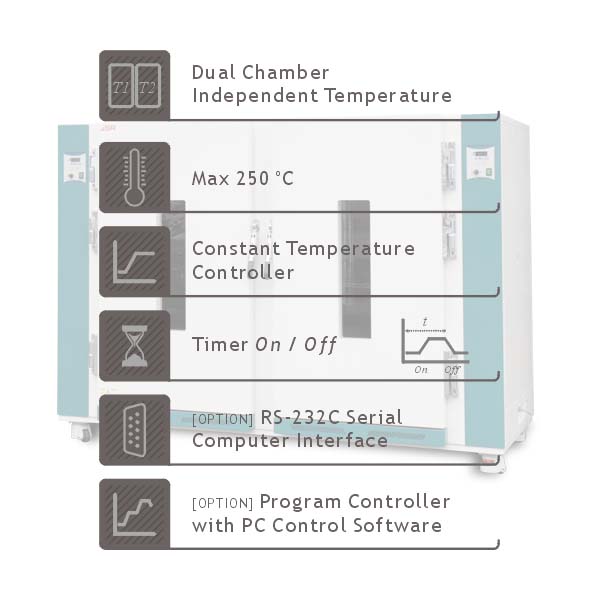

Configuration |
Dual Chamber Independent Temp. Control |
|
Heating |
Forced Air Convection |
|
|
Dual Heating Chamber System |
|
Temp. Range |
ambient + 10°C ~ 250°C |
|
Accuracy |
± 0.3°C at 120°C (JSOF-400W) |
|
Uniformity |
± 2.0°C at 120°C (JSOF-400W) |
|
Control |
Microprocessor PID Control Auto START / STOP Timer |
|
Sensor |
Class A Pt-100 Ω Sensor |
|
Safety |
Over-Temperature Cut-Off |
|
|
Over Current Cut-Off |
|
Material |
Body - Epoxy Powder Coated Steel |
|
|
Chamber – Stainless Steel 304 |
|
|
Insulation – 50mm thick woven mineral wool |
|
|
Floor Standing with Caster |
|
|
Shelf -including stainless steel wire shelf |
|
|
optional perforated stainless steel shelf |
|
Electric |
220±10% VAC 50/60Hz 1-Phase |
|
Plug config. |
CEE 7/7 Schuko or BS 1363 or 30 AMP |
Models
|
Art No. |
|||
|
Chamber Volume |
2 Chamber x 432 L |
2 Chamber x 612 L |
|
|
Dimensions |
Inner |
600 x 600 x 1200 / chamber |
600 x 850 x 1200 / chamber |
|
W x D x H mm |
Outer |
2165 x 775 x 1545 |
2165 x 1025 x 1545 |
|
|
Clearance |
2165 x 775 x 1695 (incl. Damper) |
2165 x 10025 x 1695 (incl. Damper) |
|
|
Window |
W150 x H615 mm |
|
|
Temperature Range |
ambient +10°C to 250°C |
||
|
Accuracy at 120°C |
± 0.3°C |
± 0.3°C |
|
|
Uniformity at 120°C |
± 2.0°C |
± 3.0°C |
|
|
Heat up time to 120°C |
15 min. |
||
|
No. of Shelves / Max. No. |
4 / 22 per chamber |
4 / 22 per chamber |
|
|
No. of Ventilation damper |
1 per chamber |
||
|
Heater Capacity |
4 x 1.5 kW |
4 x 2.0 kW |
|
|
Power Rating |
2 x 13.9 Amp per chamber |
2 x 18.5 Amp per chamber |
|
|
Power Plug |
2 x CEE 7/7 Schuko |
2 x 30 AMP |
|
Features
| Construction | Chamber | Dual Heating Compartment | ||
 |
 |
 |
||
| PC Communication | Safety | |||
 |
 |
|
Controller |
|
JSC-0D Digital PID Controller ±0.1°C Digital PID Controller with LED Display Automatic START/STOP timer Adjustable timer scale 99min 59sec / 99hr 59min / 99 day 23hr or continuous operation Temperature calibration Auto-tuning function Class A Pt-100 Ω sensor
|
|
Construction |
|

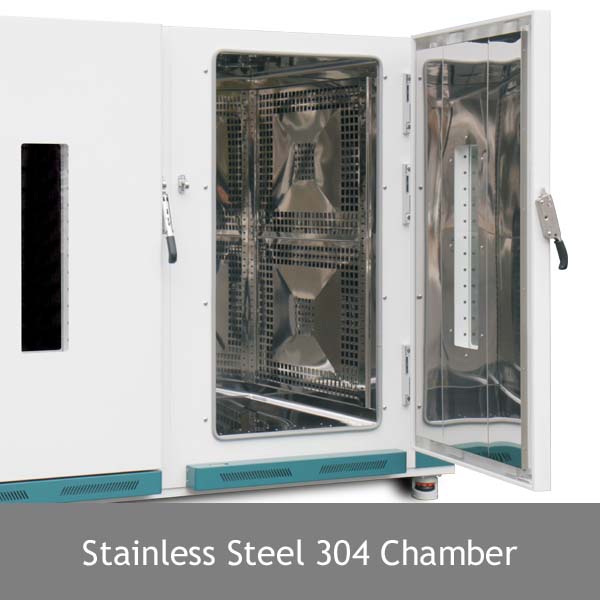

Durable epoxy powder coated metallic casing Ventilation damper Corrosion resistant Stainless Steel 304 chamber with seamless round cornered edge allows easy cleaning and prevent leakage Double layered glass window for easy observation of samples
|
|
Performance |
|

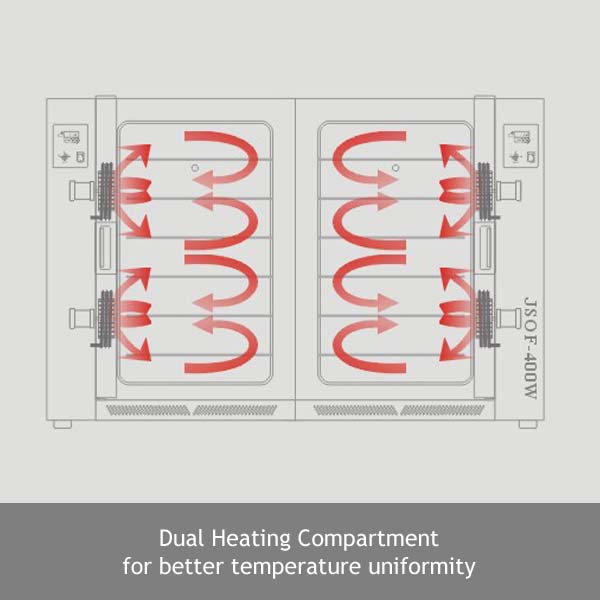

DUAL heating system located on upper and lower compartment with two separate heating elements and blowers provide better air circulation throughout the chamber to achieve excellent temperature uniformity and faster heat up time Separate heating compartment located on side wall prevent contamination and maintenance free 50mm thick high thermal efficiency mineral wool with woven aluminum barrier sheet saves energy and less dust
|
|
Convenience |
|
Floor standing large capacity independent temperature control dual chamber oven provides more throughput and productivity of sample treatment Double layered tempered safety glass window for easy observation of samples under testing Stainless Steel 304 Chamber with seamless round cornered edge allows easy cleaning and prevents leakage Removable and height adjustable shelf by 25mm spacing Outer door with silicone gasket and compression door lock Opening size adjustable ventilation damper Non-contact door switch cut-off heater and blower Caster for easy transport
|
|
Safety |
|
DUAL OVER TEMP. CUT-OFF Digital system cut-off heater and AUDIO VISUAL ALARM in case +2°C above set temperature Analog system cut-off heater 10% above set temp. MAX TEMP CUT-OFF heater and AUDIO VISUAL ALARM when +1°C above maximum limit DOOR SENSOR : Non-contact magnetic door switch cut-off heater and/or blower when door opened SENSOR DISCONNECTION ALARM OVER CURRENT CUT-OFF : Electrical Leakage Breaker
|
Ordering Information
|
Art No. |
Descriptions |
Elec. Req. |
Capacity |
Net Wt. |
Ship Wt. |
|
JSOF-400W |
Dual Chamber Oven |
220 VAC 50/60 Hz |
2 x 432 L |
280 kg |
350 kg |
|
JSOF-600W |
Dual Chamber Oven |
220 VAC 50/60 Hz |
2 x 612 L |
330 kg |
460 kg |
Optional Controller
|
Art No. |
Descriptions |
|
OEC-001 |
JSC-1D Digital PID Controller /w RS-232C Interface, PC Software |
|
|
±0.1°C Digital PID Controller with LED Display Automatic START/STOP timer Adjustable timer scale 99min 59sec / 99hr 59min / 99 day 23hr or continuous Temperature calibration Auto-tuning function Class A Pt-100 Ω sensor RS-232C Interface with PC Software
|
|

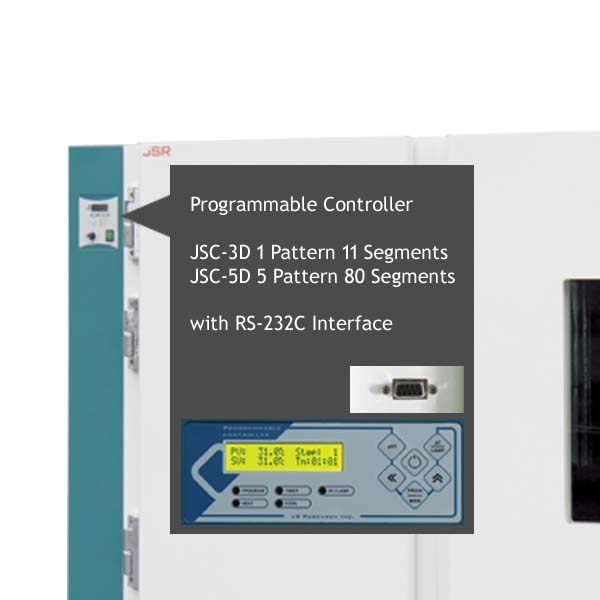

OEC-003 |
JSC-3D Programmable Controller 1 Pattern 11 Segments /w RS-232C Interface, PC Software |
|
|
16-bit Microprocessor ±0.1°C Digital PID Controller 2-Line Back-Light LCD Display Constant Temperature Mode / Program Mode 1 Pattern 11 Segments 999 times or unlimited repeat. Segment skip function Automatic STOP timer Adjustable timer scale 99min 59sec / 99hr 59min or continuous Temperature calibration Auto-tuning function Class A Pt-100 Ω sensor RS-232C Interface with PC Software
|
|
OEC-005 |
JSC-5D Programmable Controller 5 Patterns 80 Segments |
|
|
16-bit Microprocessor ±0.1°C Digital PID Controller 2-Line Back-Light LCD Display Constant Temperature Mode / Program Mode 5 Pattern 80 Segments 999 times or unlimited repeat. Segment skip and pattern link function Automatic STOP timer Adjustable timer scale 99min 59sec / 99hr 59min or continuous Temperature calibration Auto-tuning function Class A Pt-100 Ω sensor RS-232C Interface with PC Software
|
|
|

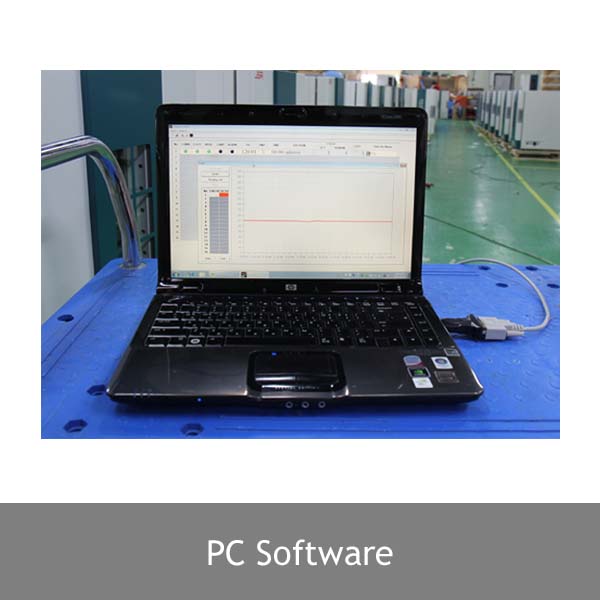

PC Software |
|
|
Turn On and Off control Temperature and Timer Setting Pattern Programming and uploading Current temperature Graph Rendering Temperature Data Logging by 0.01°C resolution Alarm Signal
|
Optional Accessories
|
Art No. |
Perforated Shelf, Stainless Steel 304 |
|
PHS-A09 |
for JSOF-400W W570 x D580 mm |
|
PHS-A10 |
for JSOF-600W W570 x D830 mm |
|
|
|
|
Art No. |
Wire Shelf, Stainless Steel 304 |
|
PHS-B09 |
for JSOF-400W W570 x D580 mm |
|
PHS-B10 |
for JSOF-600W W570 x D830 mm |
|
|
|
|
PHS-A99 |
Shelf Support, Set of 4 |
