Analog Homogenizer

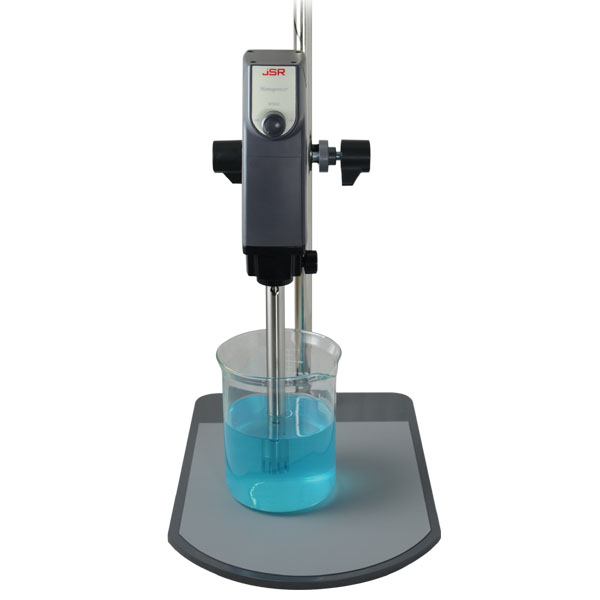

JSHR-270A Analog Tissue Homogenizer can rapidly homogenize, disperse and emulsify samples in 1 ml ~ 2,500 ml of liquid depending on the dispersing tool. During operation suspended material is drawn into the core of the dispersing tool by a rotor turning speed up to 27,000 rpm. The material repeatedly cycle through narrow slits of rotor and stator where it is rapidly sheared and disintegrated by high shear. Homogenizer can be used for disruption of tissue samples in biotechnology (plant or animal tissues such as muscle, liver, ligament), sample preparation in medicine, enzymatic treatment in the food industry as well as various application in pharmaceutical, cosmetic, paint, petro chemical, and other industrial applications.
 |
download-catalog-jshr-270a-analog-homogenizer.pdf |
Specifications
|
Art No. |
|
|
Speed Range |
2,000 ~ 27,000 rpm (w/o load) |
|
Stirring Capacity (H2O) |
2,500 ml |
|
Motor Rating (Input/Output) |
400 / 300 Watt |
|
Speed Control |
Stepless Volume Control |
|
Power Consumption |
400 Watt |
|
Control |
Analog Volume |
|
|
Independent ON/OFF Switch |
|
Usable Dispersing Tool |
Ø 8 mm / Ø 10 mm / Ø 18 mm / Ø 25 mm Stator |
|
Extension Arm |
Ø 12.7 mm x L 250 mm |
|
Safety |
Over Heat Protection |
|
Material |
Aluminum casting and ABS Plastic |
|
Electrical Requirement |
230 ± 10% VAC, 50/60Hz, 1-Phase |
|
Power Plug |
CEE 7/7 Schuko or BS 1363 |
Features
|
Controller |
|

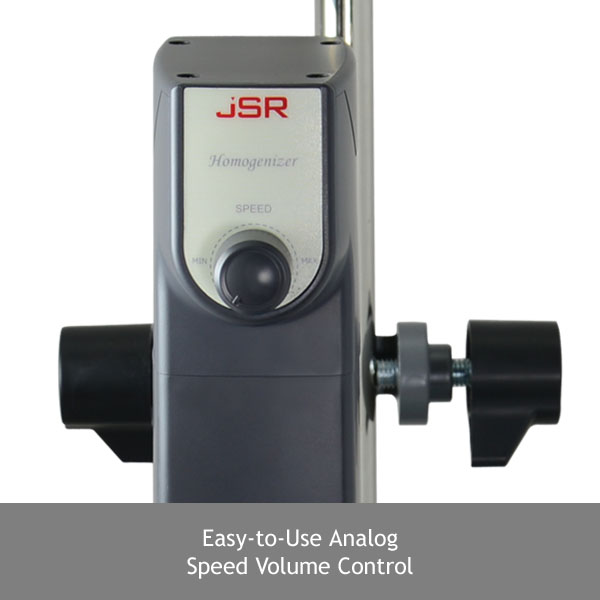

Easy-to-use analog type Stepless Speed Control Rugged, solid and chemical-proof body
|
|
Construction |
|

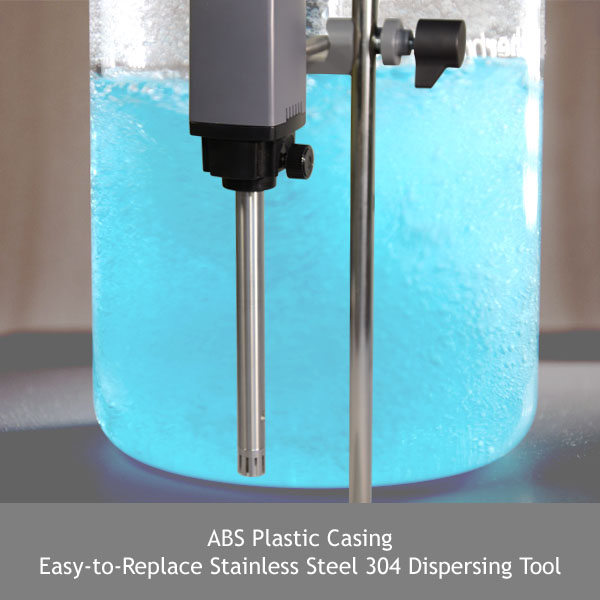

Compact and handy design to fit all applications. Main body made by aluminum casting with durable ABS Plastic. Easy-to-Replace one-touch Dispersing Tool
|
|
Performance |
|
Speed Range Max. 27,000 rpm Stirring Capacity Max. Volume 2,500 ml H2O State of the Art fine fabrication of rotor and stator.
|
|
Safety |
|
OVER HEAT PROTECTION
|
Ordering Information
|
Art No. |
Descriptions |
Speed |
Elec. Req. |
|
JSHR-270A |
Analog Homogenizer |
27,000 rpm |
230 VAC 50/60 Hz |
|
Optional Accessories |
Art No. |
Descriptions |
|
|

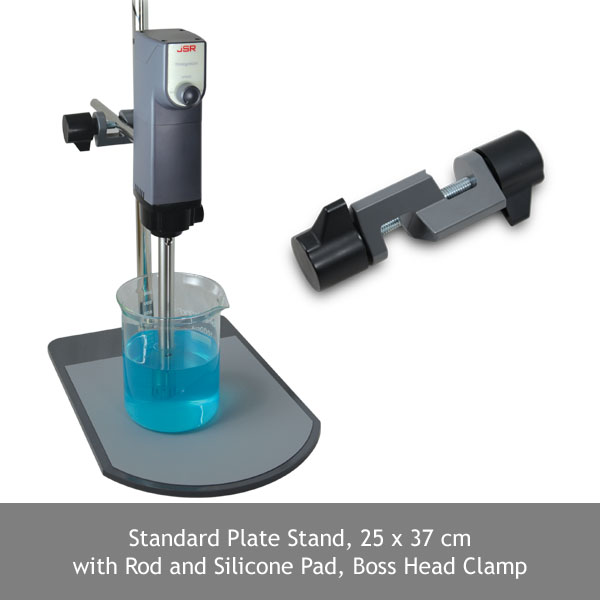

PHA-04S |
Standard Plate Stand 25Ⅹ37Cm Plate with Rod and Silicon Pad |
|
|
|
|
|
|
PHA-05C |
Bosshead Clamp, up to Ø23mm Rod |
|
|
Art No. |
Descriptions |
Rotor Dia. |
Stator Dia. |
Usable Volume |
|
|
PHA-T0608 |
Dispersing Tool |
Ø 6.1 mm |
Ø 8 mm |
1 ~ 50 ml |
|
|
|
|
|
|
|
|
|
PHA-T0710 |
Dispersing Tool |
Ø 7.5 mm |
Ø 10 mm |
1 ~ 100 ml |
|
|
|
|
|
|
|
|
|
PHA-T1218 |
Dispersing Tool |
Ø 12.7 mm |
Ø 18 mm |
10 ~ 1000 ml |
|
|
|
|
|
|
|
|
|
PHA-T1725 |
Dispersing Tool |
Ø 17.0 mm |
Ø 25 mm |
50 ~ 2500 ml |
