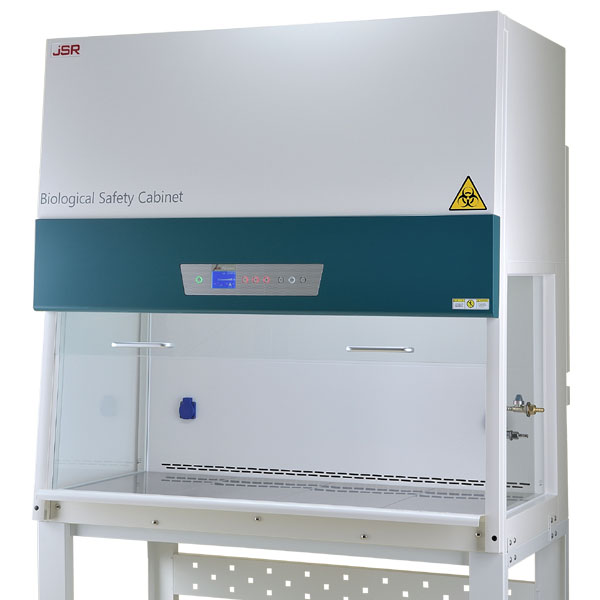

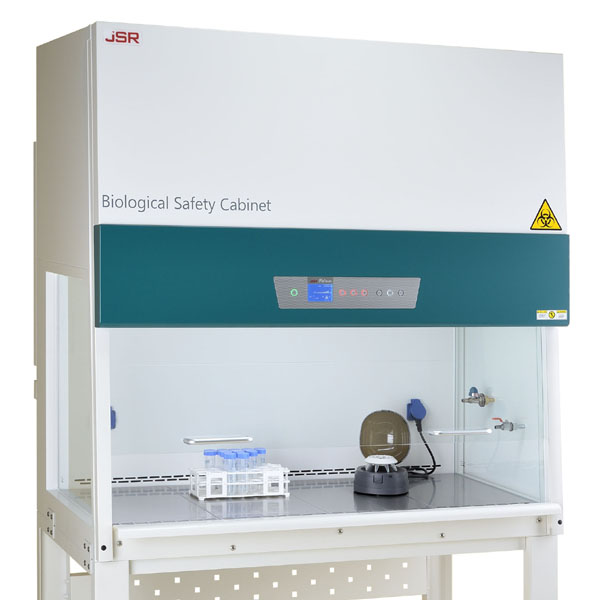

Biological Safety Cabinet Class II Type A2
Cabinet enclosure designed Class II Type A2 provides personnel, product and environment protection from hazardous particles such as bacteria, viruses and genetically manipulated materials such as nucleic acids that require Biosafety Level 1, 2 or 3 containments. Various applications in medical, biomedical, biotechnology, pharmaceutical, cell culture, tissue culture, virology and pathology applications using pathogens, genetic materials, carcinogens, allergens may generates hazardous airborne particles.
 |
jscb-xxxxsb-eng.pdf |
Features
|
Controller |
|
- Integrated Digital microprocessor control system with graphic LCD display - Fan ON/OFF and 10-step adjustable air velocity - LED lamp ON/OFF - UV lamp ON/OFF - Adjustable UV sterilization timer - Elapsed time counter and alarm for HEPA filter replacement
|
|
Construction |
|
- Durable epoxy powder coated metallic casing - Removable Stainless Steel 304 working plate
|
|
Performance |
|
- Biological Safety Level Class II Type A2 design provides a higher level of personnel, product and cross contamination protection by keep filtrate airborne particles from the air stream - Inflow moves from the room air is drawn into the inlet grille at the work access opening and pass through a negative pressure plenum to blower creates HEPA filtered downward laminar air stream over the work area - Approximately 70% of the HEPA-filtered air is re-circulated through the cabinet into the work zone, while 30% passes through an exhaust HEPA filter and is discharged into the laboratory room air - Aluminum Frame Mini-pleated HEPA filters with nominal filtration efficiency of 99.993% ~ 99.995% for airborne particles larger than 0.3 um - Optional ULPA filter had higher filtration efficiency of 99.999% for airborne particles larger than 0.12 um
|
|
Convenience |
|
- Ergonomic arm rest and 3 degree slanted front glass window - Removable working zone plate for easy cleaning and decontamination - Front service access panel for comfortable maintenance - The front door can also be closed fully to keep the cabinet interior clean during non-use period as well as to prevent exposure to UV radiation during sterilization - Epoxy powder coated SPCC exterior for durability - Silent and vibration free blower fan motor for comfortable working environment - LED lamp working light - 253 nm Germicidal UV lamp on working zone - Supplied with Base Stand with caster
|
|
Safety |
|
- UV Lamp CUT-OFF In case of fluorescent lamp turned on - TOTAL USING TIME LOG - HEAP Filter replacement alarm - OVER CURRENT CUT-OFF : Fuse
|
|

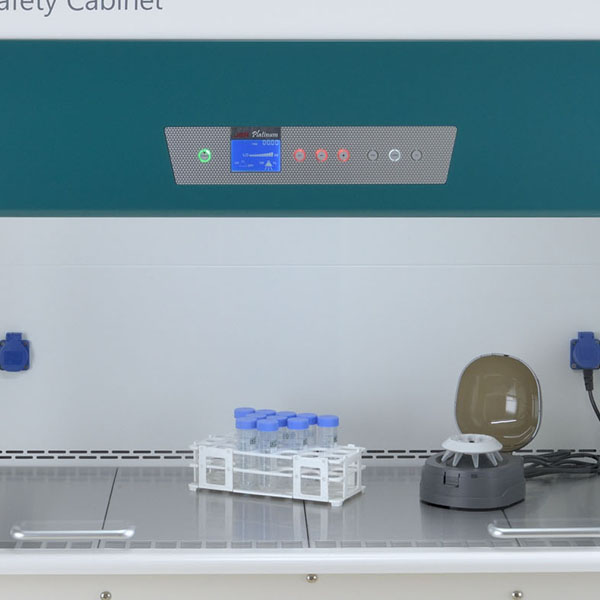

Digital Control |
|
|
|

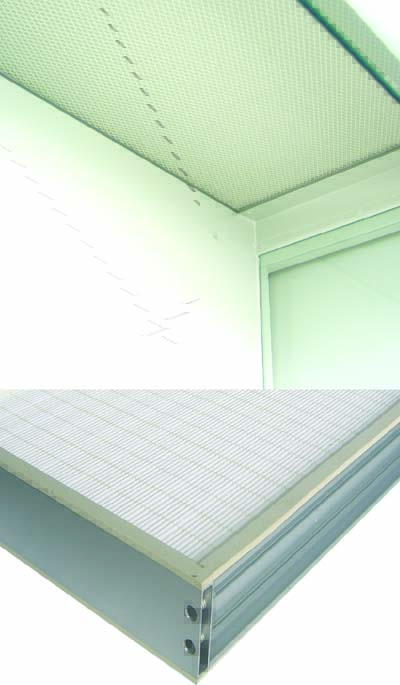

HEPA Filter |

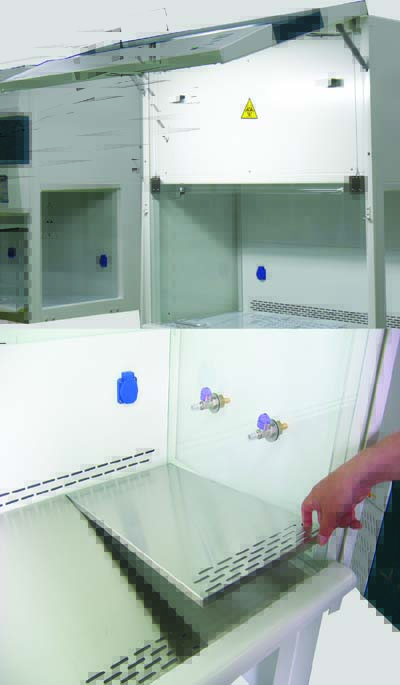

Working Area |

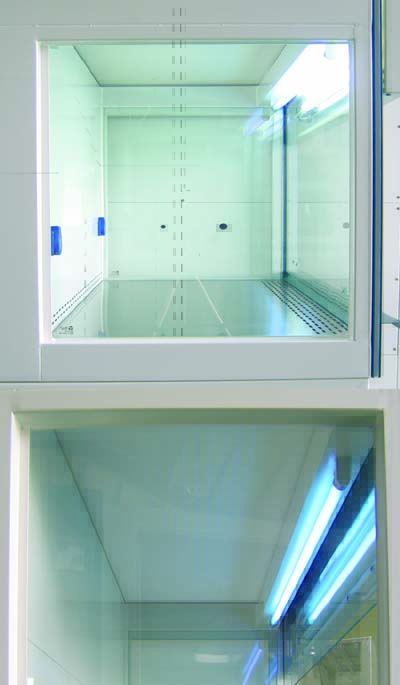

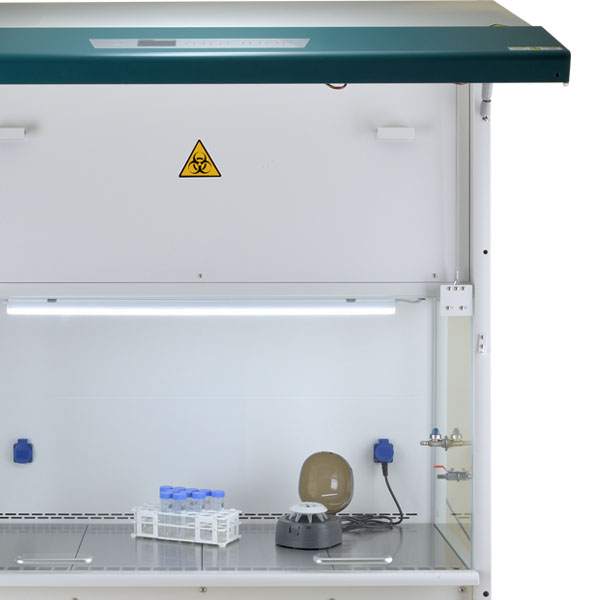

Work Lamp & UV Lamp |

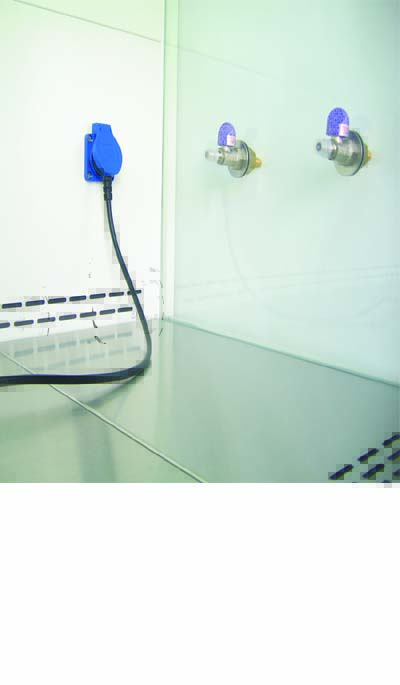

Utility |
|
|
|
|
|
|
Aluminum frame mini-pleated HEPA Filter efficiency 99.993 ~ 99.995% with ceiling mesh guard Optional ULPA Filter efficiency 99.999%
|
Ergonomic arm rest Removable working zone plate for cleaning and decontamination Front service access panel for comfortable maintenance Base stand with caster
|
Long life LED lamp 253nm germicidal UV lamp
|
Tempered safety glass sash door Power receptacle Gas and air supply valve
|
Specifications
|
Class |
Class II Type A2 |
|
Air Flow |
Vertical Laminar Flow |
|
|
70 % Recirculation 30 % Exhaust |
|
Filtration |
Aluminum Frame Mini-Pleated HEPA |
|
|
Optional ULPA Filter |
|
Efficiency |
HEPA : 99.993% for 0.3 um particle removal |
|
|
[OPTION] ULPA : 99.999% for 0.12 um particles removal |
|
Controller |
Microprocessor Control |
|
|
9 Step Air Velocity Control |
|
Material |
Work Platform : Stainless Steel 304 |
|
|
Body : Epoxy Powder Coated Steel |
|
Sterilization |
253nm Germicidal UV Lamp with Timer |
|
Utility |
Power Receptacles |
|
|
Gas and air supply cock |
|
Safety |
Over Current Cut-Off |
|
Electric |
220±10% VAC 50/60Hz 1-Phase |
|
Plug config. |
CEE 7/7 Schuko or BS-1363 |
Models
|
Model |
||||
|
Performance Data |
|
|
|
|
|
Safety Class |
BSC Class II Type A2 |
|||
|
Air flow type |
70% re-circulation / 30% exhaust |
|||
|
Down-Flow |
0.3 m/sec |
|||
|
In-Flow |
0.5 m/sec |
|||
|
Filtration Efficiency |
HEPA filter 99.993~99.995 % for particles > 0.3 um |
|||
|
(Nominal) |
ULPA filter 99.999 % for particles > 0.12 um |
|||
|
Noise Level |
< 65 dB |
|
|
|
|
Work Light |
1510 Lux |
|
|
|
|
Type of Work Light |
LED 11 watt x 2 ea |
LED 15 watt x 2 ea |
LED 20 watt x 2 ea |
LED 20 watt x 2 ea |
|
Germicidal UV Lamp 253.7 nm |
20 Watt |
30 Watt |
30 Watt |
40 Watt |
|
Ultraviolet Output |
7.5 W |
13.4 W |
13.4 W |
19.8 W |
|
|
|
|
|
|
|
Dimension Data |
|
|
|
|
|
Working Width |
830 mm (3 ft) |
1205 mm (4 ft) |
1490 mm (5 ft) |
1790 mm (5 ft) |
|
Int. Dims. (W x D x H mm) |
830 x 550 x 585 |
1205 x 550 x 585 |
1490 x 550 x 585 |
1790 x 550 x 585 |
|
Ext. Dims. (W x D x H mm) w/o stand |
900 x 800 x 1290 |
1275 x 800 x 1290 |
1560 x 800 x 1290 |
1860 x 800 x 1290 |
|
Ext. Dims. (W x D x H mm) /w stand |
900 x 800 x 1970 |
1275 x 800 x 1970 |
1560 x 800 x 1970 |
1860 x 800 x 1970 |
|
|
|
|
|
|
|
Controller |
|
|
|
|
|
|
Digital microprocessor control system with graphic LCD display |
|||
|
|
Soft touch capacitive buttons with light |
|||
|
|
10-step adjustable air velocity control |
|||
|
|
Fan ON/OFF and speed control |
|||
|
|
Working lamp ON/OFF |
|||
|
|
UV lamp ON/OFF |
|||
|
|
Adjustable UV sterilization timer |
|||
|
|
Total time used of HEPA Filter |
|||
|
|
HEPA filter replacement alarm |
|||
|
|
|
|
|
|
|
Safety Data |
|
|
|
|
|
Safety Device |
Over Current Cut-Off |
|||
|
|
Automatic UV Lamp turn off on door open |
|||
|
|
HEPA filter replacement alarm |
|||
|
|
|
|
|
|
|
Material Data |
|
|
|
|
|
Working Plate |
Removable Stainless steel 304 (AISI 304) |
|||
|
Body |
SPCC /w epoxy powder coating |
|||
|
Front sash door |
Tempered safety glass door |
|||
|
|
|
|
|
|
|
Utility & Accessories |
|
|
|
|
|
Working LED Lamp |
11 watt x 2 ea |
15 watt x 2 ea |
20 watt x 2 ea |
20 watt x 2 ea |
|
Germicidal UV lamp |
20 watt |
30 watt |
30 watt |
40 watt |
|
|
Power receptacle for 220 V European cord x 2 ea |
|||
|
|
Gas cock x 2 ea |
|||
|
|
|
|
|
|
|
Electrical Data |
|
|
|
|
|
Rated voltage |
220 ± 10% VAC |
|||
|
Power frequency |
50 / 60Hz |
|||
|
Nominal power |
200 Watt 0.9 amp |
350 Watt 1.6 amp |
350 Watt 1.6 amp |
375 Watt 1.7 amp |
|
Phase |
1 Phase |
|||
|
Plug configuration |
CEE 7/7 Schuko or BS 1363 |
|||
|
|
|
|
|
|
|
Usable Condition |
|
|
|
|
|
Temp. & Humidity |
5oC - 40 oC, < 80% RH |
|||
|
|
|
|
|
|
|
Packaging Data |
|
|
|
|
|
Shipping Dims. (W x D x H mm ) |
950 x 940 x 1650 |
1330 x 940 x 1650 |
1610 x 940 x 1650 |
1940 x 940 x 1650 |
|
Type of packaging |
Carton on a wooden palette |
|||
|
Net Weight |
130.0 kg |
182.0 kg |
200.0 kg |
267.0 kg |
|
Shipping Weight |
180.0 kg |
213.0 kg |
250.0 kg |
290.0 kg |
Ordering Information
|
Art No. |
Descriptions |
Width |
Elec. Req. |
Net Wt. |
Ship Wt. |
|
JSCB-900SB |
BSC Cabinet Class II Type A2 |
830 mm |
220 VAC 50/60 Hz |
130 kg |
180 kg |
|
JSCB-1200SB |
BSC Cabinet Class II Type A2 |
1205 mm |
220 VAC 50/60 Hz |
170 kg |
210 kg |
|
JSCB-1500SB |
BSC Cabinet Class II Type A2 |
1490 mm |
220 VAC 50/60 Hz |
200 kg |
250 kg |
|
JSCB-1800SB |
BSC Cabinet Class II Type A2 |
1790 mm |
220 VAC 50/60 Hz |
230 kg |
290 kg |
Factory Built-in Options
|
Art No. |
ULPA Filter |
|
OHF-U01 |
for JSCB-900SB |
|
OHF-U02 |
for JSCB-1200SB |
|
OHF-U03 |
for JSCB-1500SB |
|
OHF-U04 |
for JSCB-1800SB |
