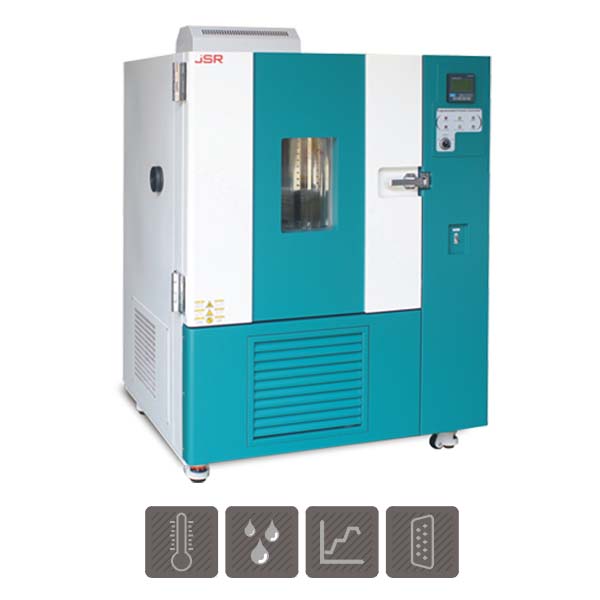

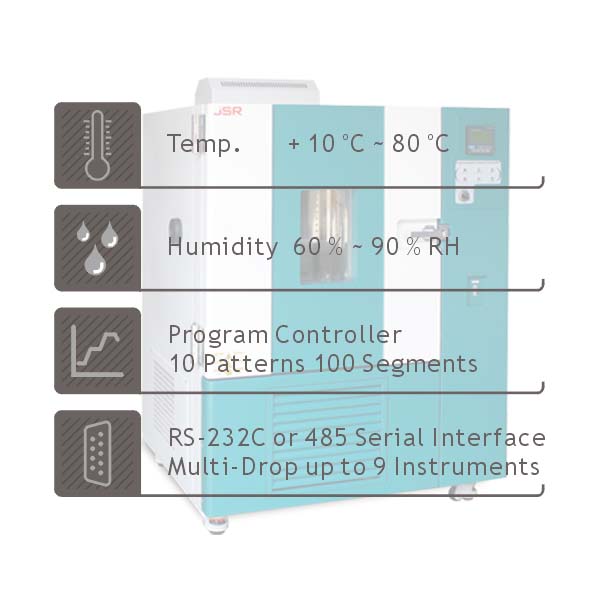

Climatic Chamber +10°C ~ +80°C
JSTH-xxxCP Series Climatic Chamber is practical and economic choice for stability, reliability and acceleration aging test of various parts, components and final products in ambient range of temperature from +10°C to +80°C and humidity from 60 ~ 90% RH.
 |
download_catalog_jsth-xxxcp.pdf |
Specifications
|
Heating |
Forced Air Convection |
|
Cooling |
CFC Free Air Cooled Compressor |
|
Humidifier |
Water Boiling Humidifier |
|
Temp. Range |
+10°C ~ + 80°C (without humidity) |
|
Accuracy |
± 0.3°C at 20.0°C, (JSTH-250) |
|
Uniformity |
± 0.7°C at 20.0°C, (JSTH-250) |
|
Temp. Sensor |
Class A Pt-100 Ω Sensor |
|
Humidity Range |
60 ~ 90% RH |
|
Accuracy |
± 0.4% at 60% RH (JSTH-250) |
|
Uniformity |
± 1.5% at 60% RH (JSTH-250) |
|
Humidity Sensor |
Electronic Sensor |
|
Controller |
JSC-300 Graphic LCD Programmable PID Controller |
|
|
10 Patterns 100 Segments, 999 times repeatable |
|
|
6 Zone PID Group |
|
|
Uploading and downloading data, pattern, parameter setting with PC |
|
|
Control and Data Monitoring PC Software |
|
|
RS-232C or RS-485 Multi-Drop Communication up to 9 instruments and PC Software (OPTION) |
|
Safety |
Over-Temperature Cut-Off |
|
|
Max. Temp. Cut-Off |
|
|
Over Current Cut-Off |
|
|
Low Water Level Cut-Off |
|
Material |
Body : Epoxy Powder Coated Steel |
|
|
Chamber : Stainless Steel 304 |
|
|
Triple Layer Vacuum Glass Window |
|
|
Including Stainless Steel Wire Shelf |
|
Electric |
220±10% VAC 50/60Hz 1-Phase |
|
Plug Config. |
30 AMP or 50AMP |
Models
|
Art No. |
|||||
|
Chamber Volume |
150 L |
252 L |
448 L |
800 L |
|
|
Dimensions |
Inner |
500x500x600 |
600x600x700 |
800x700x800 |
1000x800x1000 |
|
W x D x H mm |
Outer |
1030x905x1505 |
1130x1005x1655 |
1380x1135x1805 |
1530x1235x2035 |
|
Temperature Range |
+ 10°C ~ + 80°C (without Humidification) |
||||
|
Accuracy at 20.0°C |
± 0.2°C |
± 0.3°C |
± 0.3°C |
± 0.4°C |
|
|
Uniformity at 20.0°C |
± 0.7°C |
± 0.7°C |
± 1.0°C |
± 1.2°C |
|
|
Humidity Range |
60% ~ 90% RH |
||||
|
Accuracy at 60% RH |
± 0.3% |
± 0.4% |
± 0.4% |
± 0.8% |
|
|
Uniformity at 60% RH |
± 1.0% |
± 1.5% |
± 1.8% |
± 2.5% |
|
|
Number of shelves/Max. |
2 / 19 |
2 / 23 |
3 / 27 |
3 / 35 |
|
|
Cable Port |
1 ea x ∅50 mm |
||||
|
Humidity Water Supply |
External Supply |
||||
|
Heater Capacity |
4.5 kW |
4.8 kW |
5.5 kW |
6.0 kW |
|
|
Refrigeration System |
CFC-Free Air Cooled Hermetically Sealed Compressor |
||||
|
Electric Requirement |
220VAC 50/60Hz 1P |
||||
|
Power Rating |
24.1 Amp |
25.7 Amp |
29.3 Amp |
32.1 Amp |
|
|
Power Plug |
30 AMP |
30 AMP |
50 AMP |
50 AMP |
|
Features
|

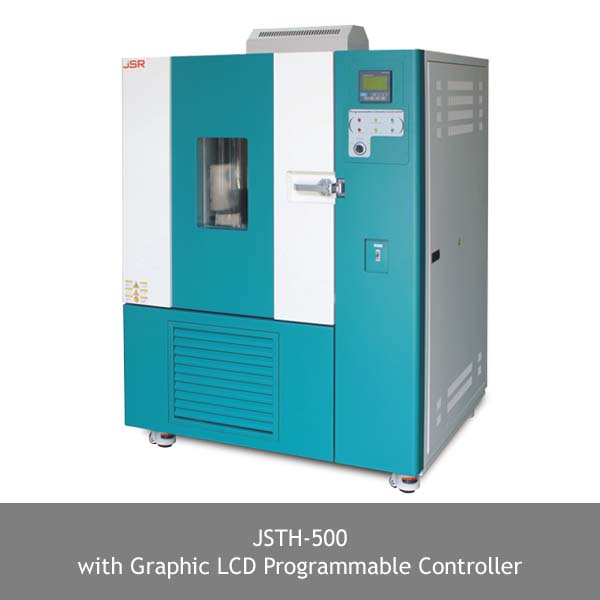

JSC-300 Graphic LCD Programmable Controller |
|
10 Patterns memory 100 Segments 999 times repeatable RS-232C or RS-485 Multi-Drop serial communication up to 9 instruments and PC software (option) Maximum 6 zone PID group for different temperature and humidity range for better control accuracy Temperature calibration and auto-tuning function Class A Pt-100 Ω sensor and electronic humidity sensor
|
|
Construction |
|
Durable epoxy powder coated metallic casing Corrosion resistant Stainless Steel 304 chamber Durable Stainless Steel 304 Sheath Heater and Copper-Aluminum fin evaporator Removable and height adjustable shelf Built-in humidifier and automatic water supply Double layer vacuum tempered safety glass window
|
|
Performance |
|
Ideal for ambient range temperature and humidity test Optimized control system allows long term stability and reliability test at different temperature and humidity condition Forced air circulation of controlled temperature and humidity to achieve excellent thermal uniformity Durable Stainless Steel 304 Sheath Heater and copper-aluminum finned evaporator Temperature control within ± 0.1°C resolution Humidity control within ±1.0% RH resolution Cooling system with hermetically sealed compressor
|
|
Convenience |
|

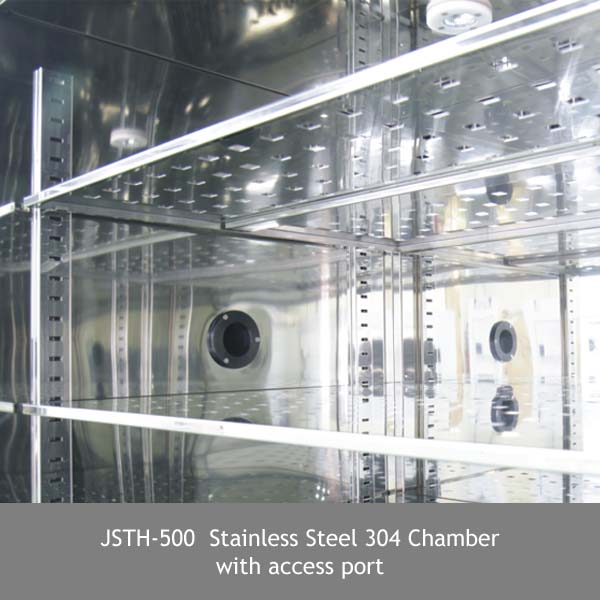

Outer door with double gasket and air tight compression door lock ∅50 mm access port for easy connection of cables into the chamber Triple layer sight glass window Automatic water supply Built-in casters for easy transport
|
|
Safety |
|
DUAL OVER TEMP. CUT-OFF Digital system cut-off heater and AUDIO VISUAL ALARM in case +2°C above set temperature Analog system cut-off heater 10% above set temp. MAX TEMP CUT-OFF heater and AUDIO VISUAL ALARM when +1°C above maximum limit SENSOR DISCONNECTION ALARM LOW WATER LEVEL ALARM AND CUT-OFF HUMIDIFIER DRY-BURN PROTECTION OVER CURRENT CUT-OFF : Electric Leakage Breaker
|
Ordering Information
|
Art No. |
Descriptions |
Elec. Req. |
Capacity |
Net Wt. |
Ship Wt. |
|
JSTH-150CP |
Climatic Chamber |
220 VAC 50/60 Hz |
150 L |
200 kg |
272 kg |
|
JSTH-250CP |
Climatic Chamber |
220 VAC 50/60 Hz |
252 L |
260 kg |
350 kg |
|
JSTH-500CP |
Climatic Chamber |
220 VAC 50/60 Hz |
448 L |
310 kg |
400 kg |
|
JSTH-800CP |
Climatic Chamber |
220 VAC 50/60 Hz |
800 L |
540 kg |
650 kg |
|
|
|||||
|
Factory Built-in Options |
|||||
|
Art No. |
Descriptions |
||||
|
OER-010 |
6-Channel Chart Recorder |
||||
|
|
|
||||
|
Art No. |
Perforated Shelf, Stainless Steel 304 |
||||
|
PHS-A06 |
for JSTH-150 W470 x D480 mm |
||||
|
PHS-A09 |
for JSTH-250 W570 x D580 mm |
||||
|
PHS-A19 |
for JSTH-500 W770 x D680 mm |
||||
|
PHS-A16 |
for JSTH-800 W970 x D780 mm |
||||
