Cold Lab Chamber
Cold Lab Chamber provides the reliability and security essential for the protection of temperature sensitive samples to be stored in +4°C range. Ideal for the demanding requirements of daily laboratory applications such as storage of chemicals, reagents and samples. Complete with adjustable shelves for storage, digital control for temperature setting with low temperature cut-off.
 |
download_catalog_cold_lab_chamber.pdf |
Specifications
|
Cooling |
CFC Free air cooled hermetically sealed compressor |
|
Temp. Range |
+ 0°C ~ 10°C (General operation at + 4°C) |
|
Accuracy |
± 0.2°C at 4.0°C (ON/OFF Control) |
|
Uniformity |
± 2.0°C at 4.0°C (JSSC-1200C) |
|
Control |
Digital Control |
|
Sensor |
Class A Pt-100 Ω Sensor |
|
Safety |
Low Temperature Cut-Off |
|
|
Over Current Cut-Off |
|
Material |
Body - Epoxy Powder Coated Steel |
|
|
Chamber – Stainless Steel 304 |
|
|
Inner Glass Door : Tempered Safety Glass |
|
|
Outer Door Window : Double Layer Tempered Safety Glass |
|
|
Shelf -including PVC coated wire shelf |
|
|
optional perforated stainless steel shelf |
|
|
Built-in caster for east transport |
|
Electric |
220±10% VAC 50/60Hz 1-Phase |
|
Plug config. |
CEE 7/7 Schuko or BS 1363 |
Models
|
Art No. |
|||
|
Chamber Volume |
684 L |
1176 L |
|
|
Dimensions |
Inner |
750 x 730 x 1250 |
1200 x 700 x 1400 |
|
W x D x H mm |
Outer |
920 x 910 x 1980 |
1385 x 880 x 1980 |
|
Temperature Range |
+ 0°C to 10°C (General operation at + 4°C) |
||
|
Accuracy at 4.0°C |
± 2.0°C ON/OFF Control |
||
|
Uniformity at 4.0°C |
± 1.6°C |
± 2.0°C |
|
|
Number of shelves/Max. |
4 / 25 |
8 / 50 |
|
|
Refrigeration System |
CFC-Free Air Cooled Hermetically Sealed Compressor |
||
|
Power Rating |
3.0 Amp |
4.0 Amp |
|
|
Power Plug |
CEE 7/7 Schuko European Standard or BS 1363 British Plug |
||

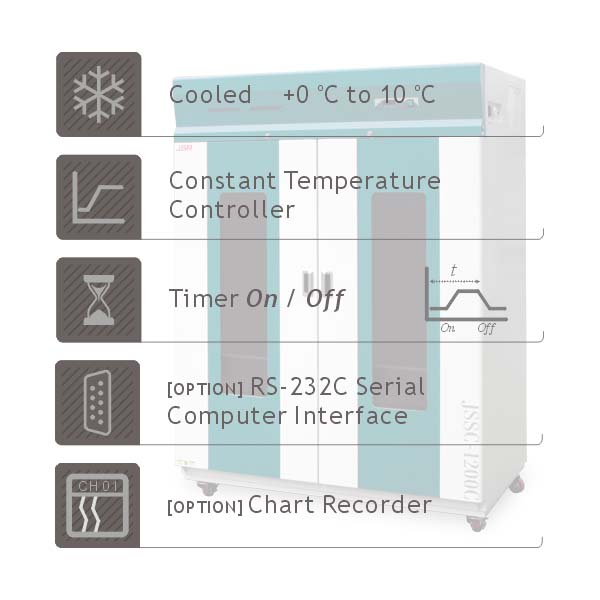

Features
|
Controller |
|
JSC-1D Digital Controller ±0.1°C Digital ON/OFF Control with LED Display Temperature calibration Auto-tuning function Class A Pt-100 Ω sensor RS-232C Communication Interface and Software [OPTION]
|
|
Construction |
|
Durable epoxy powder coated metallic casing Corrosion resistant Stainless Steel 304 chamber Copper-Aluminum fin dual evaporator system Outer door with self adhesive magnetic packing and double layer tempered safety glass window for easy observation of samples Tempered safety inner glass door with high density silicone packing and air-tight door lock
|
|
Performance |
|
Forced circulation for excellent thermal uniformity within ± 2.0°C Cooling system with hermetically sealed compressor Unit cooler system with two separate evaporators system to avoid frost formation and frequent defrost cycle
|
|
Convenience |
|
Removable and height adjustable shelf by 25mm spacing Adjustable automatic defrost system Built-in caster for east transport
|
|
Safety |
|
OVER COOLING CUT-OFF Digital system automatically cut-off compressor in case -3°C below set temperature Analog system cut-off compressor 10% below set temp. SENSOR DISCONNECTION ALARM OVER CURRENT CUT-OFF : Electric Leakage Breaker
|
Ordering Information
|
Art No. |
Descriptions |
Elec. Req. |
Capacity |
Net Wt. |
Ship Wt. |
|

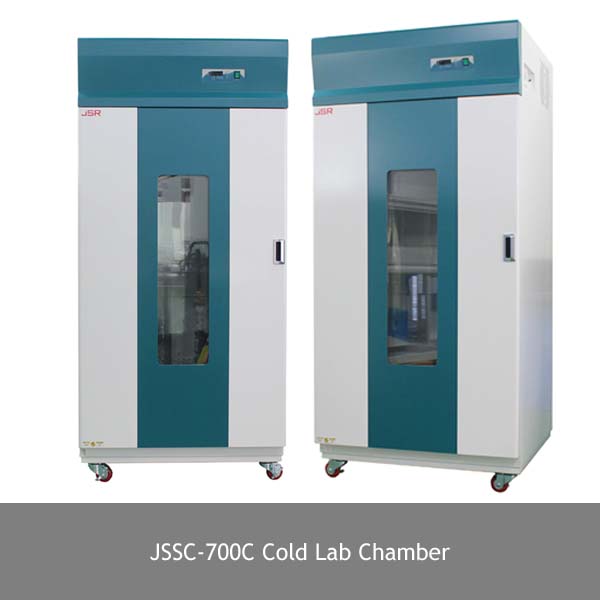

JSSC-700C |
Laboratory Refrigerator |
220 VAC 50/60 Hz |
684 L |
180 kg |
260 kg |
|

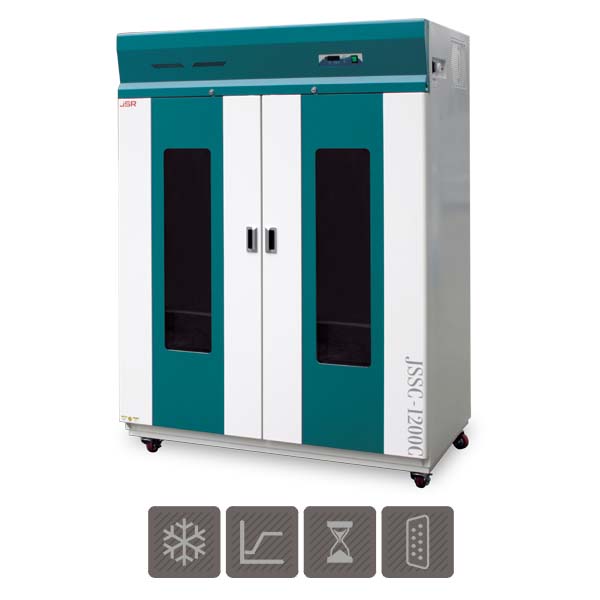

JSSC-1200C |
Laboratory Refrigerator |
220 VAC 50/60 Hz |
1176 L |
260 kg |
370 kg |
Optional Controller
|
Art No. |
Descriptions |
|
OEC-001 |
JSC-1D Digital Controller /w RS-232C Interface, PC Software |
|
|
PC Software |
|
|
Turn On and Off control Temperature and Timer Setting Current temperature Graph Rendering Temperature Data Logging by 0.01°C resolution Alarm Signal |
Optional Accessories
|
Art No. |
Descriptions |
|
OEA-001 |
Power Outlet Consent in Chamber for CEE 7/7 Schuko Plug |
|
OEA-002 |
Power Outlet Consent in Chamber for BS 1363 Plug |
|
OEA-010 |
6-Channel Chart Recorder |
|
OEA-104 |
50 mm Access Port |
|
Art No. |
PVC Coated Wire Shelf |
|
PHS-C16 |
for JSSC-700C W720 x D710 mm |
|
PHS-C17 |
for JSSC-1200C W585 x D630 mm |
|
PHS-A99 |
Shelf Support, Set of 4 |
