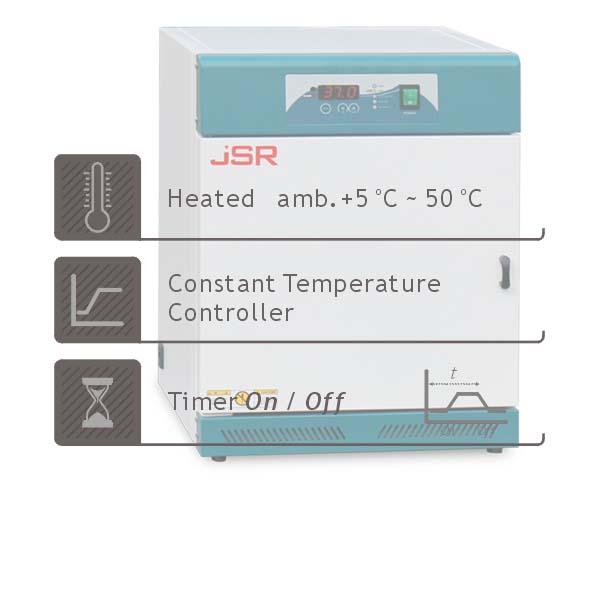

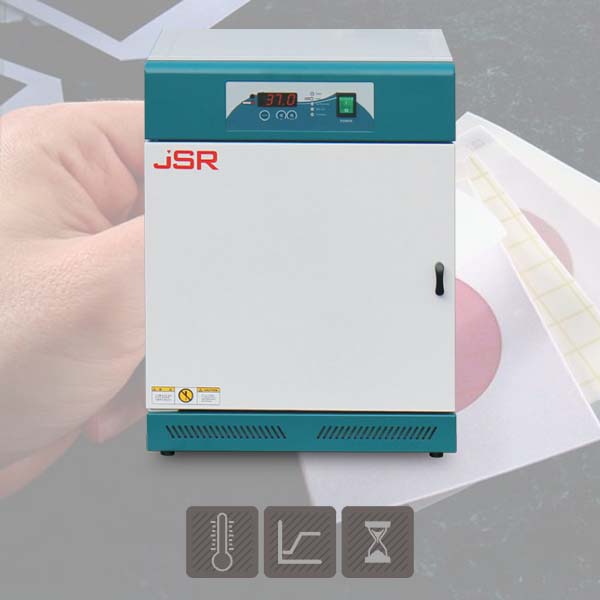

Compact Incubator
JSGI-Series Compact Economic Incubator is suitable for personal, small food laboratory or HACCP Industry doing daily incubation of bacterial screening with Petri-Dish or Petri-Film.
 |
download_catalog_compact_incubator.pdf |
Specifications
|
Heating |
JSGI-10T : Gravity Convection |
|
|
JSGI-30T : Forced Air Convection |
|
Temp. Range |
ambient + 5 oC ~ 50 oC |
|
Accuracy |
± 0.2 oC at 37.0 oC |
|
Uniformity |
± 0.5 oC at 37.0 oC |
|
Control |
Microprocessor PID Control Auto START / STOP Timer |
|
Sensor |
Class A Pt-100 Ω Sensor |
|
Safety |
Over-Temperature Cut-Off |
|
|
Over Current Cut-Off |
|
Material |
Body - Epoxy Powder Coated Steel |
|
|
Chamber – Stainless Steel 304 |
|
|
JSGI-10T without Inner Glass Door |
|
|
JSGI-30T with Tempered Safety Inner Glass Door |
|
|
Shelf -including PVC coated wire shelf |
|
Electric |
220±10% VAC 50/60Hz 1-Phase |
|
Plug config. |
CEE 7/7 Schuko or BS 1363 |
Models
|
Art No. |
|||
|
Chamber Volume (Capacity) |
9.3 L |
31.5 L |
|
|
Dimensions |
Inner |
210 x 210 x 210 |
300 x 300 x 350 |
|
W x D x H mm |
Outer |
315 x 370 x 435 |
425 x 260 x 590 |
|
Temperature Range |
Ambient +5 oC to 50 oC |
||
|
Accuracy at 37.0 oC |
± 0.2 oC |
± 0.2 oC |
|
|
Uniformity at 37.0 oC |
± 0.5 oC |
± 0.5 oC |
|
|
Number of shelves / Max. No. |
2 / 2 |
2 / 2 |
|
|
Heater Capacity |
60 W |
100 W |
|
|
Power Rating |
0.3 Amp |
0.5 Amp |
|
|
Power Plug |
CEE 7/7 Schuko European Standard or BS 1363 British Plug |
||
Features
|
Controller |
|
JSC-0D Digital PID Controller ±0.1 oC Digital PID Controller with LED Display Automatic START/STOP timer Adjustable timer scale 99min 59sec / 99hr 59min / 99day 23hr or continuous operation Temperature calibration Auto-tuning function Class A Pt-100 Ω sensor
|
|
Construction |
|
Durable epoxy powder coated metallic casing Corrosion resistant Stainless Steel 304 chamber with seamless round cornered edge allows easy decontamination and prevent leakage Tempered safety inner glass door for easy observation of samples (JSGI-30T only)
|
|
Performance |
|
JSGI-10T : Mild gravity convection with durable silicone film heater JSGI-30T : Forced Convection with blower maintain better thermal uniformity within ±0.2 oC Separate heating compartment prevents contamination and maintenance free Simple and durable design permits practical usage of bacteria screening such as HACCP laboratory
|
|
Convenience |
|
Outer door with self adhesive magnetic packing Inner glass door with high density silicone packing and air-tight door lock Stainless Steel 304 Chamber with seamless round cornered edge allows easy decontamination and prevents leakage 2 tier removable shelf
|
|
Safety |
|
Digital system cut-off heater and AUDIO VISUAL ALARM in case +2 oC above set temperature MAX TEMP CUT-OFF heater and AUDIO VISUAL ALARM when +1 oC above maximum limit SENSOR DISCONNECTION ALARM OVER CURRENT CUT-OFF : Fuse
|
Ordering Information
|
Art No. |
Descriptions |
Elec. Req. |
Capacity |
Net Wt. |
Ship Wt. |
|
|
JSGI-10T |
Compact Incubator |
220 VAC 50/60 Hz |
9.3 L |
13 kg |
15 kg |
|
|
JSGI-30T |
Compact Incubator |
220 VAC 50/60 Hz |
31.5 L |
16 kg |
18 kg |
|
|
Optional Accessories |
|
|
Art No. |
PVC Coated Wire Shelf |
|
PHS-C01 |
for JSGI-10T W205 x D200 mm |
|
PHS-C02 |
for JSGI-30T W295 x D290 mm |
