Compact Oven

Heating

JSOF-xxxS Forced Air Convection

JSON-xxxS Grativy Air Convection

Temp. Range

ambient + 10°C ~ 250°C

Accuracy

± 0.2°C at 180°C (JSOF-030S)

Uniformity

± 1.0°C at 180°C (JSOF-030S)

Control

Microprocessor PID Control Auto START / STOP Timer

Sensor

Class A Pt-100 Ω Sensor

Safety

Over-Temperature Cut-Off

Over Current Cut-Off

Material

Body - Epoxy Powder Coated Steel

Chamber – Stainless Steel 304

Insulation – 50mm thick woven mineral wool

Shelf -including stainless steel wire shelf

optional perforated stainless steel shelf

Electric

220±10% VAC 50/60Hz 1-Phase

Plug config.

CEE 7/7 Schuko or BS 1363

Art No.

JSOF-030S

JSOF-050S

JSON-030S

JSON-050S

Hot Air Circulation

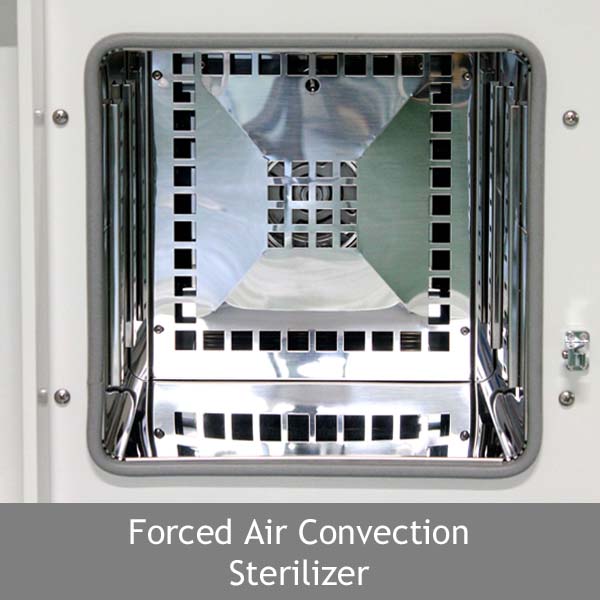

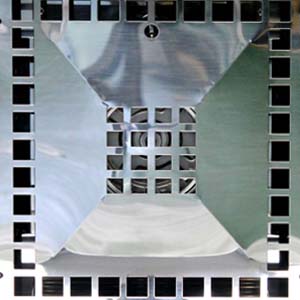

Forced Convection

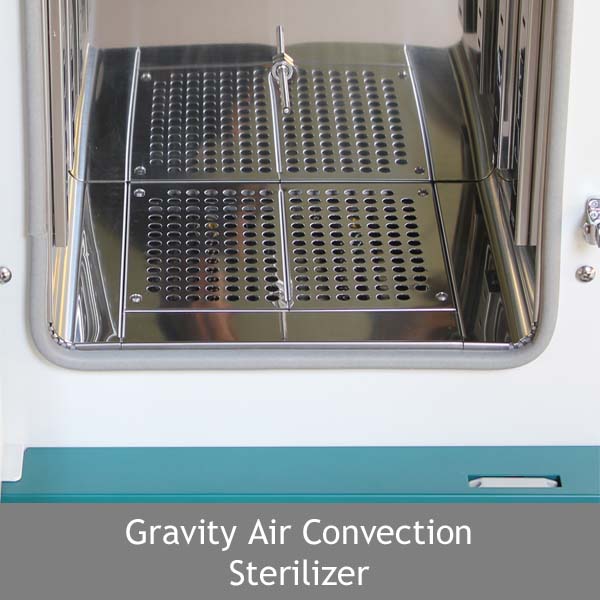

Gravity Convection

Chamber Volume

33 L

48 L

33 L

48 L

Dimensions

Inner

350 x 270 x 350

400 x 300 x 400

350 x 270 x 350

400 x 300 x 400

W x D x H mm

Outer

510 x 570 x 660

560 x 585 x 710

510 x 490 x 660

560 x 505 x 710

Temperature Range

ambient +10°C to 250°C

Accuracy at 180°C

± 0.2°C

± 0.2°C

± 0.3°C

± 0.3°C

Uniformity at 180°C

± 1.0°C

± 1.0°C

± 2.0°C

± 2.0°C

Heat up time to 180°C

15 min.

No. of Shelves / Max. No.

2 / 12

2 / 12

2 / 10

3 / 12

No. of Ventilation damper

1

Heater Capacity

800 W

1.0 kW

800 W

1.2 kW

Power Rating

3.8 Amp

4.7 Amp

3.8 Amp

5.5 Amp

Power Plug

CEE 7/7 Schuko European Standard   or BS 1363 British Plug

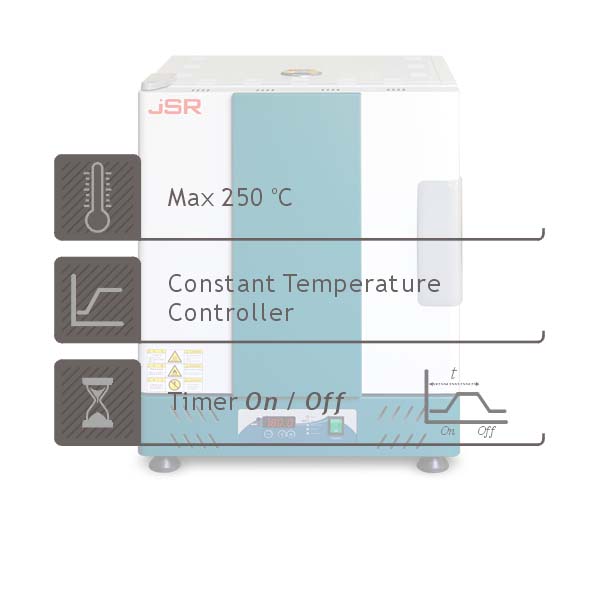

Controller

JSC-0D Digital PID Controller

±0.1°C Digital PID Controller with LED Display

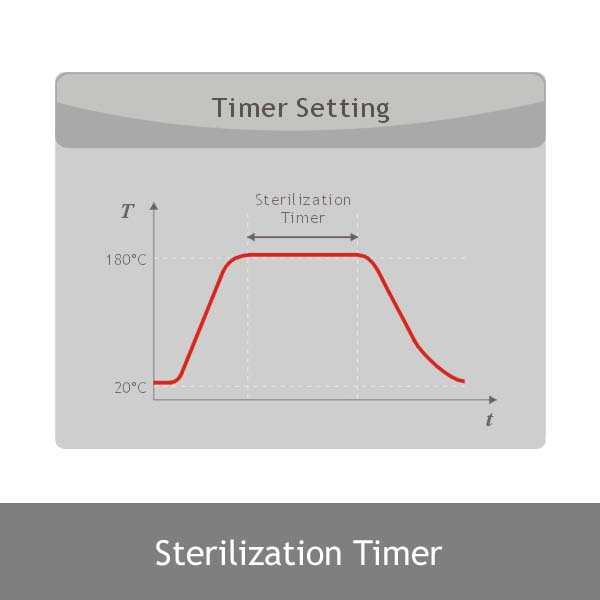

Automatic START/STOP timer

Adjustable timer scale 99min 59sec / 99hr 59min / 99 day 23hr or continuous operation

Temperature calibration

Auto-tuning function

Class A Pt-100 Ω sensor

Construction

Durable epoxy powder coated metallic casing

Ventilation damper

Corrosion resistant Stainless Steel 304 chamber with seamless round cornered edge allows easy cleaning and prevent leakage

Performance

Choice of Forced or Gravity air convection

Separate heating compartment prevents contamination and maintenance free

50mm thick high thermal efficiency mineral wool with woven aluminum barrier sheet saves energy and less dust

Convenience

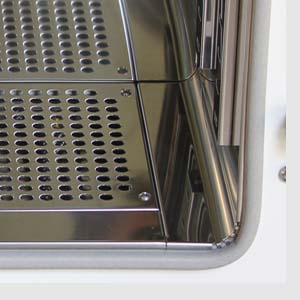

Stainless Steel 304 Chamber with seamless round cornered edge allows easy cleaning and prevents leakage

Removable and height adjustable shelf by 25mm spacing

Easy to open and air-tight one touch door latch

Opening size adjustable ventilation damper

Non-contact door switch cut-off heater and/or blower

Safety

DUAL OVER TEMP. CUT-OFF

    Digital system cut-off heater and AUDIO VISUAL ALARM in case +2°C above set temperature

    Analog system cut-off heater 10% above set temp.

MAX TEMP CUT-OFF heater and AUDIO VISUAL ALARM when +1°C above maximum limit

DOOR SENSOR : Non-contact magnetic door switch cut-off heater and blower when door opened

SENSOR DISCONNECTION ALARM

OVER CURRENT CUT-OFF : Electrical Leakage Breaker

Art No.

Descriptions

Elec. Req.

Capacity

Net Wt.

Ship Wt.

JSOF-030S

Compact Oven Forced Convection

220 VAC 50/60 Hz

33 L

35 kg

41 kg

JSOF-050S

Compact Oven Forced Convection

220 VAC 50/60 Hz

48 L

46 kg

53 kg

JSON-030S

Compact Oven Gravity Convection

220 VAC 50/60 Hz

33 L

30 kg

36 kg

JSON-050S

Compact Oven Gravity Convection

220 VAC 50/60 Hz

48 L

40 kg

47 kg

Art No.

Perforated Shelf, Stainless Steel 304

PHS-A02

for JSOF-030S       W320 x D250 mm

PHS-A03

for JSOF-050S       W370 x D280 mm

PHS-A02

for JSON-030S       W320 x D250 mm

PHS-A03

for JSON-050S       W370 x D280 mm

Art No.

Wire Shelf, Stainless Steel 304

PHS-B02

for JSOF-030S       W320 x D250 mm

PHS-B03

for JSOF-050S       W370 x D280 mm

PHS-B02

for JSON-030S       W320 x D250 mm

PHS-B03

for JSON-050S       W370 x D280 mm

PHS-A99

Shelf Support, Set of 4
