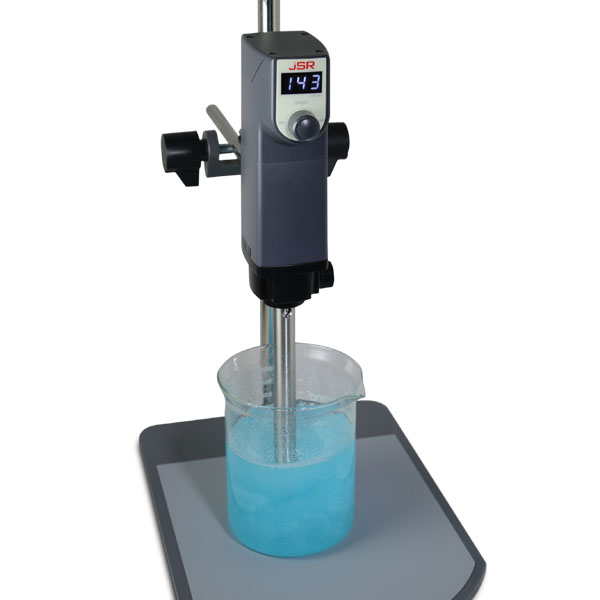

Digital Homogenizer
JSHR-270D Digital Tissue Homogenizer can rapidly homogenize, disperse and emulsify samples in 1 ml ~ 2,500 ml of liquid depending on the dispersing tool. During operation suspended material is drawn into the core of the dispersing tool by a rotor turning speed up to 27,000 rpm. The material repeatedly cycle through narrow slits of rotor and stator where it is rapidly sheared and disintegrated by high shear. Homogenizer can be used for disruption of tissue samples in biotechnology (plant or animal tissues such as muscle, liver, ligament), sample preparation in medicine, enzymatic treatment in the food industry as well as various application in pharmaceutical, cosmetic, paint, petro chemical, and other industrial applications.
 |
download-catalog-jshr-270d-digital-homogenizer.pdf |
Specifications
|
Art No. |
|
|
Speed Range |
2,000 ~ 27,000 rpm (w/o load) |
|
Stirring Capacity (H2O) |
2,500 ml |
|
Motor Rating (Input/Output) |
400 / 300 Watt |
|
Speed Control |
Digital Stepless |
|
Power Consumption |
400 Watt |
|
Control |
Digital Fuzzy Control with Capacitive Touch Button and Jog Dial |
|
|
3 Digit FND Display |
|
|
Independent ON/OFF Switch |
|
Timer |
99 hr 59 min |
|
Usable Dispersing Tool |
Ø 8 mm / Ø 10 mm / Ø 18 mm / Ø 25 mm Stator |
|
Extension Arm |
Ø 12.7 mm x L 250 mm |
|
Safety |
Over Heat Protection |
|
Material |
Aluminum casting and ABS Plastic |
|
Electrical Requirement |
230 ± 10% VAC, 50/60Hz, 1-Phase |
|
Power Plug |
CEE 7/7 Schuko or BS 1363 |
Features
|
Controller |
|

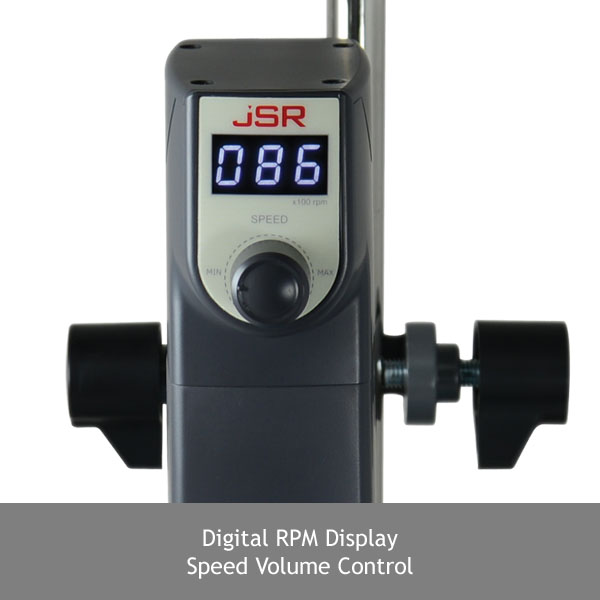

Advanced microprocessor Digital Fuzzy Controller. Easy-to-use Jog Dial for quick and convenient setting of stirring speed. Easy-to-Read FND display Rugged, solid and chemical-proof control panel surface
|
|
Construction |
|

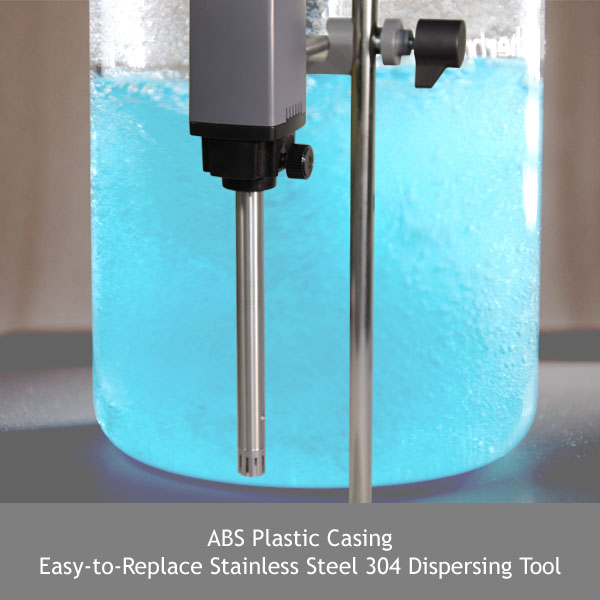

Compact and handy design to fit all applications. Main body made by aluminum casting with durable ABS Plastic. Easy-to-Replace one-touch Dispersing Tool
|
|
Performance |
|
Speed Range from 2,000 to 27,000 rpm Stirring Capacity Max. Volume 2,500 ml H2O State of the Art fine fabrication of rotor and stator.
|
|
Safety |
|
OVER HEAT PROTECTION
|
Ordering Information
|
Art No. |
Descriptions |
Speed |
Elec. Req. |
|
JSHR-270D |
Digital Homogenizer |
27,000 rpm |
230 VAC 50/60 Hz |
|
Optional Accessories |
Art No. |
Descriptions |
|
|

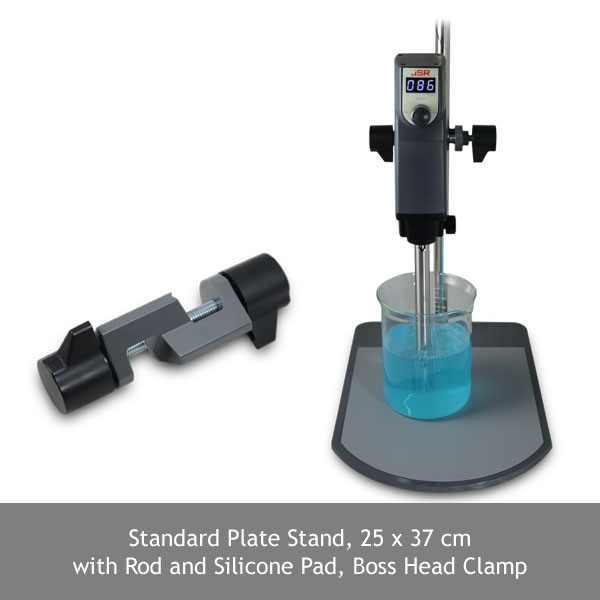

PHA-04S |
Standard Plate Stand 25Ⅹ37Cm Plate with Rod and Silicon Pad |
|
|
|
|
|
|
PHA-05C |
Bosshead Clamp, up to Ø23mm Rod |
|
|
Art No. |
Descriptions |
Rotor Dia. |
Stator Dia. |
Usable Volume |
|
|

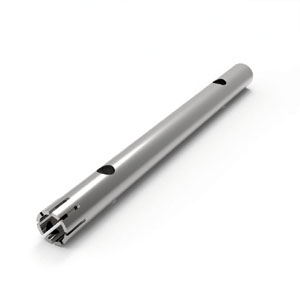

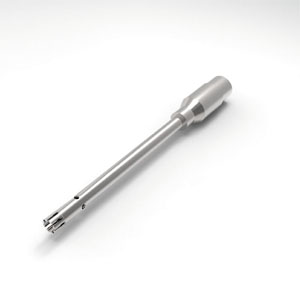

PHA-T0608 |
Dispersing Tool |
Ø 6.1 mm |
Ø 8 mm |
1 ~ 50 ml |
|
|
|
|
|
|
|
|
|
PHA-T0710 |
Dispersing Tool |
Ø 7.5 mm |
Ø 10 mm |
1 ~ 100 ml |
|
|
|
|
|
|
|
|
|
PHA-T1218 |
Dispersing Tool |
Ø 12.7 mm |
Ø 18 mm |
10 ~ 1000 ml |
|
|
|
|
|
|
|
|
|
PHA-T1725 |
Dispersing Tool |
Ø 17.0 mm |
Ø 25 mm |
50 ~ 2500 ml |
