Dry Heat Sterilizer
Dry Heat Sterilizer is a common instrument to be used to drying, heating and sterilizing objects by heating air up to 160°C or 180°C with gravity or forced convection system during specified sterilizing exposure time range from 30 to 60 minutes of sterilization exposure time
 |
download_catalog_dry_heat_sterilizer.pdf |
Specifications
|
Heating |

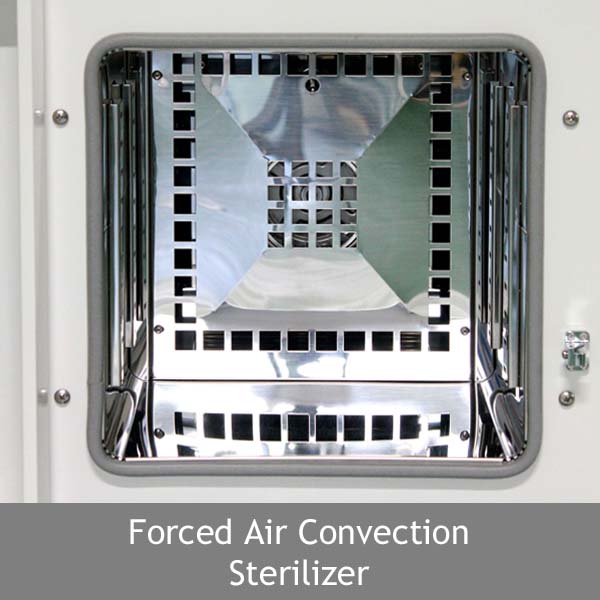

JSOF-xxxS Forced Air Convection |
|
|

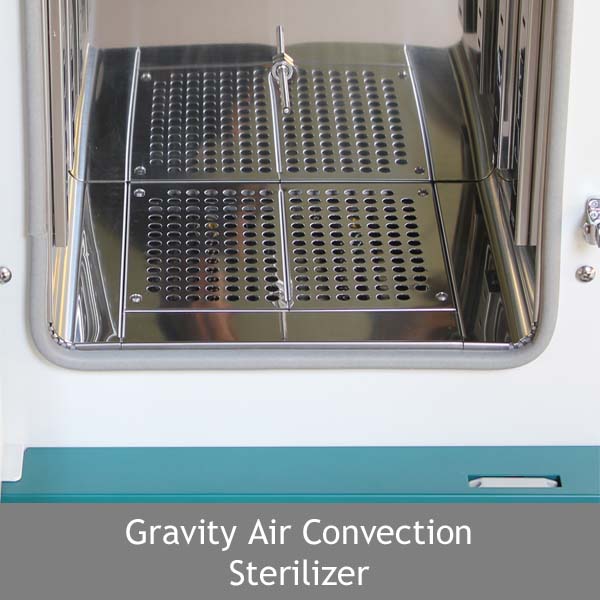

JSON-xxxS Grativy Air Convection |
|
Temp. Range |
ambient + 10 oC ~ 250 oC |
|
Accuracy |
± 0.2 oC at 180 oC (JSOF-030S) |
|
Uniformity |
± 1.0 oC at 180 oC (JSOF-030S) |
|
Control |
Microprocessor PID Control Auto START / STOP Timer |
|
Sensor |
Class A Pt-100 Ω Sensor |
|
Safety |
Over-Temperature Cut-Off |
|
|
Over Current Cut-Off |
|
Material |
Body - Epoxy Powder Coated Steel |
|
|
Chamber – Stainless Steel 304 |
|
|
Insulation – 50mm thick woven mineral wool |
|
Standard accessory |
Stainless steel wire shelf |
|
Optional accessory |
Perforated stainless steel shelf |
|
Electric |
220±10% VAC 50/60Hz 1-Phase |
|
Plug config. |
CEE 7/7 Schuko or BS 1363 |
Models
|
Art No. |
|||||
|
Hot Air Circulation |
Forced Convection |
Gravity Convection |
|||
|
Chamber Volume |
33 L |
48 L |
33 L |
48 L |
|
|
Dimensions |
Inner |
350 x 270 x 350 |
400 x 300 x 400 |
350 x 270 x 350 |
400 x 300 x 400 |
|
W x D x H mm |
Outer |
510 x 570 x 660 |
560 x 585 x 710 |
510 x 490 x 660 |
560 x 505 x 710 |
|
Temperature Range |
ambient +10 oC to 250 oC |
||||
|
Accuracy at 180 oC |
± 0.2 oC |
± 0.2 oC |
± 0.3 oC |
± 0.3 oC |
|
|
Uniformity at 180 oC |
± 1.0 oC |
± 1.0 oC |
± 2.0 oC |
± 2.0 oC |
|
|
Heat up time to 180 oC |
15 min. |
||||
|
No. of Shelves / Max. No. |
2 / 12 |
2 / 12 |
2 / 10 |
3 / 12 |
|
|
No. of Ventilation damper |
1 |
||||
|
Heater Capacity |
800 W |
1.0 kW |
800 W |
1.2 kW |
|
|
Power Rating |
3.8 Amp |
4.7 Amp |
3.8 Amp |
5.5 Amp |
|
|
Power Plug |
CEE 7/7 Schuko European Standard or BS 1363 British Plug |
||||
Features
|
Controller |
|

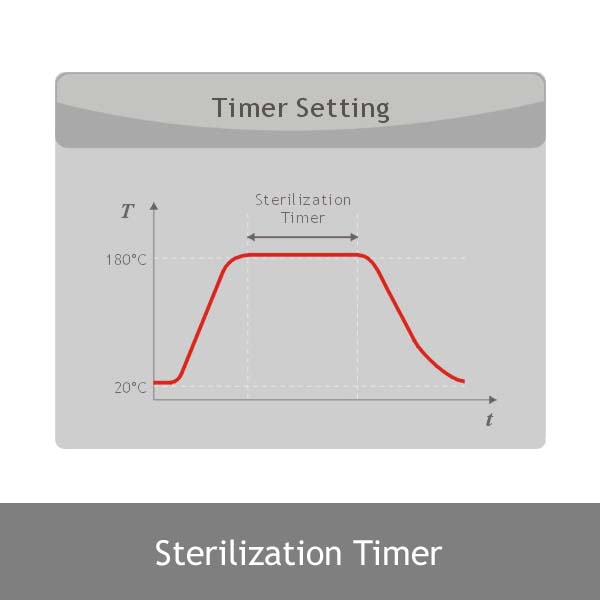

JSC-0D Digital PID Controller ±0.1 oC Digital PID Controller with LED Display Automatic START/STOP timer Adjustable timer scale 99min 59sec / 99hr 59min / 99 day 23hr or continuous operation Temperature calibration Auto-tuning function Class A Pt-100 Ω sensor
|
|
Construction |
|
Durable epoxy powder coated metallic casing Ventilation damper Corrosion resistant Stainless Steel 304 chamber with seamless round cornered edge allows easy cleaning and prevent leakage
|
|
Performance |
|
Choice of Forced or Gravity air convection Separate heating compartment prevents contamination and maintenance free 50mm thick high thermal efficiency mineral wool with woven aluminum barrier sheet saves energy and less dust
|
|
Convenience |
|
Stainless Steel 304 Chamber with seamless round cornered edge allows easy cleaning and prevents leakage Removable and height adjustable shelf by 25mm spacing Easy to open and air-tight one touch door latch Opening size adjustable ventilation damper Non-contact door switch cut-off heater and/or blower
|
|
Safety |
|
DUAL OVER TEMP. CUT-OFF Digital system cut-off heater and AUDIO VISUAL ALARM in case +2 oC above set temperature Analog system cut-off heater 10% above set temp. MAX TEMP CUT-OFF heater and AUDIO VISUAL ALARM when +1 oC above maximum limit DOOR SENSOR : Non-contact magnetic door switch cut-off heater and blower when door opened SENSOR DISCONNECTION ALARM OVER CURRENT CUT-OFF : Electrical Leakage Breaker
|
Ordering Information
|
Art No. |
Descriptions |
Elec. Req. |
Capacity |
Net Wt. |
Ship Wt. |
|
JSOF-030S |
Dry Heat Sterilizer |
220 VAC 50/60 Hz |
33 L |
35 kg |
41 kg |
|
JSOF-050S |
Dry Heat Sterilizer |
220 VAC 50/60 Hz |
48 L |
46 kg |
53 kg |
|
JSON-030S |
Dry Heat Sterilizer |
220 VAC 50/60 Hz |
33 L |
30 kg |
36 kg |
|
JSON-050S |
Dry Heat Sterilizer |
220 VAC 50/60 Hz |
48 L |
40 kg |
47 kg |
|
Optional Accessories |
|
|
Art No. |
Perforated Shelf, Stainless Steel 304 |
|
PHS-A02 |
for JSOF-030S W320 x D250 mm |
|
PHS-A03 |
for JSOF-050S W370 x D280 mm |
|
PHS-A02 |
for JSON-030S W320 x D250 mm |
|
PHS-A03 |
for JSON-050S W370 x D280 mm |
|
|
|
|
Art No. |
Wire Shelf, Stainless Steel 304 |
|
PHS-B02 |
for JSOF-030S W320 x D250 mm |
|
PHS-B03 |
for JSOF-050S W370 x D280 mm |
|
PHS-B02 |
for JSON-030S W320 x D250 mm |
|
PHS-B03 |
for JSON-050S W370 x D280 mm |
|
|
|
|
PHS-A99 |
Shelf Support, Set of 4 |
