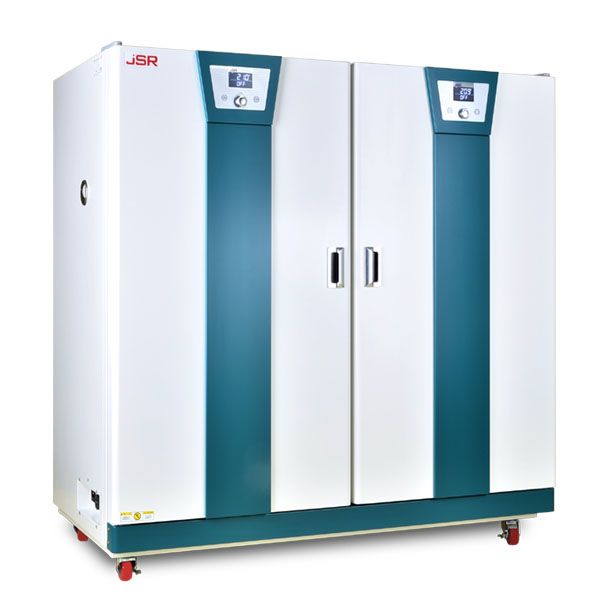

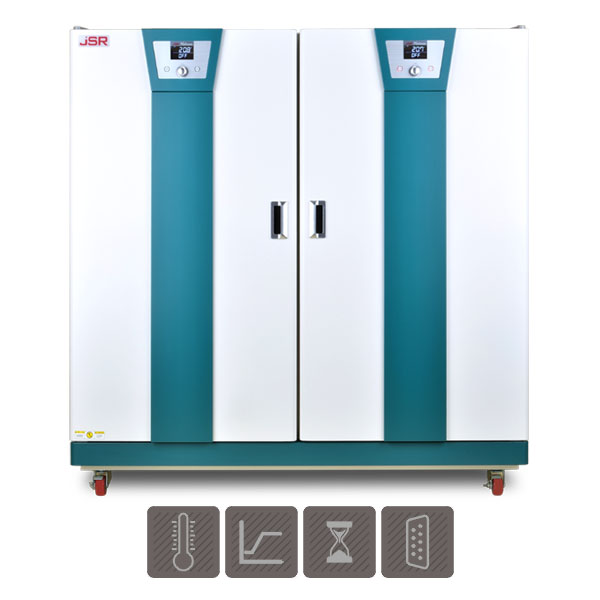

Dual Chamber General Incubator

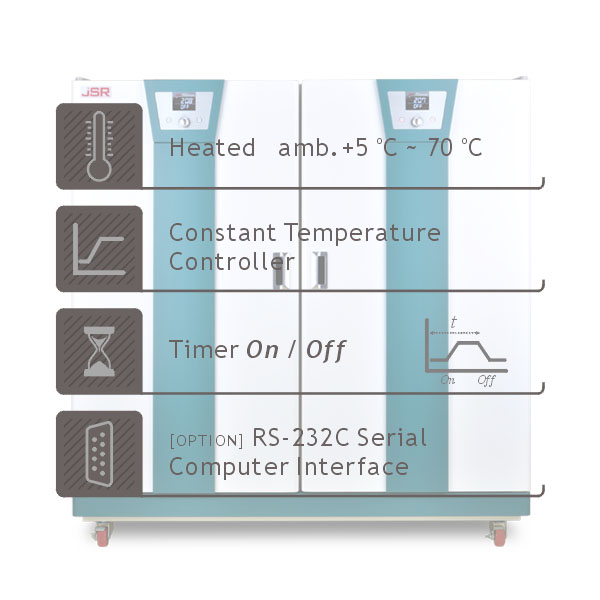

JSGI-250DT Dual Chamber General Incubator provides 500 liter chamber for large capacity of incubation. Two 250 liter capacity chambers has independent temperature controller enable incubation of different temperature at the same time. Suitable for bacterial, fungal, cell and tissue culture incubation temperature range from ambient + 5°C to 70°C. Coaxial fan mildly circulates air within the chamber to maintain uniform temperature of incubator.
 |
jsgi-250dt-eng.pdf |
Common Specifications
|
Heating System |
Forced Air Convection |
|
Temp. Range |
ambient+5 oC ~ 70 oC |
|
Accuracy |
± 0.3 oC at 37.0 oC |
|
Uniformity |
± 1.5 oC at 37.0 oC |
|
Controller |
Digital Microprocessor PID Temperature Controller |
|
|
3-Zone Temperature Control Algorithm |
|
|
3-Point Temperature Calibration |
|
|
1-Point Temperature Offset Calibration |
|
Sensor |
Class A Pt-100 Ω Sensor |
|
Safety |
Over-Temperature Cut-Off |
|
|
Over Current Cut-Off |
|
Material |
Body - Epoxy Powder Coated Steel |
|
|
Chamber – Stainless Steel 304 |
|
|
Inner Door – 5 mm thick Tempered Safety Glass |
|
|
including PVC coated wire shelf |
|
|
optional perforated stainless steel shelf |
|
Electrical Data |
220±10% VAC 50/60Hz 1-Phase |
|
Plug config. |
CEE 7/7 Schuko or BS 1363 |
Features
 |
||
 |
 |
 |
|
Complete temperature range is divided into three zones (LOW/MIDDLE/HIGH) and each ZONE has its individual PID Algorithm to provides precise and superior temperature control characteristic of whole temperature range. |
An excellent calibration tool to calibrate chamber at THREE DIFFERENT TEMPEATURE POINTS to adjust multiple TEMPERTURE BIAS to increase temperature accuracy of whole temperature range. |
Provides simple and easy calibration tool to calibrate chamber at ONE SPECIFIC TEMPERTURE POINT of frequent use.
|
|
Performance |
|
- Control Temperature Range from ambient +5 oC to +70 oC. - Forced air circulation for excellent thermal accuracy and uniformity - Aero-dynamic chamber designed with circulation blower to achieve superior thermal uniformity - Separate heating compartment located on back wall for contamination free and maintenance free
|
|
Controller |
|
- DIGITAL MICROPROCESSOR PID TEMPERATURE CONTROLLER Integrated Digital Microprocessor Control System - GRAPHIC LCD DISPLAY Back Light Graphic LCD Display provides user-friendly operating information - UV COATED POLYCARBONATE TOUCH PANEL Equipped with Capacitive LED Lighting Touch Button provides sensitive touching operation and durability - ENCODER TYPE JOG DIAL Push to Start and Stop, Rotary turn to change values provides easy and simple user interface - 0.1 oC CONTROL RESOLUTION - TURN-ON TIMER up to 99 hour 59 min and alarm - TURN-OFF DELAY TIMER up to 99 hour 59 min and alarm - Temperature and Timer Memory Function in frequent use - 3-ZONE PID ALGORITHM - 3-POINT CALIBRATION / 1-POINT OFFSET CALIBRATION - POWER and TIMER RESTORE FUNCTION in case electric power outage - CLASS A PT-100 Ω Sensor - RS-232C PC COMMUNICATION INTERFACE [OPTION]
|
|
Construction |
|
- Durable epoxy powder coated metallic casing - Corrosion resistant Stainless Steel 304 chamber with seamless round cornered edge allows easy cleaning and prevent leakage - Tempered safety inner glass door for easy observation of samples - Cable Access Port
|
|
Convenience |
|
- Outer door with self-adhesive magnetic packing - Inner glass door with high density silicone gasket and air-tight door lock - Removable and height adjustable shelf by 25mm spacing - Opening size adjustable access port - Door switch cut-off heater and fan to reduce thermal drop when put in and out samples
|
|
Safety |
|
- DOOR SENSOR WITH DOOR OPEN AUDIO VISUAL ALARM - MAXIMUM TEMPERATURE LIMIT SETTING, CUT-OFF HEATER AND AUDIO VISUAL ALARM - DUAL OVER TEMPERATURE CUT-OFF BY CONTROLLER AND INDEPENDENT THERMOSTAT Controller Program cut-off heater and AUDIO VISUAL ALARM in case +2 oC above set temperature Independent analog thermostat cut-off heater 10% above set temperature - HIGH TEMPERATURE CUT-OFF AND AUDIO VISUAL ALARM - LOW TEMPERATURE CUT-OFF AND AUDIO VISUAL ALARM - PT SENSOR SHORT OR DISCONNECTION AUDIO VISUAL ALARM - OVER CURRENT CUT-OFF : Fuse
|
| Controller | Inner Glass Door |
Safety | ||
 |
 |
 |
Models
|
DESCRIPTIONS |
|
|
Dimension Data |
|
|
Chamber Volume |
2 Chambers x 250 Liters |
|
Inner Dims. (W x D x H mm) |
500 x 500 x 1000 / chamber |
|
Outer Dims. (W x D x H mm) |
680 x 735 x 1320 |
|
Inner Glass Door (W x H mm) |
561 x 1077 |
|
No. of Shelf Positions |
36 ea by 25mm spacing |
|
No. of Shelf included |
6 ea |
|
No. of Ventilation Damper |
2 ea |
|
|
|
|
Performance Data |
|
|
Heating System |
Forced Air Convection |
|
Temp. Range |
Amb. +5 oC ~ +70 oC |
|
Accuracy |
±0.3 oC at 37.0 oC |
|
Uniformity |
±1.5 oC at 37.0 oC |
|
Heat up time to 37.0 oC |
20 min. |
|
|
|
|
Controller |
|
|
Processor |
Digital Microprocessor PID Temperature Controller |
|
Display |
Back Light Graphic LCD Display |
|
Panel |
UV Coated Polycarbonate Solid Touch Panel |
|
Button |
Capacitive touch LED Lighting Touch Button |
|
Interface |
Push and Rotary encoder type Jog Dial |
|
Control Logic |
3 Zone PID Control |
|
Calibration |
1 Point Temperature OFFSET |
|
|
3 Point Temperature Calibration |
|
Resolution |
0.1 oC |
|
Turn-Off Timer |
Max. 99 hr 59 min |
|
Turn-On Delay Time |
Max. 99 hr 59 min |
|
Sensor |
CLASS A PT-100 Ω Sensor |
|
Power Restoration |
Power and Timer Restoration Function in case of power outage |
|
PC Communication Interface |
RS-232C PC COMMUNICATION INTERFACE [OPTION] |
|
|
|
|
Safety Data |
|
|
Safety Device |
Door sensor with inner door open audio visual alarm |
|
|
Max. Temp. Limit and Cut-Off audio visual alarm |
|
|
Dual Over Temp. Cut-Off by Controller and Thermostat |
|
|
High Temp. Cut-Off audio visual alarm |
|
|
Low Temp. Cut-Off audio visual alarm |
|
|
PT-Sensor Short or Open audio visual alarm |
|
|
Over Current Cut-Off |
|
|
|
|
Material Data |
|
|
Body |
Epoxy Powder Coated Steel |
|
Chamber |
Stainless Steel 304 (AISI304) |
|
Inner Glass Door |
Tempered Safety Glass, 5 mm thick |
|
|
|
|
Electrical Data |
|
|
Rated voltage |
230 ± 10% VAC |
|
Power frequency |
50 / 60Hz |
|
Heater Output |
400 W / chamber |
|
Nominal power |
410 W / chamber 2.0 amp / chamber has individual power |
|
Phase |
1 Phase |
|
Plug configuration |
CEE 7/7 Schuko or BS 1363 |
|
|
|
|
Usable Condition |
|
|
Temp. & Humidity |
5oC - 40 oC, < 80% RH |
|
|
|
|
Packaging Data |
|
|
Shipping Dims. (W x D x H mm ) |
1500 x 900 x 1500 mm |
|
Type of packaging |
Wooden crating |
|
Net Weight |
120.0 kg |
|
Shipping Weight |
132.0 kg |
Ordering Information
|
Art. No. |
Descriptions |
Voltage |
|
JSGI-250DT |
Dual Chamber General Incubator, 2 x 250 L including standard accessories 6 ea x PVC Coated Wire Shelf 24 ea x Shelf Support 1 ea x Instruction Manual 1 ea x Warranty Certificate |
230 VAC 1~ ph 50/60Hz |
Optional Accessories
|
Art No. |
Perforated Shelf, Stainless Steel 304 |
|
PHS-A06 |
for JSGI-250DT W470 x D480 mm |
|
Art No. |
Wire Shelf, PVC Coated Steel |
|
PHS-C05 |
for JSGI-250DT W470 x D480 mm |
|
|
|
|
PHS-A99 |
Shelf Support, Set of 4 |
