JSPC-Series Growth Chamber 3-Side Illumination

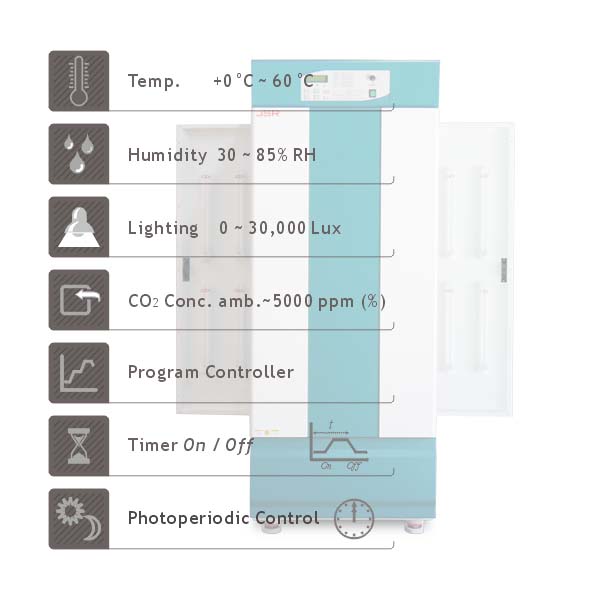

JSPC-Series 3-Side Illumination Plant Growth Chamber provides reliable controlled climatic condition of temperature, humidity, lighting and CO2 concentration. Ideal to growing plant, plant tissue culture or any other laboratory experiments needs controlled climatic simulation. Various choice of capacity from 200 L ~ 864 L for tissue culture and plants growing. Light bank on the 3-side with fluorescent lamps provide light intensity up to 30,000 LUX.
 |
download_catalog_jspc-xxxc.pdf |
Specifications
|
Heating |
Forced Air Convection |
|
Cooling |
CFC Free Air Cooled Compressor |
|
Humidifier |
Water Boiling Humidifier |
|
Temp. Range |
+0°C ~ 60°C (Light Off JSPC-300C) |
|
|
+10°C ~ 60°C (Light On JSPC-300C) |
|
Accuracy |
± 0.3°C at 20.0°C, 60% RH |
|
Uniformity |
± 1.0°C at 20.0°C, 60% RH |
|
Temp. Sensor |
Class A Pt-100 Ω Sensor |
|
Humidity Range |
30 ~ 98% RH (Sensor Range) |
|
|
30 ~ 85% RH (Control Range) |
|
Accuracy |
± 3.0 % RH at 20.0°C, 60% RH |
|
Humidity Sensor |
Electronic Sensor |
|
Illumination |
0 ~ 30,000 Lux by 8 Step Combination |
|
Light Sensor |
Lux Meter 1 Lux resolution |
|
CO2 Range |
ambient to 5,000 ppm ( ~ 20 %) |
|
CO2 Sensor |
Dual Wavelength NDIR Diffusion |
|
Controller |
Programmable PID Control |
|
|
11 Segment 999 Cycle Repeat |
|
Safety |
Over-Temperature Cut-Off |
|
|
Over Current Cut-Off |
|
|
Low Water Level Cut-Off |
|
Material |
Body : Epoxy Powder Coated Steel |
|
|
Chamber : Stainless Steel 304 |
|
|
Double Layer Vacuum Glass Window on Light Bank |
|
|
Including PVC Coated Wire Shelf |
|
Electric Requirement |
220±10% VAC 50/60Hz 1-Phase |
|
Plug Config. |
30 AMP or 50AMP |
Models
|
Art No. |
|||||
|
Chamber Volume (Capacity) |
200 L |
300 L |
432 L |
864 L |
|
|
Dimensions |
Inner |
600x600x600 |
500x500x1200 |
600x600x1200 |
1200x600x1200 |
|
W x D x H mm |
Outer |
790x935x1385 |
690x835x1985 |
790x935x1985 |
1400x920x2000 |
|
Temperature |
Range |
Light Off : +0°C ~ 60°C Light On :+10°C ~ 60°C w/o Humidification |
|||
|
|
Accuracy |
± 0.3°C at 20.0°C, 60% RH (Light Off) |
|||
|
|
Uniformity |
± 1.0°C at 20.0°C, 60% RH (Light Off) |
|||
|
Humidity |
Range |
30 ~ 98% RH (Sensor Range) 30 ~ 85% RH (Control Range) |
|||
|
|
Accuracy |
± 3.0 % RH at 20.0°C 60% RH |
|||
|
|
Uniformity |
± 3.0 % RH at 20.0°C 60% RH |
|||
|
Illumination |
Range |
0 ~ 30,000 Lux |
|||
|
|
Steps |
8 Step Combination |
|||
|
|
Configuration |
10 x 36W FPL |
14 x 36W FPL |
14 x 36W FPL |
20 x 36W FPL |
|
|
Type |
Fluorescent Lamp |
|||
|
CO2 Control |
Conc. Range |
Ambient ~ 5,000 ppm (ambient ~ 20%) |
|||
|
|
Accuracy |
± 50 ppm |
|||
|
Controller |
Programmable PID Control 11 segments 999 cycle repeatable |
||||
|
Sensors |
Temp |
Class A Pt-100 Ω Sensor |
|||
|
|
Humidity |
Electronic Humidity Sensor |
|||
|
|
CO2 |
High Precision Dual Wavelength NDIR Diffusion Sensor |
|||
|
|
Light |
Lux Meter |
|||
|
Number of shelves/Max. |
2 / 11 |
3 / 35 |
3 / 35 |
6 / 35 |
|
|
Heater Capacity |
3.0 kW |
3.1 kW |
3.5 kW |
6.0 kW |
|
|
Refrigeration System |
CFC-Free Air Cooled Hermetically Sealed Compressor |
||||
|
Electric Requirement |
220VAC 50/60Hz 1P |
||||
|
Power Rating |
20 Amp |
21 Amp |
21 Amp |
34 Amp |
|
|
Power Plug |
30 AMP |
30 AMP |
30 AMP |
50 AMP |
|
Features

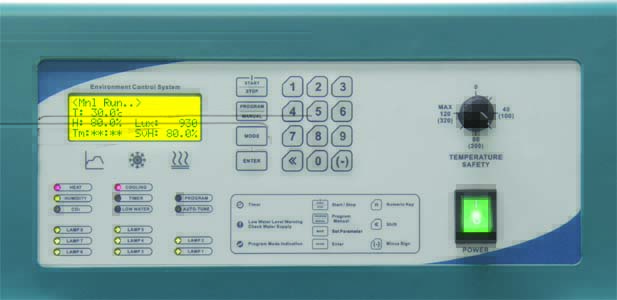

| JSC-4CP Programmable Controller | ||
|
High precision Digital PID Microprocessor controls temperature, humidity, 4-line back-light LCD display interface lighting and CO2 concentration in one integrated unit with easy to use Constant temperature, humidity, lighting and CO2 conc. operation with automatic OFF timer Programmable operation capability of various climatic conditions up to 11 Segments 999 cycles or unlimited repeating operation of temperature, humidity, lighting and CO2 conc. with time duration Calibration and auto-tuning function Class A Pt-100 Ω temperature sensor Precision electronic humidity sensor Built-in LUX Meter in chamber to measure light intensity The most accurate NDIR-Diffusion (Infra Red) CO2 Sensor Automatic defrost cycle |
||
|
Light Bank System |
||
|
|

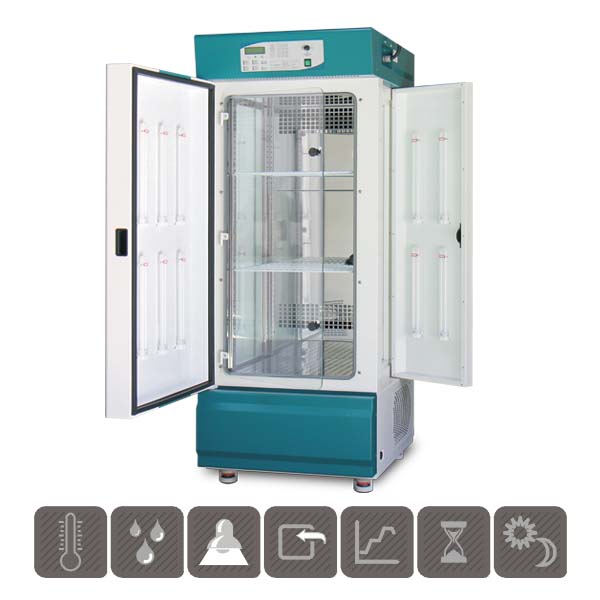

3-side door light bank system with fluorescent lamps Combination of 8-step lamp control creates over 16 kind of light intensity Lamp-on-delay system gradually increase light intensity by turn on lamp one by one
|
|
|
Chamber |
||
|
|
Corrosion resistant stainless stell 304 chamber Removalble and height adjustable shelf Internal LUX meter sensor Built-in humidifier and automatic water supply Low water level alarm
|
|
|
Easy Maintenance |
||
|
|
Easy-to-access light bank system for maintenance
|
|
|
Infra-Red CO2 Sensor |
||
|
|
High precision dual wavelength NDIR diffusion CO2 sensor controls precise CO2 concentration
|
|
|
Construction |
|
Durable epoxy powder coated metallic casing Corrosion resistant Stainless Steel 304 chamber Durable Stainless Steel 304 Sheath Heater and Copper-Aluminum fin evaporator Removable and height adjustable shelf Built-in humidifier and automatic water supply Double layer vacuum tempered safety glass side wall on light bank Tempered Safety inner glass door
|
|
Performance |
|
Forced air circulation of controlled temperature and humidity to achieve excellent thermal uniformity Durable Stainless Steel 304 Sheath Heater and copper-aluminum finned evaporator Temperature control within 0.1°C resolution Humidity control within 1 % RH resolution Lighting control from 0 ~ 30,000 Lux by 8 Step light intensity for photoperiodic Day-Night simulation Lamp-on-Delay System by turn on lamp one by one which provides gradual increase of light to eliminate sudden light intensity change CO2 concentration control within 1 ppm (1%) resolution Separate heating and cooling compartment prevents contamination and maintenance free Cooling system with hermetically sealed compressor
|
|
Convenience |
|
Outer door with self adhesive magnetic packing Inner glass door with air tight gasket for easy observation of sample during experiment. Removable and height adjustable shelf by 25mm spacing Easy to access Light Bank System for convenient maintenance Corrosion resistant Stainless Steel 304 (ASTM 304) chamber Auto-defrost system, user settable interval and time Built-in casters for easy transport
|
|
Safety |
|
DUAL OVER TEMP. CUT-OFF Digital system cut-off heater and AUDIO VISUAL ALARM in case +2°C above set temperature Analog system cut-off heater 10% above set temp. MAX TEMP CUT-OFF heater and AUDIO VISUAL ALARM when +1°C above maximum limit OVER COOLING. CUT-OFF Digital system automatically cut-off compressor in case -3°C below set temperature SENSOR DISCONNECTION ALARM LOW WATER LEVEL ALARM AND CUT-OFF HUMIDIFIER DRY-BURN PROTECTION OVER CURRENT CUT-OFF : Electric Leakage Breaker
|
Ordering Information
|
Art No. |
Descriptions |
Elec. Req. |
Capacity |
Net Wt. |
Ship Wt. |
|

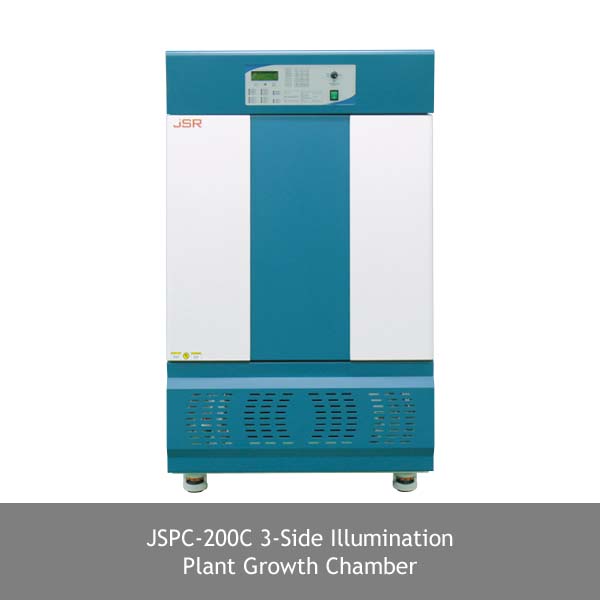

JSPC-200C |
Growth Chamber 3-Side Illumination |
220 VAC 50/60 Hz |
200 L |
100 kg |
160 kG |
|
JSPC-300C |
Growth Chamber 3-Side Illumination |
220 VAC 50/60 Hz |
300 L |
185 kg |
313 kg |
|
JSPC-420C |
Growth Chamber 3-Side Illumination |
220 VAC 50/60 Hz |
432 L |
220 kg |
368 kg |
|

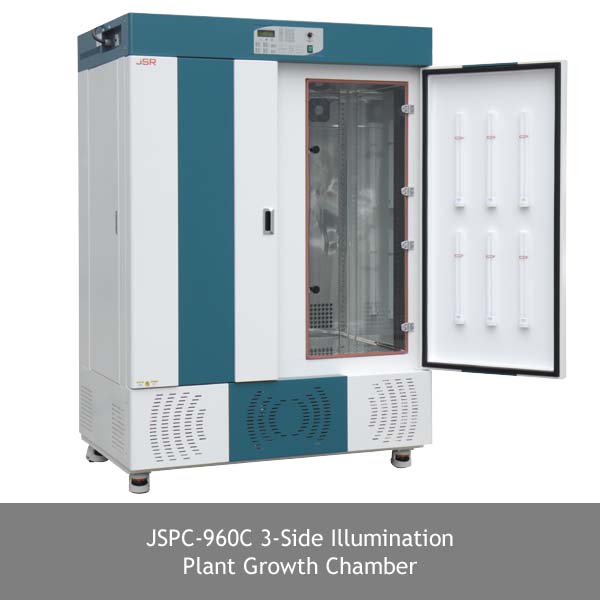

JSPC-960C |
Growth Chamber 3-Side Illumination |
220 VAC 50/60 Hz |
964 L |
380 kg |
550 kg |
|
|
|||||
|
Factory Built-in Options |
|||||
|
Art No. |
Descriptions |
||||
|
OHC-100 |
CO2 Control Option, ambient to 5,000 ppm with NDIR CO2 Sensor |
||||
|
|
Supplied without CO2 gas cylinder |
||||
|
OHC-101 |
2 Stage CO2 Gas Regulator |
||||
|
OHC-102 |
Gas Flow Meter |
||||
|
OHC-103 |
Gas Metering Valve for low CO2 concentration control |
||||
|
|
|
||||
|
Art No. |
PVC Coated Wire Shelf |
||||
|
PHS-C13 |
for JSPC-200C, 420C W570 x D580 mm |
||||
|
PHS-C05 |
for JSPC-300C W470 x D480 mm |
||||
|
PHS-C15 |
for JSPC-960C W570 x D545 mm |
||||
