Four x 125L Multi-Room Incubator

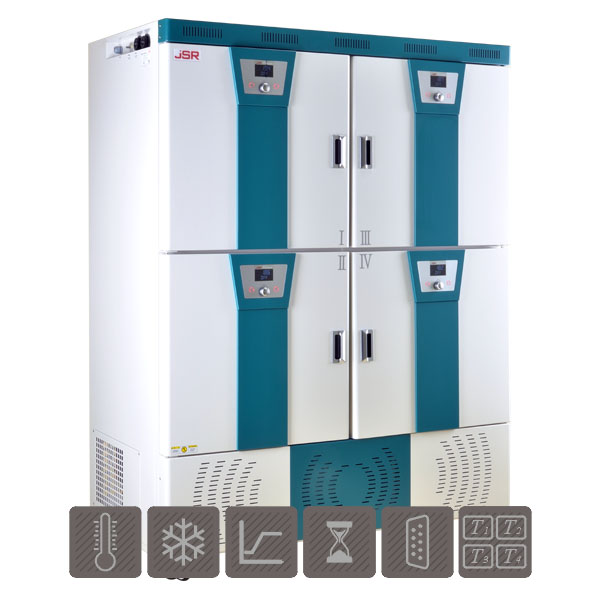

JSMI-04T (C) Multi-Chamber Refrigerated Incubator has four independently controlled incubation chambers in a compact unit share less footprint. Temperature of each chamber can be controlled individually which allow to process incubation at different temperature condition at the same time to save time and cost. Useful for bacterial, fungal, cell and tissue culture incubation or comparison test of samples such as food, packaging, QA or QC laboratory in pharmaceutical industries.
 |
jsmi-04tc-eng.pdf |
Common Specifications
|
Chamber Config. |
Four independently temeprature controlled chambers |
|
Heating |
Forced Air Convection |
|
Cooling |
CFC Free air cooled hermetically sealed compressor (JSMI-04C) |
|
Temp. Range |
JSMI-04T ambient + 5 oC ~ 70 oC Heating |
|
|
JSMI-04C + 0 oC ~ 70 oC Cooling |
|
Accuracy |
± 0.2 oC at 20.0 oC (JSMI-04C) |
|
Uniformity |
± 0.5 oC at 20.0 oC (JSMI-04C) |
|
Control |
Digital Microprocessor PID Temperature Controller |
|
|
3-Zone Temperature Control Algorithm |
|
|
3-Point Temperature Calibration |
|
|
1-Point Temperature Offset Calibration |
|
Sensor |
Class A Pt-100 Ω Sensor |
|
Safety |
Over-Temperature Cut-Off |
|
|
Over Current Cut-Off |
|
Material |
Body - Epoxy Powder Coated Steel |
|
|
Chamber – Stainless Steel 304 |
|
|
Inner Glass Door : Tempered Safety |
|
|
Shelf -including PVC coated wire shelf |
|
|
-optional perforated stainless steel shelf |
|
|
Built-in caster for east transport |
|
Electric |
220±10% VAC 50/60Hz 1-Phase |
|
Plug config. |
CEE 7/7 Schuko or BS 1363 |
Features
|
||
 |
 |
 |
|

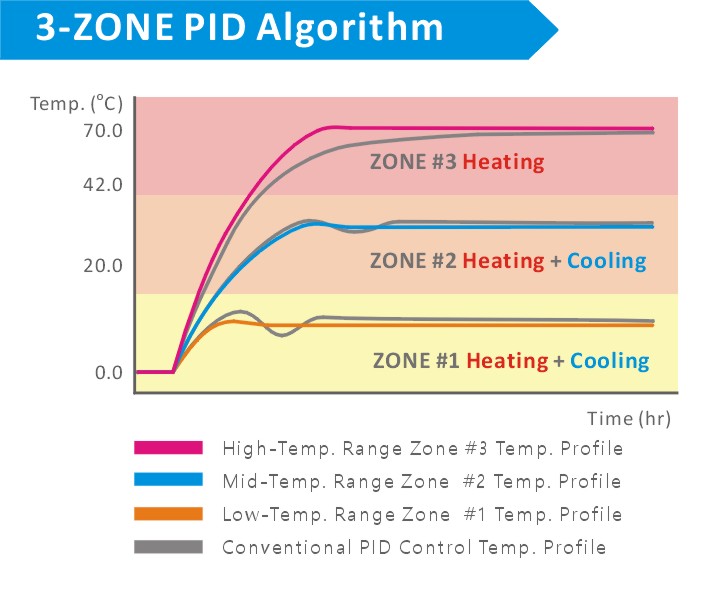

Complete temperature range is divided into three zones (LOW/MIDDLE/HIGH) and each ZONE has its individual PID Algorithm to provides precise and superior temperature control characteristic of whole temperature range. |
An excellent calibration tool to calibrate chamber at THREE DIFFERENT TEMPEATURE POINTS to adjust multiple TEMPERTURE BIAS to increase temperature accuracy of whole temperature range. |

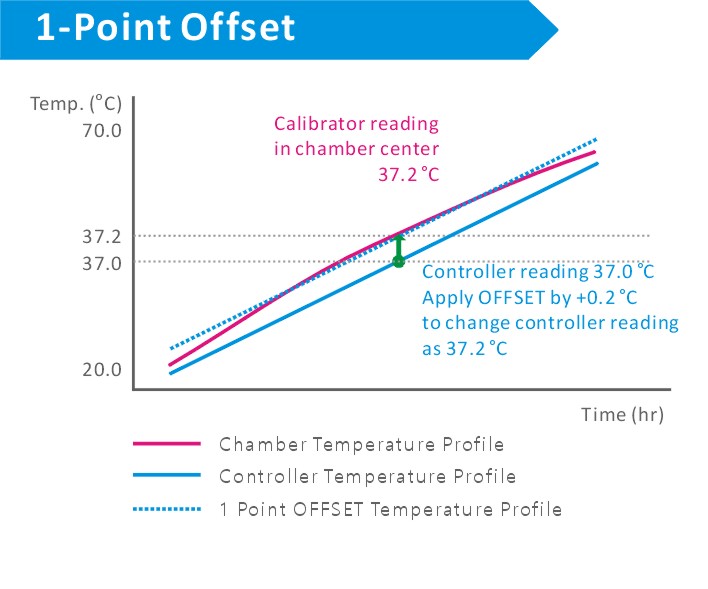

Provides simple and easy calibration tool to calibrate chamber at ONE SPECIFIC TEMPERTURE POINT of frequent use.
|
|
Performance |
|

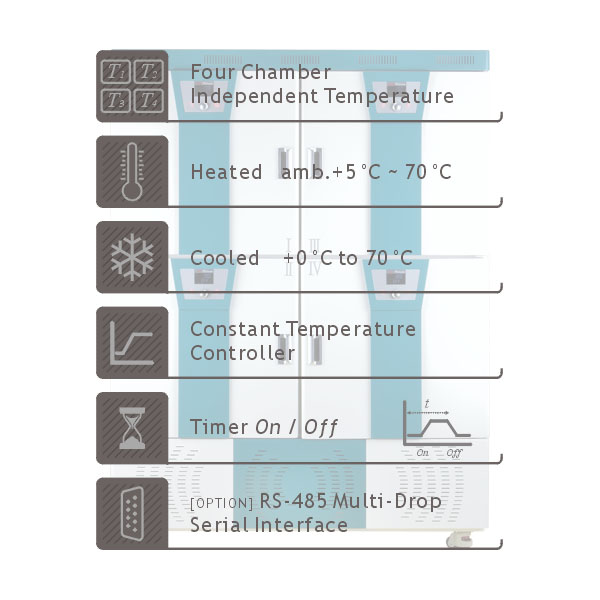

- JSMI-04T Control Temperature Range from amb.+5℃ to +70℃ (Heated) - JSMI-04C Control Temperature Range from +0℃ to +70℃ (Refrigerated) - Forced air circulation for excellent thermal accuracy and uniformity - Aero-dynamic chamber designed with circulation blower to achieve superior thermal uniformity - Separate heating compartment located on back wall for contamination free and maintenance free - Air cooled refrigeration system with hermetically sealed compressor (JSMI-04C)
|
|
Controller |
|

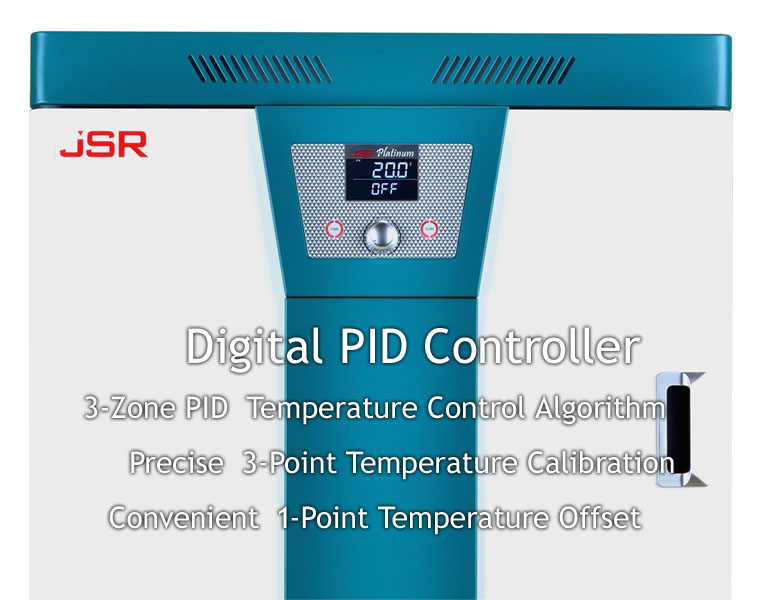

- DIGITAL MICROPROCESSOR PID TEMPERATURE CONTROLLER Integrated Digital Microprocessor Control System - GRAPHIC LCD DISPLAY Back Light Graphic LCD Display provides user-friendly operating information - UV COATED POLYCARBONATE TOUCH PANEL Equipped with Capacitive LED Lighting Touch Button provides sensitive touching operation and durability - ENCODER TYPE JOG DIAL Push to Start and Stop, Rotary turn to change values provides easy and simple user interface - 0.1 oC CONTROL RESOLUTION - TURN-ON TIMER up to 99 hour 59 min and alarm - TURN-OFF DELAY TIMER up to 99 hour 59 min and alarm - Temperature and Timer Memory Function in frequent use - 3-ZONE PID ALGORITHM - 3-POINT CALIBRATION / 1-POINT OFFSET CALIBRATION - POWER and TIMER RESTORE FUNCTION in case electric power outage - CLASS A PT-100 Ω Sensor - Delay starter to protect compressor. - RS-232C PC COMMUNICATION INTERFACE [OPTION]
|
|
Construction |
|

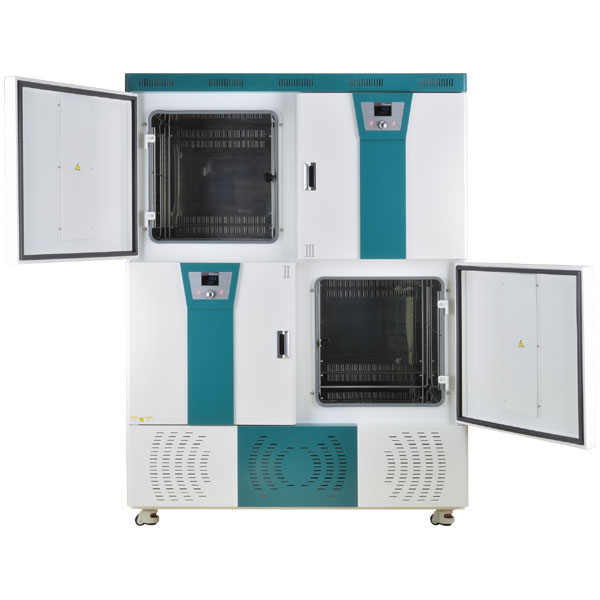

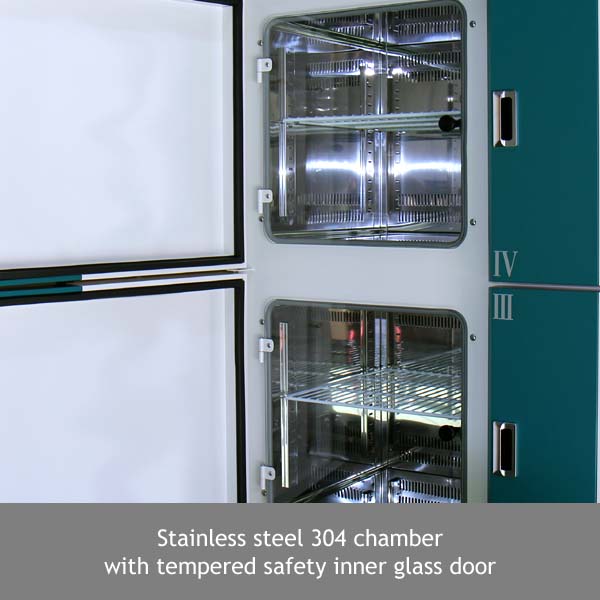

- Four Chamber configuration with individual temperature controller. - Durable epoxy powder coated metallic casing - Corrosion resistant Stainless Steel 304 chamber with seamless round cornered edge allows easy cleaning and prevent leakage - Tempered safety inner glass door for easy observation of samples
|
|
Convenience |
|
- Outer door with self-adhesive magnetic packing - Inner glass door with high density silicone gasket and air-tight door lock - Removable and height adjustable shelf by 25mm spacing
|
|
Safety |
|
- MAXIMUM TEMPERATURE LIMIT SETTING, CUT-OFF HEATER AND AUDIO VISUAL ALARM - DUAL OVER TEMPERATURE CUT-OFF BY CONTROLLER AND INDEPENDENT THERMOSTAT Controller Program cut-off heater and AUDIO VISUAL ALARM in case +2 oC above set temperature Independent analog thermostat cut-off heater 10% above set temperature - HIGH TEMPERATURE CUT-OFF AND AUDIO VISUAL ALARM - LOW TEMPERATURE CUT-OFF AND AUDIO VISUAL ALARM - PT SENSOR SHORT OR DISCONNECTION AUDIO VISUAL ALARM - OVER CURRENT CUT-OFF : Electric Circuit Breaker
|
Model
|
DESCRIPTIONS |
||
|
Dimension Data |
|
|
|
Chamber Volume |
125 Liter x 4 Chambers |
|
|
Inner Dims. (W x D x H mm) |
500 x 500 x 500 x 4 Chambers |
|
|
Outer Dims. (W x D x H mm) |
1365 x 830 x 1815 |
|
|
No. of Shelf Positions |
16 ea by 25mm spacing / chamber |
|
|
No. of Shelf included |
8 ea |
|
|
|
|
|
|
Performance Data |
|
|
|
Heating System |
Forced Air Convection |
|
|
Cooling System |
None |
4ea x CFC Free Hermetically Sealed Air Cooled Compressor |
|
Temp. Range |
Amb.+5 oC ~ +70 oC |
+0 oC ~ +70 oC |
|
Accuracy |
±0.2 oC at +37.0 oC |
±0.2 oC at +20.0 oC |
|
Uniformity |
±0.5 oC at +37.0 oC |
±0.5 oC at +20.0 oC |
|
|
|
|
|
Electrical Data |
|
|
|
Rated voltage |
230 ± 10% VAC |
|
|
Power frequency |
50 / 60Hz |
|
|
Heater Output |
4 ea x 200 W |
4 ea x 900 W |
|
Nominal power |
2 ea x 440 W 2.0 amp |
2 ea x 3.2 kW 14.1 amp |
|
Phase |
1 Phase |
|
|
Plug configuration |
CEE 7/7 Schuko or BS 1363 |
|
|
|
|
|
|
Packaging Data |
|
|
|
Shipping Dims. (WxDxH mm ) |
1510 x 960 x 2000 mm |
|
|
Type of packaging |
Wooden Crating |
|
|
Net Weight |
190.0 kg |
220.0 kg |
|
Shipping Weight |
300.0 kg |
350.0 kg |
Ordering Information
|
Art. No. |
Descriptions |
Voltage |
|
JSMI-04T |
Multi-Chamber Heated Incubator, 125 L x 4 Chambers including standard accessories 8 ea x PVC Coated Wire Shelf 32 ea x Shelf Support 1 ea x Instruction Manual 1 ea x Warranty Certificate |
230 VAC 1~ ph 50/60Hz |
|
JSMI-04C |
Multi-Chamber Refrigerated Incubator, 125 L x 4 Chambers including standard accessories 8 ea x PVC Coated Wire Shelf 32 ea x Shelf Support 1 ea x Instruction Manual 1 ea x Warranty Certificate |
230 VAC 1~ ph 50/60Hz |
Optional Accessories
|
Art. No. |
Descriptions |
|
PHS-A06 |
Perforated Shelf, Stainless Steel 304, W470 x D480 mm |
|
|
|
|
PHS-C05 |
PVC Coated Wire Shelf, W470 x D480 mm |
|
|
|
|
PHS-A99 |
Shelf Support, Set of 4 ea |
