2 x 125L Dual Chamber Refrigerated BOD Incubator (Programmable)
JSMI-02CP(L) Series Dual Chamber Programmable Refrigerated Incubator equipped with 5 Pattern internal memory, 80 segments and light control for photoperiodic day-night simulation program capability provides various incubation and test condition needs temperature vs time vs light programming.
 |
download_catalog_jsmi-02cpl.pdf |
Specifications
|
Chamber Config. |
Dual chamber with two doors |
|
|
and independent programmable temperature control |
|
Heating |
Forced Air Convection |
|
Cooling |
CFC Free air cooled hermetically sealed compressor |
|
Temp. Range |
+ 0°C ~ 70°C |
|
Accuracy |
± 0.2°C at 20.0°C |
|
Uniformity |
± 0.5°C at 20.0°C |
|
Control |
Programmable PID Control |
|
|
5 Patterns Memory 80 Segments 999 Cycles repeatable |
|
|
Photoperiodic Light Control (JSMI-02CPL) |
|
Sensor |
Class A Pt-100 Ω Sensor |
|
Safety |
Over-Temperature Cut-Off |
|
|
Over Current Cut-Off |
|
Material |
Body - Epoxy Powder Coated Steel |
|
|
Chamber – Stainless Steel 304 |
|
|
Inner Glass Door : Tempered Safety |
|
|
Shelf -including PVC coated wire shelf |
|
|
optional perforated stainless steel shelf |
|
|
Built-in caster for east transport |
|
Electric |
220±10% VAC 50/60Hz 1-Phase |
|
Plug config. |
CEE 7/7 Schuko or BS 1363 |
Models
|
Art No. |
|
|||
|
Chamber Volume |
125 L x 2 Chamber 2 Door |
|||
|
Dimensions |
Inner |
500 x 500 x 500 / chamber |
||
|
W x D x H mm |
Outer |
935 x 810 x 1875 |
|
935 x 835 x 1875 |
|
Temperature Controller |
JSC-5D Controller |
|
||
|
Range |
+0°C to 70°C |
|||
|
Accuracy at 20.0°C |
± 0.2°C |
|||
|
Uniformity at 20.0°C |
± 0.5°C |
|||
|
Light Control |
none |
|
2 x 32 Watt Fluorescent |
|
|
Number of shelves/Max. |
2 / 16 per chamber |
|||
|
Heater Capacity |
2 x 900 W |
|||
|
Refrigeration System |
CFC-Free Air Cooled Hermetically Sealed Compressor |
|||
|
Power Rating |
14.1 Amp |
|
14.7 Amp |
|
|
Power Plug |
CEE 7/7 Schuko European Standard or BS 1363 British Plug |
|||
Features
|
JSMI-02CP Programmable Multi-Room Refrigerated Incubator |
|

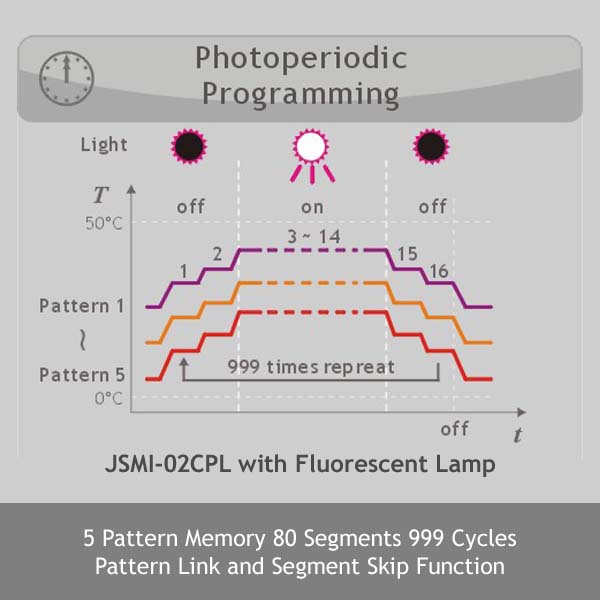

JSC-5D Programmable Controller 5 Patterns 80 Segments ±0.1°C Programmable 16-bit Microprocessor PID Controller Two-line back-light LCD Display 5 Patterns Memory 80 Segments 999 Cycles repeatable Supports Constant Temperature Mode / Program Mode Pattern link function Segment skip function Automatic STOP timer Adjustable timer scale 99min 59sec / 99hr 59min continuous operation Temperature calibration function Auto-tuning function Class A Pt-100 Ω sensor
|
|
JSMI-02CPL Programmable Multi-Room Refrigerated Incubator |
|
Same as JSMI-02CP with Programmable Photoperiodic Day and Night simulation Light Control with 2 x 32 Watt Fluorescent FPL
|
|
Construction |
|

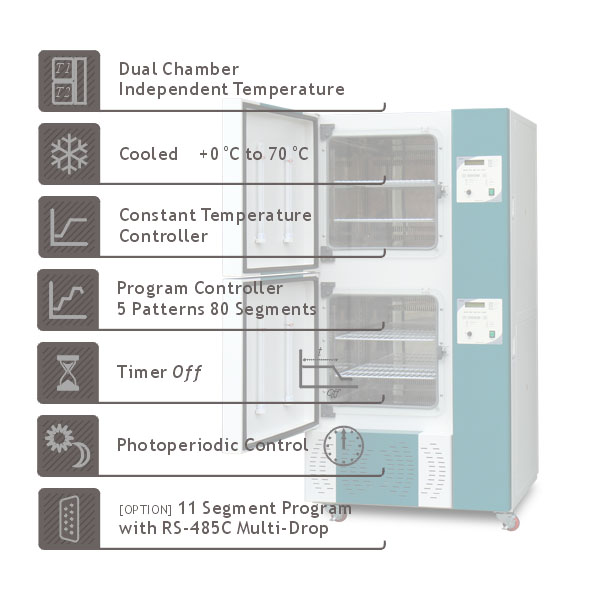

Durable epoxy powder coated metallic casing Corrosion resistant Stainless Steel 304 chamber with seamless round cornered edge allows easy decontamination and prevents leakage Durable Stainless Steel 304 Sheath Heater and Copper-Aluminum fin evaporator Tempered safety inner glass door for easy observation of samples Dual chamber with independent doors and temperature controllers
|
|
Performance |
|
Forced circulation for excellent thermal uniformity within ±0.2°C Separate heating and cooling compartment prevents contamination and maintenance free Cooling system with hermetically sealed compressor
|
|
Convenience |
|
Outer door with self adhesive magnetic packing Inner glass door with high density silicone packing and air-tight door lock Stainless Steel 304 Chamber with seamless round cornered edge allows easy decontamination and prevents leakage Removable and height adjustable shelf by 25mm spacing Adjustable automatic defrost system
|
|
Safety |
|
DUAL OVER TEMP. CUT-OFF Digital system cut-off heater and AUDIO VISUAL ALARM in case +2°C above set temperature Analog system cut-off heater 10% above set temp. MAX TEMP CUT-OFF heater and AUDIO VISUAL ALARM when +1°C above maximum limit OVER COOLING. CUT-OFF Digital system automatically cut-off compressor in case -3°C below set temperature SENSOR DISCONNECTION ALARM OVER CURRENT CUT-OFF : Electric Leakage Breaker
|
Ordering Information
|
Art No. |
Descriptions |
Elec. Req. |
Capacity |
Net Wt. |
Ship Wt. |
|
JSBI-02CP |
Dual Chamber Refrigerated Incubator /w Programmable PID Controller 5 Pattern Memory 80 Segments |
220 VAC 50/60 Hz |
2 x 125 L |
- |
- |
|
JSBI-02CPL |
Dual Chamber Refrigerated Incubator /w Programmable PID Controller 5 Pattern Memory 80 Segments Photoperiodic Light Control |
220 VAC 50/60 Hz |
2 x 125 L |
- |
- |
|
Optional Controller |
|
|
Art No. |
Descriptions |
|
OEC-002 |

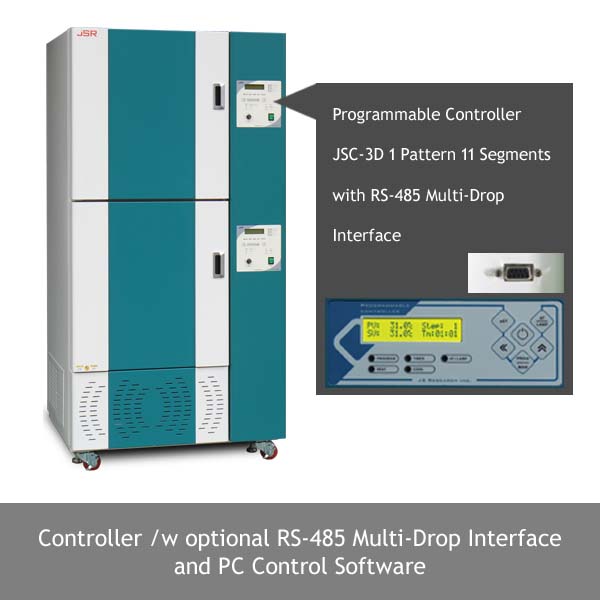

RS-485 Multi-Drop Interface, PC Software for JSMI-02C |
|
|
|
|
OEC-004 |
RS-485 Multi-Drop Interface, PC Software for JSMI-02CP, JMI-02CPL |
|
|
1 Pattern 11 Segments Programmable PID Controller |
|
|
|
|
|
PC Software |
|
|
Turn On and Off control Temperature and Timer Setting Pattern Programming and uploading Current temperature Graph Rendering Temperature Data Logging by 0.01°C resolution Alarm Signal |
|
Optional Accessories |
|
|
Art No. |
Descriptions |
|
OEA-001 |
Power Outlet Consent in Chamber for CEE 7/7 Schuko Plug |
|
OEA-002 |
Power Outlet Consent in Chamber for BS 1363 Plug |
|
|
|
|
Art No. |
Perforated Shelf, Stainless Steel 304 |
|
PHS-A06 |
for JSMI-02CP(L) W470 x D480 mm |
|
|
|
|
Art No. |
PVC Coated Wire Shelf |
|
PHS-C05 |
for JSMI-02CP(L) W470 x D480 mm |
|
|
|
|
PHS-A99 |
Shelf Support, Set of 4 |
