Refrigerated Low Temperature BOD Incubator

Heating

Forced Air Convection

Cooling

CFC Free air cooled hermetically sealed compressor

Temp. Range

+0 ^oC ~ 70 ^oC

Accuracy

± 0.2 ^oC at 20.0 ^oC

Uniformity

± 0.5 ^oC at 20.0 ^oC

Controller

Digital Microprocessor PID Temperature Controller

3-Zone Temperature Control Algorithm

3-Point Temperature Calibration

1-Point Temperature Offset Calibration

Sensor

Class A Pt-100 Ω Sensor

Safety

Over-Temperature Cut-Off

Over-Cooling Cut-Off

Over Current Cut-Off

Material

Body - Epoxy Powder Coated Steel

Chamber – Stainless Steel 304

Inner Door – 5 mm thick Tempered Safety Glass

including PVC coated wire shelf

optional perforated stainless steel shelf

Electrical Data

220±10% VAC 50/60Hz 1-Phase

Plug config.

CEE 7/7 Schuko or BS 1363

Complete temperature range is divided into three

zones (LOW/MIDDLE/HIGH) and each ZONE has

its individual PID Algorithm to provides precise

and superior temperature control characteristic

of whole temperature range.

An excellent calibration tool to calibrate chamber

at THREE DIFFERENT TEMPEATURE POINTS

to adjust multiple TEMPERTURE BIAS

to increase temperature accuracy

of whole temperature range.

Provides simple and easy calibration tool

to calibrate chamber at ONE SPECIFIC

TEMPERTURE POINT of frequent use.

Performance

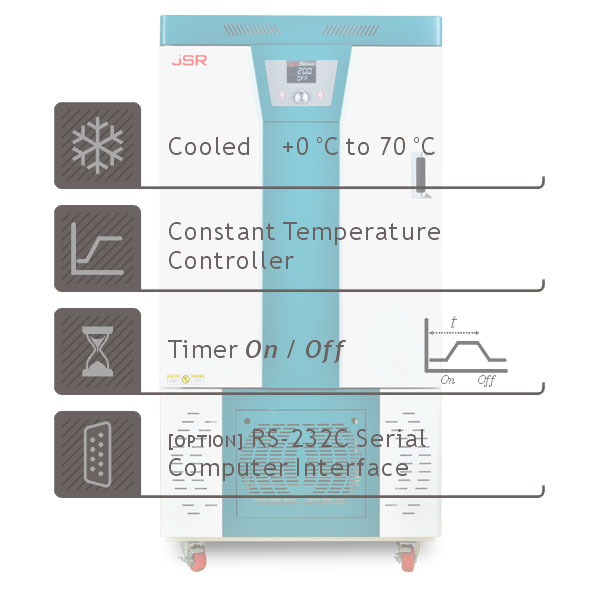

- Control Temperature Range from +0℃ to +70℃

- Forced air circulation for excellent thermal accuracy and uniformity

- Aero-dynamic chamber designed with circulation blower to achieve superior thermal uniformity

- Separate heating compartment located on back wall for contamination free and maintenance free

- Air cooled refrigeration system with hermetically sealed compressor

Controller

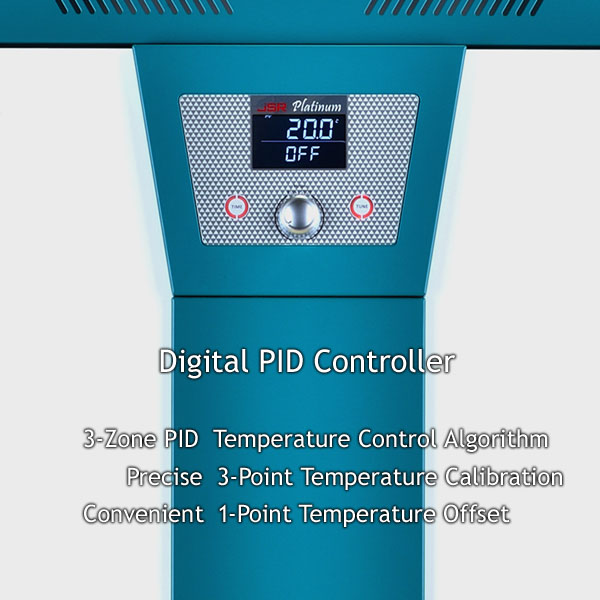

- DIGITAL MICROPROCESSOR PID TEMPERATURE CONTROLLER

   Integrated Digital Microprocessor Control System

- GRAPHIC LCD DISPLAY

   Back Light Graphic LCD Display provides user-friendly operating information

- UV COATED POLYCARBONATE TOUCH PANEL

   Equipped with Capacitive LED Lighting Touch Button provides sensitive touching operation and durability

- ENCODER TYPE JOG DIAL

   Push to Start and Stop, Rotary turn to change values provides easy and simple user interface

- 0.1 ^oC CONTROL RESOLUTION

- TURN-ON TIMER up to 99 hour 59 min and alarm

- TURN-OFF DELAY TIMER up to 99 hour 59 min and alarm

- Temperature and Timer Memory Function in frequent use

- 3-ZONE PID ALGORITHM

- 3-POINT CALIBRATION / 1-POINT OFFSET CALIBRATION

- POWER and TIMER RESTORE FUNCTION in case electric power outage

- CLASS A PT-100 Ω Sensor

- Delay starter to protect compressor.

- RS-232C PC COMMUNICATION INTERFACE [OPTION]

Construction

- Durable epoxy powder coated metallic casing

- Corrosion resistant Stainless Steel 304 chamber with seamless round cornered edge allows easy cleaning and prevent leakage

- Tempered safety inner glass door for easy observation of samples

Convenience

- Outer door with self-adhesive magnetic packing

- Inner glass door with high density silicone gasket and air-tight door lock

- Removable and height adjustable shelf by 25mm spacing

Safety

- MAXIMUM TEMPERATURE LIMIT SETTING, CUT-OFF HEATER AND AUDIO VISUAL ALARM

- DUAL OVER TEMPERATURE CUT-OFF BY CONTROLLER AND INDEPENDENT THERMOSTAT

   Controller Program cut-off heater and AUDIO VISUAL ALARM in case +2 ^oC above set temperature

   Independent analog thermostat cut-off heater 10% above set temperature

- HIGH TEMPERATURE CUT-OFF AND AUDIO VISUAL ALARM

- LOW TEMPERATURE CUT-OFF AND AUDIO VISUAL ALARM

- PT SENSOR SHORT OR DISCONNECTION AUDIO VISUAL ALARM

- OVER CURRENT CUT-OFF : Electric Circuit Breaker

Art. No.

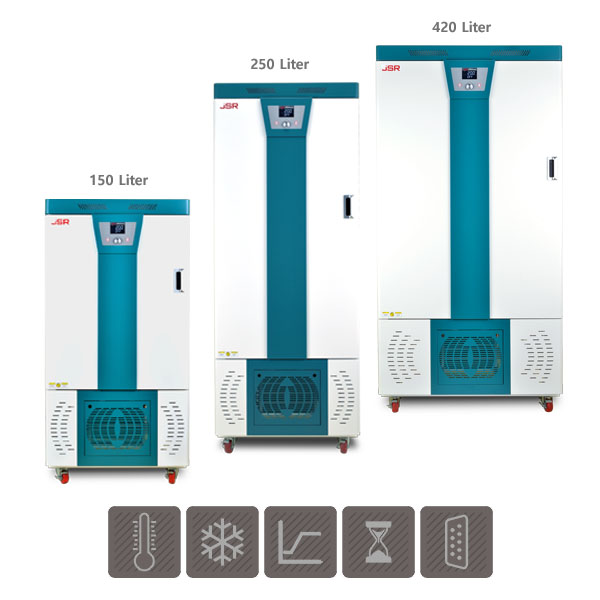

JSBI-150C

JSBI-250C

JSBI-420C

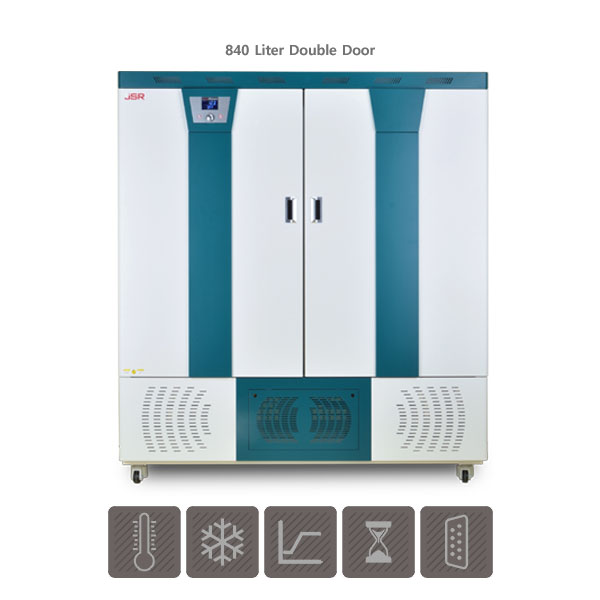

JSBI-840C

Dimension Data

Chamber Volume

150 Liters

250 Liters

420 Liters

840 Liters

Inner Dims. (W x D x H mm)

500 x 500 x 600

500 x 500 x 1000

700 x 600 x 1000

1400 x 600 x 1000

Outer Dims. (W x D x H mm)

680 x 825 x 1370

680 x 825 x 1770

880 x 925 x 1770

1580 x 925 x 1770

Inner Glass Door (W x H mm)

561 x 677

561 x 1077

761 x 1077

661 x 1077

No. of Shelf Positions

20 ea

36 ea

36 ea

72 ea

No. of Shelf included

2 ea

3 ea

3 ea

6 ea

Performance Data

Heating System

Forced Air Convection

Cooling System

Hermetically Sealed Air Cooled Compressor

Temp. Range

+0 ^oC ~ +70 ^oC

Accuracy at 20.0 ^oC

±0.2 ^oC

±0.2 ^oC

±0.2 ^oC

±0.2 ^oC

Uniformity at 20.0 ^oC

±0.5 ^oC

±0.5 ^oC

±0.5 ^oC

±1.0 ^oC

Electrical Data

Rated voltage

230 ± 10% VAC

Power frequency

50 / 60Hz

Heater Output

900 W

1.0 kW

1.5 kW

3.0 kW

Nominal power

1.6 kW 7.1 amp

1.8 kW 7.6 amp

2.4 kW 10.3 amp

5.0 kW 22.0 amp

Phase

1 Phase

Plug configuration

CEE 7/7 Schuko or BS 1363

Packaging Data

Shipping Dims. (WxDxH mm )

790 x 940 x 1530

790 x 940 x 1930

1030x1070x1930

1760x1100x1900

Type of packaging

Carton on a wooden palette

Net Weight

110.0 kg

140.0 kg

175.0 kg

220.0 kg

Shipping Weight

150.0 kg

180.0 kg

220.0 kg

280.0 kg

Art. No.

Descriptions

Voltage

JSBI-150C

Refrigerated BOD Incubator, 150 L

including standard accessories

2 ea x PVC Coated Wire Shelf

8 ea x Shelf Support

230 VAC 1~ ph 50/60Hz

JSBI-250C

Refrigerated BOD Incubator, 250 L

including standard accessories

3 ea x PVC Coated Wire Shelf

12 ea x Shelf Support

230 VAC 1~ ph 50/60Hz

JSBI-420C

Refrigerated BOD Incubator, 420 L

including standard accessories

3 ea x PVC Coated Wire Shelf

12 ea x Shelf Support

230 VAC 1~ ph 50/60Hz

JSBI-840C

Refrigerated BOD Incubator, 840 L

including standard accessories

6 ea x PVC Coated Wire Shelf

24 ea x Shelf Support

230 VAC 1~ ph 50/60Hz

Art No.

Perforated Shelf, Stainless Steel 304

PHS-A06

for JSBI-150C   W470 x D480 mm

PHS-A06

for JSBI-250C    W470 x D480 mm

PHS-A13

for JSBI-420C   W670 x D580 mm

PHS-A14

for JSBI-840C    W675 x D525 mm

Art No.

Wire Shelf, PVC Coated Steel

PHS-C05

for JSBI-150C   W470 x D480 mm

PHS-C05

for JSBI-250C    W470 x D480 mm

PHS-C06

for JSBI-420C   W670 x D580 mm

PHS-C07

for JSBI-840C    W675 x D525 mm

PHS-A99

Shelf Support, Set of 4
