Stackable Shaking Incubator
JSSI-200 Series Shaking Incubator is designed to save laboratory space by stacking one onto the other unit which shares less footprint. Front loading door system allow easy sample loading and unloading. Static shelf space above shaking platform can be used as general incubator for petri-dishes.
 |
download_catalog_stackable_shaking_incubator.pdf |
Specifications
|
Heating |
Forced Air Convection |
|
Cooling |
CFC Free air cooled hermetically sealed compressor |
|
Temp. Range |
JSSI-200T : ambient + 5°C ~ 70°C |
|
|
JSSI-200C(L) : + 10°C ~ 70°C |
|
Accuracy |
± 0.2°C at 25.0°C (JSSI-200C) |
|
Uniformity |
± 1.0°C at 25.0°C (JSSI-200C) |
|
Shaking Motion |
Orbital or Reciprocal |
|
Speed Range |
20 ~ 350 rpm (orbital) |
|
Control |
Integrated Microprocessor PID Control |
|
|
Auto STOP Timer |
|
|
Photoperiodic Light Control (JSSI-200CL) |
|
Sensor |
Class A Pt-100 Ω Sensor |
|
Safety |
Over-Temperature Cut-Off |
|
|
Over Current Cut-Off |
|
Material |
Body - Epoxy Powder Coated Steel |
|
|
Chamber – Stainless Steel 304 |
|
|
Tempered Safety Glass Window |
|
|
Stacking bracket and height adjustable level feet for balancing and anti-vibration
|
|
|
PVC Coated Static Wire Shelf |
|
Electric |
220±10% VAC 50/60Hz 1-Phase |
|
Plug config. |
CEE 7/7 Schuko or BS 1363 |
Models
|
Art No. |
||||
|
Chamber Volume |
198 L |
|||
|
Dimensions |
Inner |
560 x 600 x 590 |
||
|
W x D x H mm |
Outer |
930 x 740 x 955 |
||
|
|
Platform |
W500 x D465 mm |
||
|
Temperature Range |
ambient + 5°C to 70°C |
+ 10°C to 70°C |
||
|
Accuracy |
± 0.2°C at 37°C |
± 0.2°C at 25°C |
||
|
Uniformity |
± 1.0°C at 37°C |
± 1.0°C at 25°C |
||
|
Shaking |
Motion |
Orbital or Reciprocal |
||
|
|
Speed |
20 ~ 350 rpm |
||
|
|
Stroke |
20 mm |
||
|
Illumination |
none |
2 ea x 36 Watt FPL |
||
|
Light Control |
none |
24 hr Timer |
||
|
Working Light |
36 Watt FPL |
none |
||
|
Heater Capacity |
500 Watt |
700 Watt |
700 Watt |
|
|
Refrigeration System |
none |
CFC-Free Air Cooled Compressor |
||
|
Power Rating |
3.2 Amp |
5.7 Amp |
6.3 Amp |
|
|
Power Plug |
CEE 7/7 Schuko European Standard or BS 1363 British Plug |
|||
Features
| Space Saving Desing | Chamber | Easy Maintenance | ||
 |
 |
 |
||
| Chamber Light | Photoperiodic Control Timer | |||
 |
 |
|

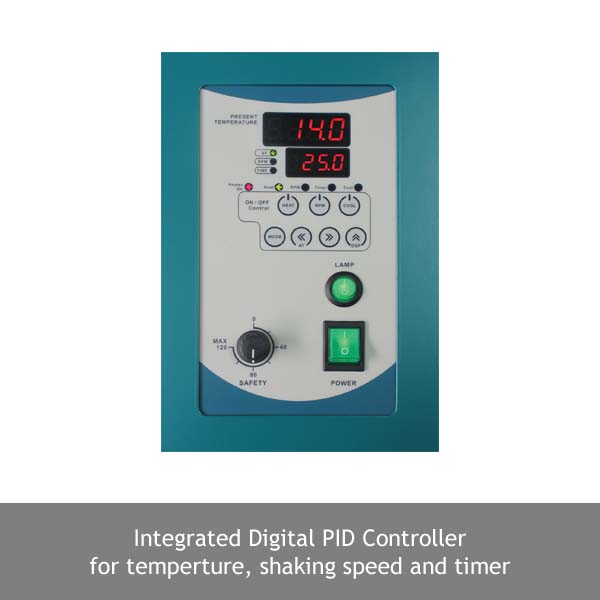

Controller |
|
JSC-7S Integrated Digital PID Controller Temperature control with ±0.1°C Shaking speed control within ±1 rpm Automatic STOP timer Max. 99min 59sec / 99hr 59min / 99day 23hr Dual digital LED displays TEMP, RPM and remaining TIME Temperature calibration Shaking speed calibration Slow Start and Stop Control Auto-tuning function Class A Pt-100 Ω sensor
|
|
JSSI-200CL Illumination Control |
|
Programmable Photoperiodic Day and Night simulation Light Control with 2 x 36 Watt Fluorescent Lamps and 24 hr timer
|
|
Construction |
|
Durable epoxy powder coated metallic casing Corrosion resistant Stainless Steel 304 chamber Durable Stainless Steel 304 Sheath Heater and Copper-Aluminum fin evaporator Front loading door with magnetic packing with glass window
|
|
Performance |
|
Forced circulation for excellent thermal uniformity within ±0.2°C Separate heating and cooling compartment prevents contamination and maintenance free Cooling system with hermetically sealed compressor Durable shaking mechanism with powerful AC motor supports orbital or reciprocal shaking motion Programmable Lighting System with 24 hour timer for photosynthetic culture (JSSI-200CL)
|
|
Convenience |
|
Front loading system for easy loading and unloading culture flasks and available to install optional static shelf above platform for general incubation at the same time Double layer glass window, lighting in chamber for easy observation during cultivation Door switch to cut-off shaking motion when put in and out sample Auto-defrost system, user settable interval and time Height adjustable level feet for balancing, anti-vibration Optional staking bracket kit to stacking one onto the other unit to save space and operation efficiency Various choice of shaking platforms
|
|
Safety |
|
DUAL OVER TEMP. CUT-OFF Digital system cut-off heater and AUDIO VISUAL ALARM in case +2°C above set temperature Analog system cut-off heater 10% above set temp. MAX TEMP CUT-OFF heater and AUDIO VISUAL ALARM when +1°C above maximum limit OVER COOLING. CUT-OFF Digital system automatically cut-off compressor in case -3°C below set temperature SENSOR DISCONNECTION ALARM Motor failure ALARM Shaking motion automatically stops when door opened OVER CURRENT CUT-OFF : Electric Leakage Breaker
|
Ordering Information
|
Art No. |
Descriptions |
Elec. Req. |
Capacity |
Net Wt. |
Ship Wt. |
|
JSSI-200T |
Stackable Shaking Incubator ambient + 5°C to 70°C Heating only |
220 VAC 50/60 Hz |
198 L |
104 kg |
109 kg |
|
JSSI-200C |
Stackable Shaking Incubator + 10°C to 70°C /w Cooling |
220 VAC 50/60 Hz |
198 L |
119 kg |
124 kg |
|
JSSI-200CL |
Stackable Shaking Incubator + 10°C to 70°C /w Cooling /w Photoperiodic Light Control |
220 VAC 50/60 Hz |
198 L |
119 kg |
124 kg |
|
(Shaking Incubator supplied without shaking platform and accessories) |
|||||
Optional Accessories
|
|
Art No. |
Descriptions |
|
|
|
PHF-P11 |
Adaptor Kit for Reciprocal Motion |
|
|
|
PHF-P12 |
Stacking Bracket Kit |
|
|
|
|
PHS-C08 |
PVC Coated Static Wire Shelf W530 x D580 mm |
|
|
|
PHF-U50 |
Universal Spring Rack W490 x D470 mm |
|
|
|
|
Flask loading capacity (approx.) 100 ml 20 ea 250 ml 13 ea 500 ml 10 ea 1000 ml 6 ea 2000 ml 5 ea |
|
|
|
PHF-P50 |
Universal Flask Holder Platform W500 x D465 mm |
|
|
|
|
supplied without flask holders Flask loading capacity (approx) 50 ~ 100 ml 32 ea 200 ~ 300 ml 20 ea 500 ml 9 ea 1000 ml 9 ea 2000 ml 5 ea 3000 ml 4 ea 5000 ml 2 ea |
|
|
|
PHF-P51 |
Dedicated Flask Holder Platform W500 x D465 mm |
|
|
|
|
Including 36 ea x 50 ~ 100 ml polycarbonate flasks holder |
|
|
|
PHF-P52 |
Dedicated Flask Holder Platform W500 x D465 mm |
|
|
|
|
Including 20 ea x 200 ~ 300 ml polycarbonate flasks holder |
|
|
|
PHF-P53 |
Dedicated Flask Holder Platform W500 x D465 mm |
|
|
|
|
Including 12 ea x 500 ~ 1000 ml polycarbonate flasks holder |
|
|
|
PHF-M50 |
Non-Slip Rubber Mat W500 x D465 mm |
|
|
|
|
|
|
|
|
Art No. |
Polycarbonate Flask Holder (Size Adjustable) |
|
|
|
PHF-P01 |
50 ~ 100 ml |
|
PHF-P02 |
200 ~ 300 ml |
||
|
PHF-P03 |
500 ~ 1000 ml |
||
|
|
|
||
|
|
|
||
|
|
|
||
|
|
|
||
|
|
|
Art No. |
Stainless Steel Flask Holder (Size Adjustable) |
|
|
|
PHF-S01 |
100 ml |
|
PHF-S02 |
250 ml |
||
|
PHF-S03 |
500 ml |
||
|
PHF-S04 |
1000 ml |
||
|
PHF-S05 |
2000 ml |
||
|
PHF-S06 |
3000 ml |
||
|
PHF-S07 |
5000 ml |
||
|
|
|
Art No. |
Test Tube Holder |
|
|
|
PHF-T01 |
8 mm Dia. for 80 test tubes |
|
PHF-T02 |
10 mm Dia. for 80 test tubes |
||
|
PHF-T03 |
12 mm Dia. for 54 test tubes |
||
|
PHF-T04 |
14 mm Dia. for 54 test tubes |
||
|
PHF-T05 |
16 mm Dia. for 30 test tubes |
||
|
PHF-T06 |
25 mm Dia. for 15 test tubes |
||
|
PHF-T07 |
35 mm Dia. for 8 test tubes |
