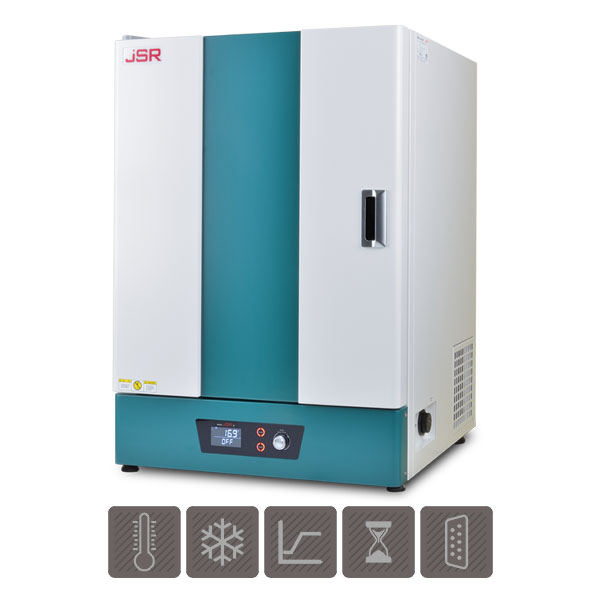

Tabletop Refrigerated Incubator
JSBI-xxC series Tabletop Refrigerated Incubator gives excellent incubation conditions below ambient temperature for bacterial, fungal, cell and tissue culture incubation, BOD (Biological Oxygen Demand) Test, QA / QC in pharmaceutical laboratory.
 |
jsbi-xxc-eng.pdf |
Common Specifications
|
Heating |
Forced Air Convection |
|
Cooling |
CFC Free air cooled hermetically sealed compressor |
|
Temp. Range |
+0 oC ~ 70 oC |
|
Accuracy |
± 0.2 oC at 20.0 oC |
|
Uniformity |
± 0.5 oC at 20.0 oC |
|
Controller |
Digital Microprocessor PID Temperature Controller |
|
|
3-Zone Temperature Control Algorithm |
|
|
3-Point Temperature Calibration |
|
|
1-Point Temperature Offset Calibration |
|
Sensor |
Class A Pt-100 Ω Sensor |
|
Safety |
Over-Temperature Cut-Off |
|
|
Over-Cooling Cut-Off |
|
|
Over Current Cut-Off |
|
Material |
Body - Epoxy Powder Coated Steel |
|
|
Chamber – Stainless Steel 304 |
|
|
Inner Door – 5 mm thick Tempered Safety Glass |
|
|
including PVC coated wire shelf |
|
|
optional perforated stainless steel shelf |
|
Electrical Data |
220±10% VAC 50/60Hz 1-Phase |
|
Plug config. |
CEE 7/7 Schuko or BS 1363 |
Features
 |
||
 |
 |
 |
|
Complete temperature range is divided into three zones (LOW/MIDDLE/HIGH) and each ZONE has its individual PID Algorithm to provides precise and superior temperature control characteristic of whole temperature range. |
An excellent calibration tool to calibrate chamber at THREE DIFFERENT TEMPEATURE POINTS to adjust multiple TEMPERTURE BIAS to increase temperature accuracy of whole temperature range. |
Provides simple and easy calibration tool to calibrate chamber at ONE SPECIFIC TEMPERTURE POINT of frequent use.
|
|
Performance |
|

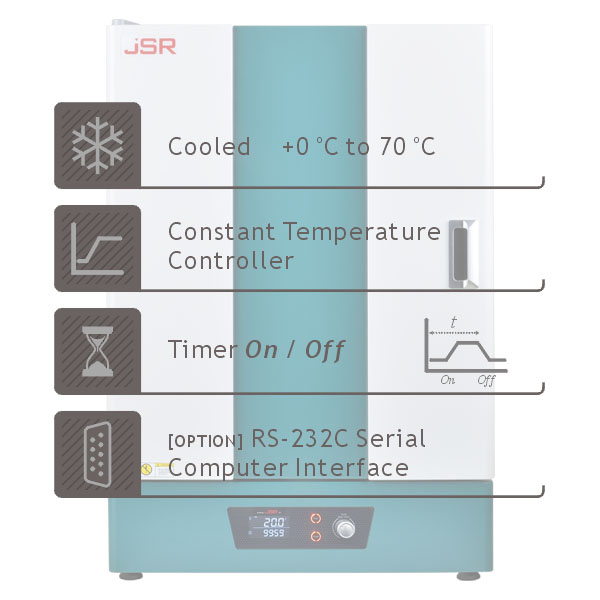

- Control Temperature Range from +0℃ to +70℃ - Forced air circulation for excellent thermal accuracy and uniformity - Aero-dynamic chamber designed with circulation blower to achieve superior thermal uniformity - Separate heating compartment located on back wall for contamination free and maintenance free - Air cooled refrigeration system with hermetically sealed compressor
|
|
Controller |
|

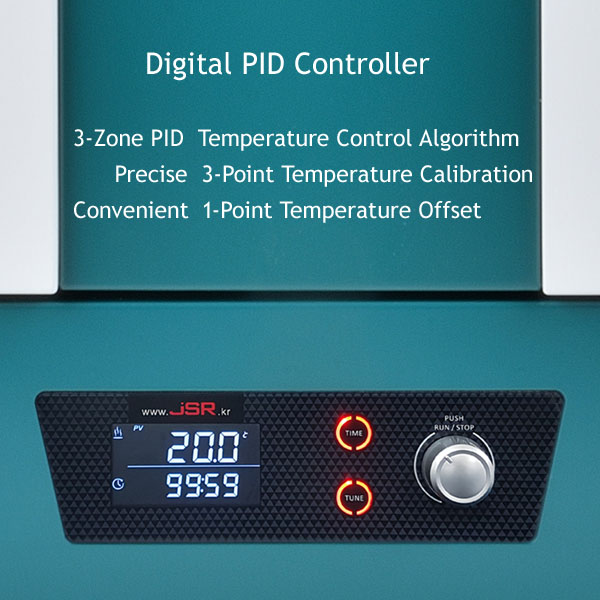

- DIGITAL MICROPROCESSOR PID TEMPERATURE CONTROLLER Integrated Digital Microprocessor Control System - GRAPHIC LCD DISPLAY Back Light Graphic LCD Display provides user-friendly operating information - UV COATED POLYCARBONATE TOUCH PANEL Equipped with Capacitive LED Lighting Touch Button provides sensitive touching operation and durability - ENCODER TYPE JOG DIAL Push to Start and Stop, Rotary turn to change values provides easy and simple user interface - 0.1 oC CONTROL RESOLUTION - TURN-ON TIMER up to 99 hour 59 min and alarm - TURN-OFF DELAY TIMER up to 99 hour 59 min and alarm - Temperature and Timer Memory Function in frequent use - 3-ZONE PID ALGORITHM - 3-POINT CALIBRATION / 1-POINT OFFSET CALIBRATION - POWER and TIMER RESTORE FUNCTION in case electric power outage - CLASS A PT-100 Ω Sensor - Delay starter to protect compressor. - RS-232C PC COMMUNICATION INTERFACE [OPTION]
|
|
Construction |
|

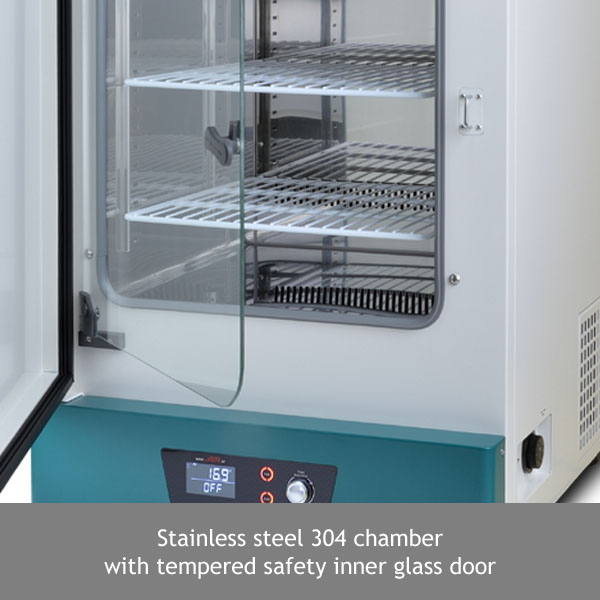

- Durable epoxy powder coated metallic casing - Corrosion resistant Stainless Steel 304 chamber with seamless round cornered edge allows easy cleaning and prevent leakage - Tempered safety inner glass door for easy observation of samples
|
|
Convenience |
|
- Outer door with self-adhesive magnetic packing - Inner glass door with high density silicone gasket and air-tight door lock - Removable and height adjustable shelf by 25mm spacing
|
|
Safety |
|
- MAXIMUM TEMPERATURE LIMIT SETTING, CUT-OFF HEATER AND AUDIO VISUAL ALARM - DUAL OVER TEMPERATURE CUT-OFF BY CONTROLLER AND INDEPENDENT THERMOSTAT Controller Program cut-off heater and AUDIO VISUAL ALARM in case +2 oC above set temperature Independent analog thermostat cut-off heater 10% above set temperature - HIGH TEMPERATURE CUT-OFF AND AUDIO VISUAL ALARM - LOW TEMPERATURE CUT-OFF AND AUDIO VISUAL ALARM - PT SENSOR SHORT OR DISCONNECTION AUDIO VISUAL ALARM - OVER CURRENT CUT-OFF : Electric Circuit Breaker
|
Models
|
MODEL |
||
|
Dimension Data |
|
|
|
Chamber Volume |
50 Liters |
100 Liters |
|
Inner Dims. (W x D x H mm) |
400 x 360 x 350 |
450 x 450 x 500 |
|
Outer Dims. (W x D x H mm) |
580 x 600 x 770 |
630 x 690 x 920 |
|
Inner Glass Door (W x H mm) |
461 x 477 |
461 x 677 |
|
No. of Shelf Positions |
10 ea by 25mm spacing |
16 ea by 25mm spacing |
|
No. of Shelf included |
2 ea |
2 ea |
|
|
|
|
|
Performance Data |
|
|
|
Heating System |
Forced Air Convection |
|
|
Cooling System |
Hermetically Sealed Air Cooled Compressor |
|
|
Temp. Range |
+0 oC ~ +70 oC |
|
|
Accuracy |
±0.2 oC at +20.0 oC |
|
|
Uniformity |
±0.5 oC at +20.0 oC |
|
|
|
|
|
|
Electrical Data |
|
|
|
Rated voltage |
230 ± 10% VAC |
|
|
Power frequency |
50 / 60Hz |
|
|
Heater Output |
500 W |
700 W |
|
Nominal power |
1.2 kW 5.5 amp |
1.3 kW 6.0 amp |
|
Phase |
1 Phase |
|
|
Plug configuration |
CEE 7/7 Schuko or BS 1363 |
|
|
|
|
|
|
Packaging Data |
|
|
|
Shipping Dims. (W x D x H mm ) |
630 x 650 x 870 mm |
660 x 720 x 1040 mm |
|
Type of packaging |
Carton on a wooden palette |
Carton on a wooden palette |
|
Net Weight |
50.0 kg |
85.0 kg |
|
Shipping Weight |
60.0 kg |
95.0 kg |
Ordering Information
|
Art. No. |
Descriptions |
Voltage |
|
JSBI-050C |
Tabletop Refrigerated Incubator, 50 L including standard accessories 2 ea x PVC Coated Wire Shelf 8 ea x Shelf Support 1 ea x Instruction Manual 1 ea x Warranty Certificate |
230 VAC 1~ ph 50/60Hz |
|
JSBI-100C |
Tabletop Refrigerated Incubator, 100 L including standard accessories 2 ea x PVC Coated Wire Shelf 8 ea x Shelf Support 1 ea x Instruction Manual 1 ea x Warranty Certificate |
230 VAC 1~ ph 50/60Hz |
Optional Accessories
|
Art No. |
Perforated Shelf, Stainless Steel 304 |
|
PHS-A23 |
for JSBI-050C W370 x D340 mm |
|
PHS-A24 |
for JSBI-100C W420 x D430 mm |
|
Art No. |
Wire Shelf, PVC Coated Steel |
|
PHS-C09 |
for JSBI-050C W370 x D340 mm |
|
PHS-C10 |
for JSBI-100C W420 x D430 mm |
|
|
|
|
PHS-A99 |
Shelf Support, Set of 4 |
