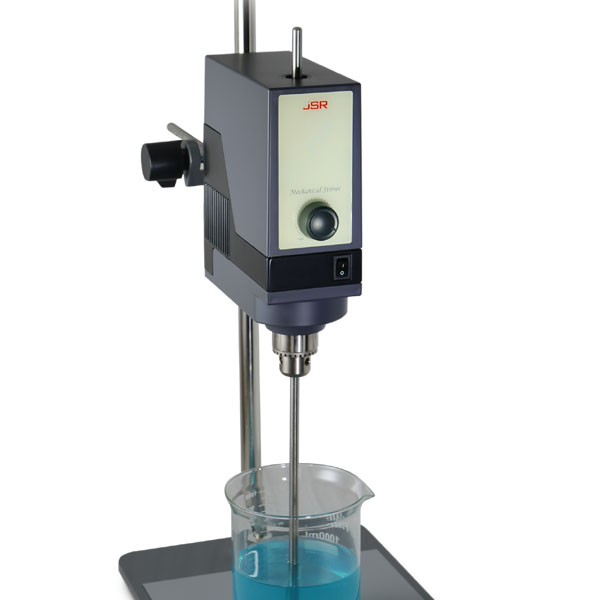

Analog Overhead Stirrer
JSMS-xxxA Analog Mechanical Overhead Stirrer designed to homogenization, emulsification and dispersion and mixing of fluids at high speed. Stepless analog RPM control and equipped with heat protection safety cut-off system. Gearless torque conversion mechanism ensure less heat generation and anti-trembling shaft guarantee vibration and noise free operation.
 |
download-catalog-jsms-xxxa-analog-overhead-stirrer.pdf |
SELECTION GUIDE
|
Model No. |
VISCOSITY |
TORQUE |
SPEED |
|||
|
JSMS-070A |
LOW |
~70,000 mPas |
LOW |
~200 Ncm |
HIGH |
0 ~ 2000 rpm |
|
JSMS-100A |
MIDDLE |
~ 100,000 Mpas |
MIDDLE |
~ 300Ncm |
MIDDLE |
0~1200 rpm |
|
JSMS-150A |
HIGH |
~150,000 mPas |
HIGH |
~ 450 Ncm |
LOW |
0~800 rpm |
Specifications
|
Art No. |
|||
|
Stirring Capacity (H2O) |
25 Liter |
40 Liter |
60 Liter |
|
Max. Viscosity |
70,000 mPas |
100,000 mPas |
150,000 mPas |
|
Max. Torque |
200 Ncm |
300 Ncm |
450 Ncm |
|
Speed Range |
~ 2,000 rpm |
~ 1,200 rpm |
~ 800 rpm |
|
Gear Rate |
2.0 : 1 |
3.0 : 1 |
4.5 : 1 |
|
Power Consumption |
150 Watt |
170 Watt |
200 Watt |
|
Motor Rating (Input/Output) |
110 / 85 Watt |
||
|
Timer |
99 hr 59 min |
||
|
Control |
Analog Stepless Controller |
||
|
|
Independent ON/OFF Switch |
||
|
Max. Impeller Diameter |
Φ 10 mm |
||
|
Safety |
Over Load and Over Heat Protection |
||
|
Material |
Aluminum casting and ABS Plastic |
||
|
Electrical Requirement |
120 ± 10% VAC, 60Hz, 1-Phase or 230 ± 10% VAC, 50/60Hz, 1-Phase |
||
|
Power Plug |
CEE 7/7 Schuko or BS 1363 |
||
Features
|
Controller |
|

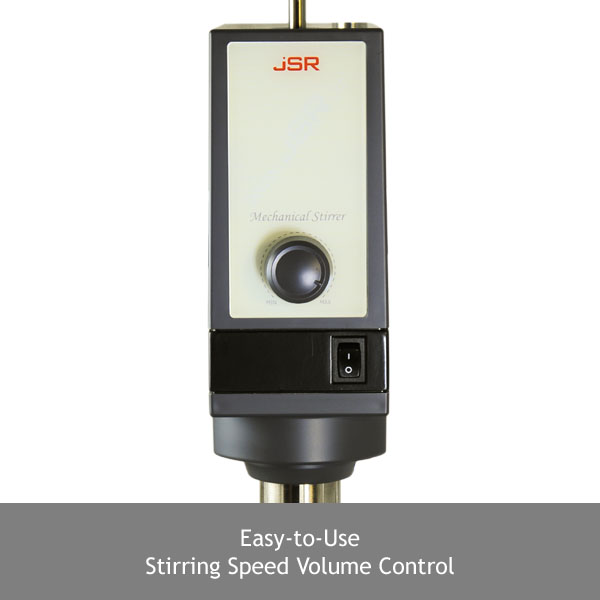

Easy-to-use analog stepless in speed control.
|
|
Construction |
|
Compact and handy design to fit all purpose. Main body made by aluminum casting with durable ABS Plastic.
|
|
Performance |
|
Stirring Capacity 25 to 60 liter H2O depends on model. Viscosity 70,000 ~ 150,000 mPas depends on model. Speed Range 800 to 2,000 rpm depends on model. Anti-trembling shaft ensure high speed stirring, vibration and noise free operation.
|
|
Convenience |
|

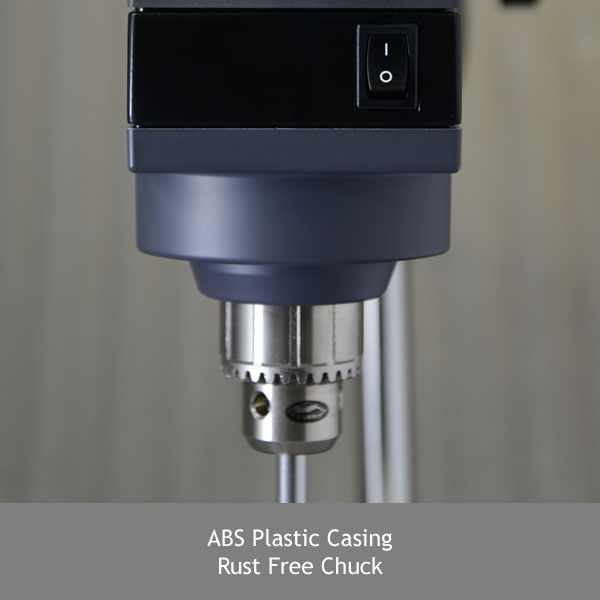

Stainless Steel anti-rust thread chuck
|
|
Safety |
|
OVER LOAD and OVER HEAT PROTECTION
|
Ordering Information
|
Art No. |
Descriptions |
Viscosity |
Torque |
RPM |
Elec. Req. |
|
JSMS-070A |
Analog Overhead Stirrer |
70,000 mPas |
200 Ncm |
100~2000 rpm |
230 VAC 50/60 Hz |
|
JSMS-100A |
Analog Overhead Stirrer |
100,000 mPas |
300 Ncm |
80~1200 rpm |
230 VAC 50/60 Hz |
|
JSMS-150A |
Analog Overhead Stirrer |
150,000 mPas |
450 Ncm |
50~800 rpm |
230 VAC 50/60 Hz |
|
Optional Accessories |
Art No. |
Descriptions |
|
|
PHA-04S |

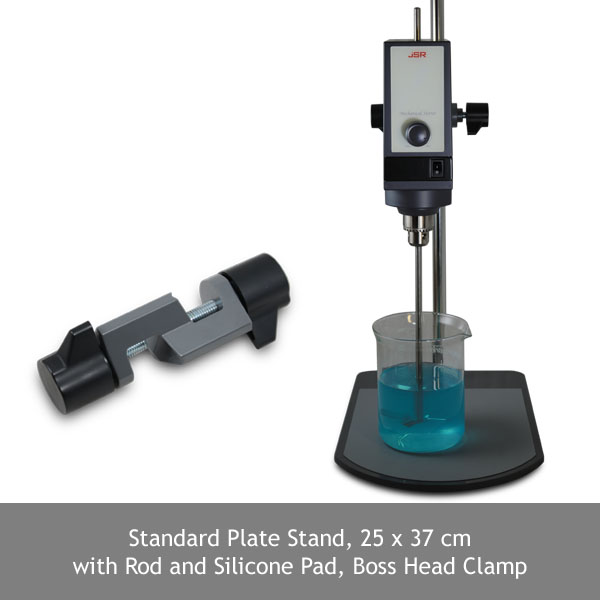

Standard Plate Stand 25Ⅹ37Cm Plate with Rod and Silicon Pad |
|
|
|
|
|
|
PHA-05C |
Bosshead Clamp, up to Ø23mm Rod |
|
|
|
3 BLADE PROPELLER |
|
|
PHA-P30850 |
Impeller, Propeller, 3 x blade, Ø8 rod, Ø50 mm blade |
|
PHA-P30860 |
Impeller, Propeller, 3 x blade, Ø8 rod, Ø60 mm blade |
|
|
PHA-P30880 |
Impeller, Propeller, 3 x blade, Ø8 rod, Ø80 mm blade |
|
|
PHA-P30810 |
Impeller, Propeller, 3 x blade, Ø8 rod, Ø100 mm blade |
|
|
PHA-P31060 |
Impeller, Propeller, 3 x blade, Ø10 rod, Ø60 mm blade |
|
|
PHA-P31080 |
Impeller, Propeller, 3 x blade, Ø10 rod, Ø80 mm blade |
|
|
PHA-P31010 |
Impeller, Propeller, 3 x blade, Ø10 rod, Ø100 mm blade |
|
|
|
4 BLADE PROPELLER |
|
|
PHA-P40870 |
Impeller, Propeller, 4 x blade, Ø8 rod, Ø70 mm blade |
|
PHA-P40890 |
Impeller, Propeller, 4 x blade, Ø8 rod, Ø90 mm blade |
|
|
PHA-P40810 |
Impeller, Propeller, 4 x blade, Ø8 rod, Ø100 mm blade |
|
|
PHA-P41090 |
Impeller, Propeller, 4 x blade, Ø10 rod, Ø90 mm blade |
|
|
PHA-P41010 |
Impeller, Propeller, 4 x blade, Ø10 rod, Ø100 mm blade |
|
|
|
DIAMOND |
|
|
PHA-D40890 |
Impeller, Diamond, 4 x blade, Ø8 rod, Ø90 mm blade |
|
PHA-D40810 |
Impeller, Diamond, 4 x blade, Ø8 rod, Ø100 mm blade |
|
|
PHA-D41010 |
Impeller, Diamond, 4 x blade, Ø10 rod, Ø100 mm blade |
|
|
|
|
|
|
|
|
|
|
|
CENTRIFUGAL |
|
|
PHA-C20810 |
Impeller, Centrifugal, 2 x blade, Ø8 rod, Ø100 mm blade |
|
PHA-C2890F |
Impeller, Centrifugal, 2 x blade, Ø8 rod, Ø90 mm blade, Teflon-coated |
|
|
PHA-C2812F |
Impeller, Centrifugal, 2 x blade, Ø8 rod, Ø120 mm blade, Teflon-coated |
|
|
|
|
|
|
|
|
|
|
|
ANCHOR |
|
|
PHA-A20870 |
Impeller, Anchor, 2 x blade, Ø8 rod, Ø70 mm blade |
|
PHA-A20890 |
Impeller, Anchor, 2 x blade, Ø8 rod, Ø90 mm blade |
|
|
PHA-A21090 |
Impeller, Anchor, 2 x blade, Ø10 rod, Ø90 mm blade |
|
|
PHA-A21014 |
Impeller, Anchor, 2 x blade, Ø10 rod, Ø140 mm blade |
|
|
|
|
