Orbital Shaker
Features
|
Controller |
|
Advanced MCU processor applies precise speed control technology 6 Preset Programs 10 Steps for each program Touch-sensitive Multi-Functional Capacitive Button compatible to all kind of latex gloves as well as finger touch. Easy-to-use Jog Dial for quick and convenient setting of speed and timer. Push to Run and Stop control. High-fidelity clear back light LCD displays complete setting and operating condition at a glance. Easy to monitoring set values, present speed and time.
|
|
Performance |
|
Speed range 10 to 300 rpm 20 mm orbital stroke Digital Timer set up to 99hr 59min by 1 min W350 x D350 mm standard shaking platform Powerful driving mechanism with “Slow Start Function” Silent BLDC motor provides long shelf life and maintenance free Maximum loading capacity up to 10 kgs
|
|
Construction |
|
Silent BLDC motor Rugged and low profile ABS plastic body
|
|
Convenience |
|
Interchangeable shaking platform Max. loading capacity of universal flask platform 16ea x 50/100ml, 9ea x 250/500ml, 5ea x 1L, 4ea x 2L, 2ea x 3L, 1ea x 5L Anti-Slip Silicone Mat
|
|
Safety |
|
-Over load protection -Over current protection
|
Specifications
|
Type of Shaking |
: Orbital |
|
Platform Dimensions (WxD) |
: 350 x 350 mm |
|
Speed Range |
: 10 to 300 rpm, 1 rpm resolution |
|
Orbital Stroke |
: 20 mm |
|
Controller |
: Digital Fuzzy Control with Capacitive Touch Button and Jog Dial |
|
|
: 99hr 59min by 1 min resolution |
|
|
: Full Size Digital Back Light LCD Display |
|
|
: Independent ON/OFF Switch |
|
|
: 6 Preset Programs, 10 Steps for each program |
|
Motor |
: Brushless DC Motor |
|
Safety Device |
: Over Load Protection |
|
|
: Over Current Protection |
|
Material |
: ABS Plastic body |
|
Electric |
: 230±10% VAC 50/60 Hz 1-Phase |
|
Plug config. |
: CEE 7/7 Schuko or BS 1363 |
|
|
|
Model
|
Art No. |
|
|
Performance Data |
|
|
Type of Shaking |
Orbital |
|
Platform Dimensions (W x D) |
350 x 350 mm |
|
Speed Range |
10 to 300 rpm, 1 rpm resolution |
|
Orbital Stroke |
20 mm |
|
Max Load |
10 kgs |
|
|
|
|
Controller |
|
|
Type |
Digital Fuzzy Control with Capacitive Touch Button and Jog Dial |
|
Timer |
99hr 59min by 1 min resolution |
|
Display |
Full Size Digital Back Light LCD Display |
|
|
Independent ON/OFF Switch |
|
Program Function |
6 Preset Programs, 10 Steps for each program |
|
|
|
|
Platform Dimensions |
|
|
Universal Spring Rack |
W350 x D350 mm |
|
Universal Flask Holder Platform |
W370 x D370 mm |
|
|
|
|
Motor |
|
|
Type |
Brushless DC Motor |
|
Power |
45 Watt |
|
Rotating Direction |
Clockwise |
|
|
|
|
Safety Data |
|
|
Safety Device |
Over Load Protection |
|
|
Over Current Protection |
|
|
|
|
Material Data |
|
|
Body |
ABS |
|
Platform |
Aluminum / Steel |
|
|
|
|
Electrical Data |
|
|
Rated voltage |
230 ± 10% VAC |
|
Power frequency |
50/60 Hz |
|
Nominal power |
45 Watt |
|
Phase |
1 Phase |
|
Plug configuration |
CEE 7/7 Schuko or BS 1363 |
|
|
|
|
Usable Condition |
|
|
Temp. & Humidity |
5oC - 40 oC, < 80% RH |
|
|
|
|
Packaging Data |
|
|
Shipping Dims. (W x D x H) |
600 x 590 x 210 mm |
|
Type of packaging |
Carton |
|
Net Weight |
14.0 kg |
|
Shipping Weight |
16.0 kg |
Ordering Information
|
Art. No. |
Descriptions |
Voltage |
|
JSOS-350Q |
Orbital Shaker |
230 VAC 1 ph 50/60 Hz |
|
|
(Orbital Shaker supplied without shaking platform and accessories)
|
|
Optional Accessories
|
|
|
Art No. |
Descriptions |
|
|
|
PHF-P35SET |
PHF-P35 Universal Flask Holder Platform PHF-M35 Silicone Mat PHF-S35 Elastic String Band |
|
|
|
PHF-U35 |
Universal Spring Rack |
|
|
|
PHF-P35 |
Universal Flask Holder Platform |
|
Art. No. |
Descriptions |
|

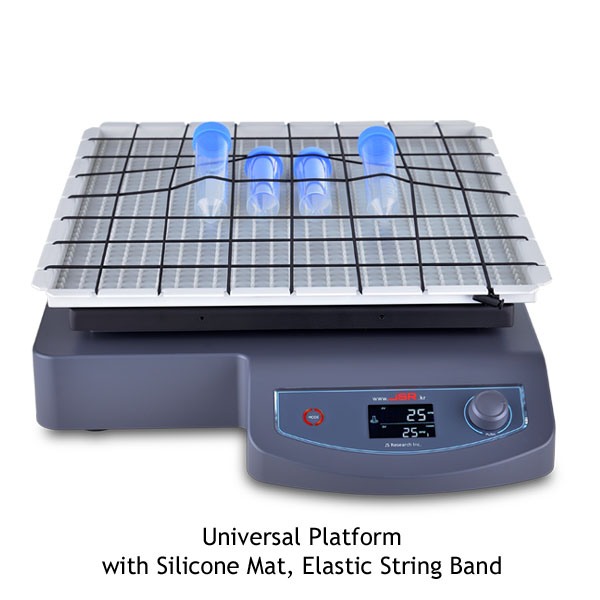

PHF-P35SET |
PHF-P35 Universal Flask Holder Platform W370 x D370 mm |
|
|
PHF-M35 Silicone Mat W350 x D350 mm |
|
|
PHF-S35 Elastic String Band x 2 Set |
|
|
|
|

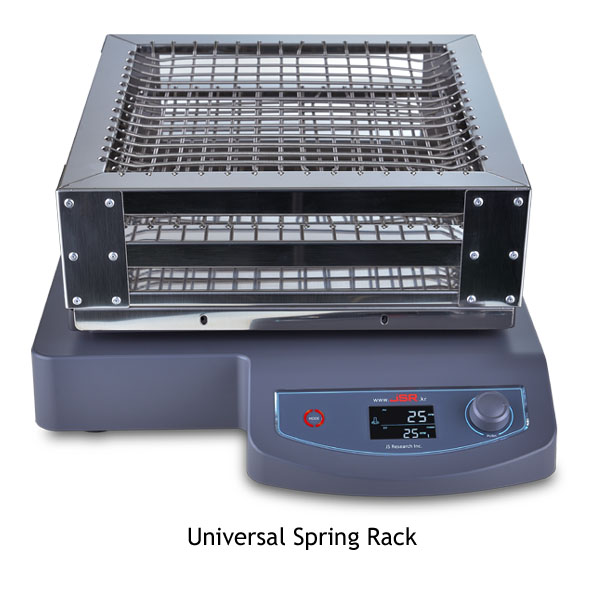

PHF-U35 |
Universal Spring Rack W350 x D350 mm |
|
|
|
|

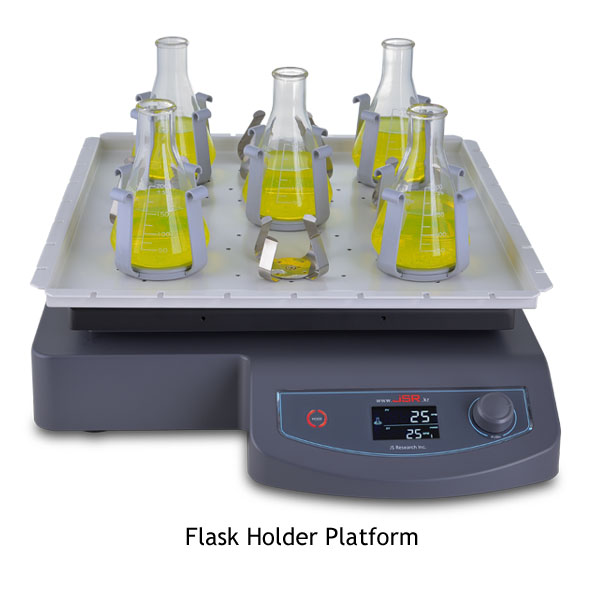

PHF-P35 |
Universal Flask Holder Platform W370 x D370 mm |
|
|
Max. 16ea x 50/100ml or 9ea x 250/500ml or 5ea x 1L or 4ea x 2L or 2ea x 3L or 1ea x 5L |
|
|
Does not including Flask Holder |
|
|
|
|
PHF-M35 |
Silicone Mat W350 x D350 mm |
|
|
|
|
PHF-S35 |
Elastic String Band with Stopper x 2 Set |
|
|
|
|
|
|
Art No. |
Polycarbonate Flask Holder (Size Adjustable) |
|
|
|
PHF-P01 |
50 ~ 100 ml |
|
PHF-P02 |
200 ~ 300 ml |
||
|
PHF-P03 |
500 ~ 1000 ml |
||
|
|
|
||
|
|
|
||
|
|
|
||
|
|
|
||
|
|
|
Art No. |
Stainless Steel Flask Holder (Size Adjustable) |
|
|
|
PHF-S01 |
100 ml |
|
PHF-S02 |
250 ml |
||
|
PHF-S03 |
500 ml |
||
|
PHF-S04 |
1000 ml |
||
|
PHF-S05 |
2000 ml |
||
|
|
|
||
|
|
|
||
|
|
|
Art No. |
Test Tube Holder |
|
|
|
PHF-T01 |
8 mm Dia. for 80 test tubes |
|
PHF-T02 |
10 mm Dia. for 80 test tubes |
||
|
PHF-T03 |
12 mm Dia. for 54 test tubes |
||
|
PHF-T04 |
14 mm Dia. for 54 test tubes |
||
|
PHF-T05 |
16 mm Dia. for 30 test tubes |
||
|
PHF-T06 |
25 mm Dia. for 15 test tubes |
||
|
PHF-T07 |
35 mm Dia. for 8 test tubes |
Reciprocal Shaker
JSOS-350R Reciprocal Shaker designed for agitation of samples in a container (e.g. flasks, bottles, tubes) within ambient condition to aerating, mixing and extracting. Various application in chemistry, biomedical, pharmaceutical, cell culture, tissue culture, environmental and agriculture applications.
Orbital Shaker
JSOS-350Q Orbital Shaker designed for agitation of samples in a container (e.g. flasks, bottles, tubes) within ambient condition to aerating, mixing and extracting. Various application in chemistry, biomedical, pharmaceutical, cell culture, tissue culture, environmental and agriculture applications.

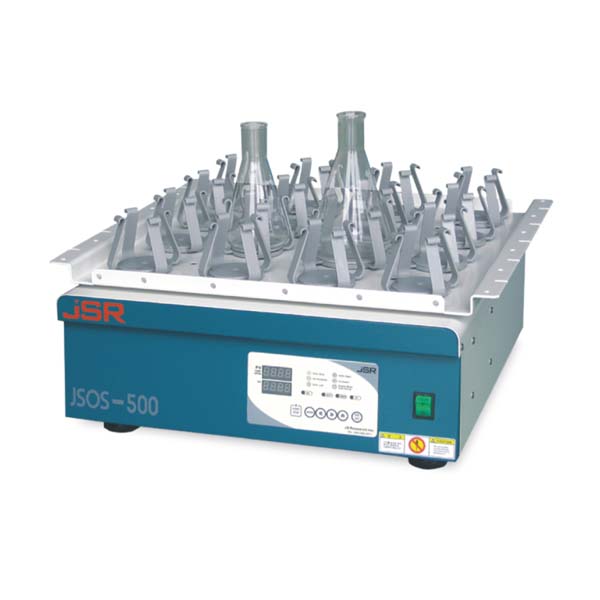

Tabletop Shaker
JSOS-500 Orbital Shaker is heavy duty and large capacity shaker for agitating samples in a container (e.g. flasks, bottles, tubes) in ambient condition to aerating, mixing and extracting samples. Various application in chemistry, biomedical, pharmaceutical, cell culture, tissue culture, environmental and agriculture applications.

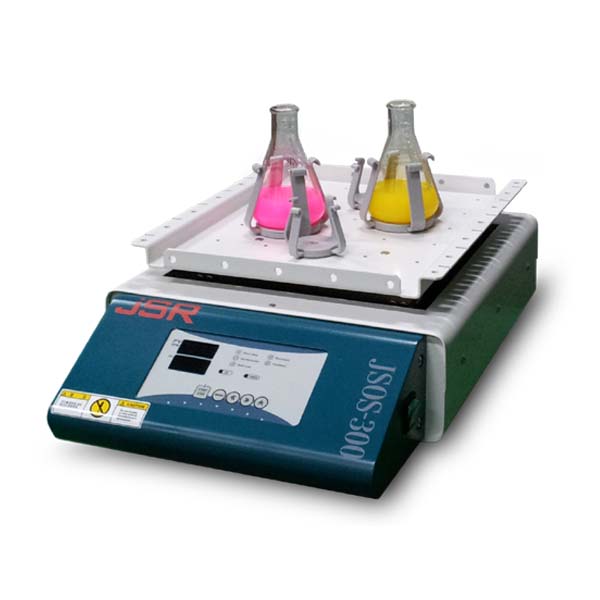

Compact Orbital Shaker
