Tabletop Shaker
Specifications
|
Shaking Motion |
Orbital and Reciprocal |
|
Speed Range |
20 ~ 350 rpm (orbital) |
|
Accuracy |
± 1 rpm |
|
Control |
Microprocessor Feedback Control |
|
|
Auto STOP Timer |
|
Safety |
Over-Speed Cut-Off |
|
Material |
Body - Epoxy Powder Coated Steel |
|
|
Spring Rack – Stainless Steel 304 |
|
|
Flask Platform – Epoxy Powder Coated Steel |
|
Electric |
220±10% VAC 50/60Hz 1-Phase |
|
Plug config. |
CEE 7/7 Schuko or BS 1363 |
Model
|
Art No. |
||
|
Dimensions |
Platform |
W495 x D495 mm |
|
|
Oversized Platform |
W700 x D650 mm |
|
W x D x H mm |
Outer |
545 x 565 x 350 |
|
|
Max. load |
35 kgs |
|
Shaking |
Motion |
Orbital or Reciprocal |
|
|
Speed |
20 ~ 350 rpm |
|
|
Stroke |
20 mm |
|
Motor Capacity |
25 Watt |
|
|
Power Rating |
0.5 Amp |
|
|
Power Plug |
CEE 7/7 Schuko European Standard or BS 1363 British Plug |
|
Features
|
Controller |
|
JSC-TACHO Digital Shaking Controller Digital feedback RPM controller with automatic STOP timer, max. 99min 59sec / 99hr 59min / continuous 4 digit dual digital LED displays RPM and TIME Inbuilt rpm calibration function Adjustable smooth start and stop motion
|
|
Construction |
|
Durable epoxy powder coated metallic casing Corrosion resistant Stainless Steel 304 Universal Spring Rack
|
|
Performance |
|
Speed control from 20 to 350 rpm Precise feedback control within ± 1 rpm Durable shaking mechanism with powerful AC motor supports orbital or reciprocal shaking motion maximum load up to 35 kgs
|
|
Convenience |
|

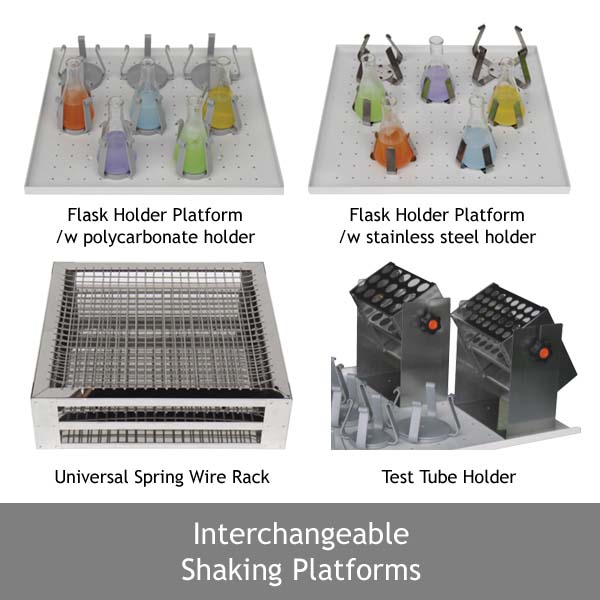

Height adjustable level feet for balancing, anti-vibration Various choice of shaking platforms - Oversized platform for large capacity load - Reciprocal Motion Adaptor - Universal Spring Rack - Universal Flask Holder Platform - Dedicated Flask Holder Platform - Non slip Rubber Mat - Size adjustable poly-carbonate flask holder - Stainless steel flask holder - Test Tube Rack
|
|
Safety |
|
MAX RPM Cut-Off motor and AUDIO VISUAL ALARM Motor failure ALARM OVER CURRENT CUT-OFF : Electric Leakage Breaker
|
Ordering Information
|
Art No. |
Descriptions |
Platform Size |
Elec. Req. |
Net Wt. |
Ship Wt. |
|
JSOS-500 |
Orbital Shaker |
W495 x D495 mm W700 x D650 mm |
220 VAC 50/60 Hz |
30 kg |
35 kg |
|
(Orbital Shaker supplied without shaking platform and accessories) |
|||||
Optional Accessories
|
|
|
Art No. |
Descriptions |
|
no image |
|
PHF-P11 |
Adaptor Kit for Reciprocal Motion |
|
|
|
PHF-U50 |
Universal Spring Rack W490 x D470 mm |
|
|
|
|
Flask loading capacity (approx.) 100 ml 20 ea 250 ml 12 ea 500 ml 9 ea 1000 ml 5 ea 2000 ml 4 ea |
|
|
|
PHF-P60 |

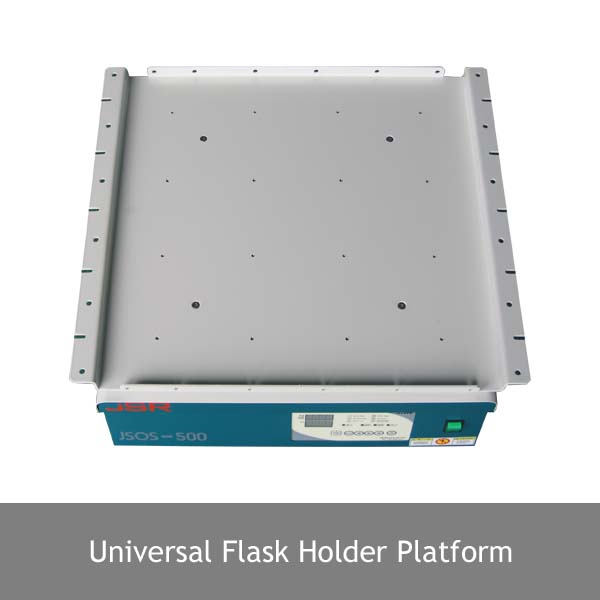

Universal Flask Holder Platform W495 x D495 mm |
|
|
|
|
supplied without flask holders Flask loading capacity (approx) 50 ~ 100 ml 25 ea 200 ~ 300 ml 16 ea 500 ml 16 ea 1000 ml 9 ea 2000 ml 5 ea |
|
|
|
PHF-P61 |
Dedicated Flask Holder Platform W495 x D495 mm |
|
|
|
|
Including 36 ea x 50 ~ 100 ml polycarbonate flasks holder |
|
|
|
PHF-P62 |
Dedicated Flask Holder Platform W495 x D495 mm |
|
|
|
|
Including 25 ea x 200 ~ 300 ml polycarbonate flasks holder |
|
|
|
PHF-P63 |
Dedicated Flask Holder Platform W495 x D495 mm |
|
|
|
|
Including 16 ea x 500 ~ 1000 ml polycarbonate flasks holder |
|
|
|
PHF-M60 |

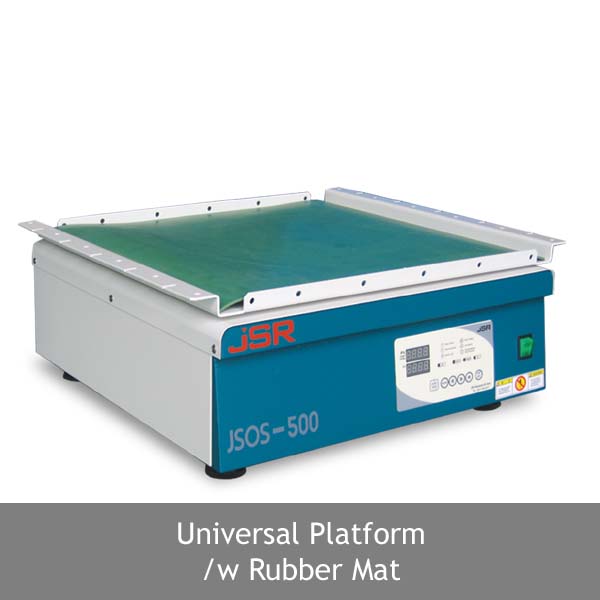

Non-Slip Rubber Mat W495 x D495 mm |
|
|
|
|
|
|
|
|
PHF-U70 |
Oversized Universal Spring Rack W690 x D650 mm |
|
|
|
|
Flask loading capacity (approx) 100 ml 42 ea 250 ml 25 ea 500 ml 19 ea 1000 ml 15 ea 2000 ml 8 ea |
|
|
|
PHF-P70 |
Oversized Universal Flask Holder Platform W700 x D650 mm |
|
|
|
|
supplied without flask holders Flask loading capacity (approx) 50 ~ 100 ml 41 ea 200 ~ 300 ml 25 ea 500 ml 25 ea 1000 ml 16 ea 2000 ml 9 ea 3000 ml 9 ea 5000 ml 5 ea |
|
|
|
PHF-P71 |
Dedicated Flask Holder Platform W700 x D650 mm |
|
|
|
|
Including 72 ea x 50 ~ 100 ml polycarbonate flasks holder |
|
|
|
PHF-P72 |
Dedicated Flask Holder Platform W700 x D650 mm |
|
|
|
|
Including 42 ea x 200 ~ 300 ml polycarbonate flasks holder |
|
|
|
PHF-P73 |
Dedicated Flask Holder Platform W700 x D650 mm |
|
|
|
|
Including 25 ea x 500 ~ 1000 ml polycarbonate flasks holder |
|
|
|
PHF-M70 |
Non-Slip Rubber Mat W700 x D650 mm |
|
|
|
|
|
|
|
|
Art No. |
Polycarbonate Flask Holder (Size Adjustable) |
|
|
|
PHF-P01 |
50 ~ 100 ml |
|
PHF-P02 |
200 ~ 300 ml |
||
|
PHF-P03 |
500 ~ 1000 ml |
||
|
|
|
||
|
|
|
||
|
|
|
||
|
|
|
||
|
|
|
Art No. |
Stainless Steel Flask Holder (Size Adjustable) |
|
|
|
PHF-S01 |
100 ml |
|
PHF-S02 |
250 ml |
||
|
PHF-S03 |
500 ml |
||
|
PHF-S04 |
1000 ml |
||
|
PHF-S05 |
2000 ml |
||
|
PHF-S06 |
3000 ml |
||
|
PHF-S07 |
5000 ml |
||
|
|
|
Art No. |
Test Tube Holder |
|
|
|
PHF-T01 |
8 mm Dia. for 80 test tubes |
|
PHF-T02 |
10 mm Dia. for 80 test tubes |
||
|
PHF-T03 |
12 mm Dia. for 54 test tubes |
||
|
PHF-T04 |
14 mm Dia. for 54 test tubes |
||
|
PHF-T05 |
16 mm Dia. for 30 test tubes |
||
|
PHF-T06 |
25 mm Dia. for 15 test tubes |
||
|
PHF-T07 |
35 mm Dia. for 8 test tubes |
Reciprocal Shaker
JSOS-350R Reciprocal Shaker designed for agitation of samples in a container (e.g. flasks, bottles, tubes) within ambient condition to aerating, mixing and extracting. Various application in chemistry, biomedical, pharmaceutical, cell culture, tissue culture, environmental and agriculture applications.
Orbital Shaker
JSOS-350Q Orbital Shaker designed for agitation of samples in a container (e.g. flasks, bottles, tubes) within ambient condition to aerating, mixing and extracting. Various application in chemistry, biomedical, pharmaceutical, cell culture, tissue culture, environmental and agriculture applications.
Tabletop Shaker
JSOS-500 Orbital Shaker is heavy duty and large capacity shaker for agitating samples in a container (e.g. flasks, bottles, tubes) in ambient condition to aerating, mixing and extracting samples. Various application in chemistry, biomedical, pharmaceutical, cell culture, tissue culture, environmental and agriculture applications.
Compact Orbital Shaker
JSOS-300 Orbital Shaker is compact and practical shaker for agitating samples in a container (e.g. flasks, bottles, tubes) in ambient condition to aerating, mixing and extracting samples. Various application in chemistry, biomedical, pharmaceutical, cell culture, tissue culture, environmental and agriculture applications.
