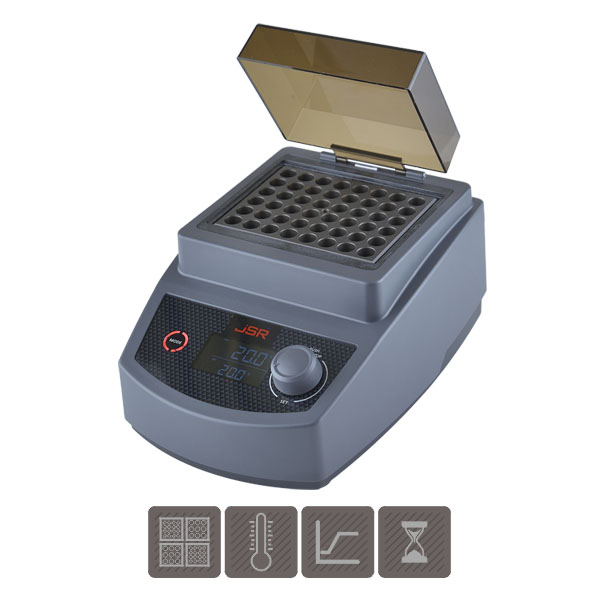

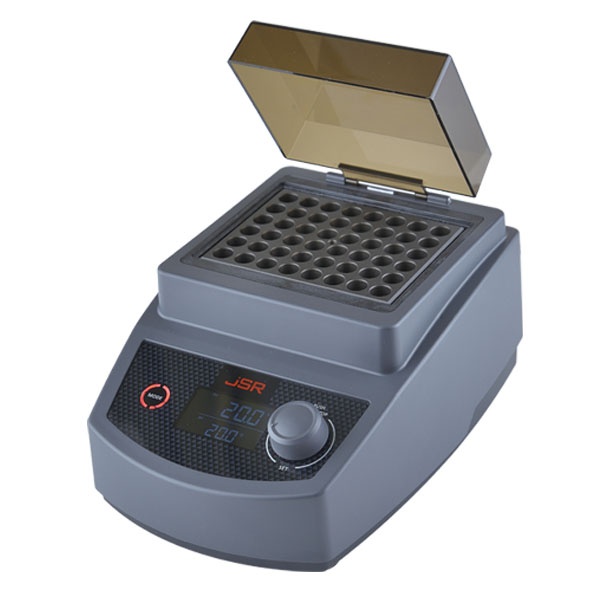

Dry Bath Block Heater
JSDB-Series Dry Bath Block Heater provides precise and constant temperature control source in the laboratory by heating interchangeable modular aluminum block. Ideal for microbiology and clinical laboratories for incubation, enzyme assay, inactivation, boiling, wet washing, extraction, sample concentration and many other applications. The anodized modular aluminum blocks accommodate PCR tubes, eppendorf tubes, microcentrifuge tubes. Interchangeable modular blocks to accommodate a variety of tubes.
 |
jsdb-01t-eng.pdf |

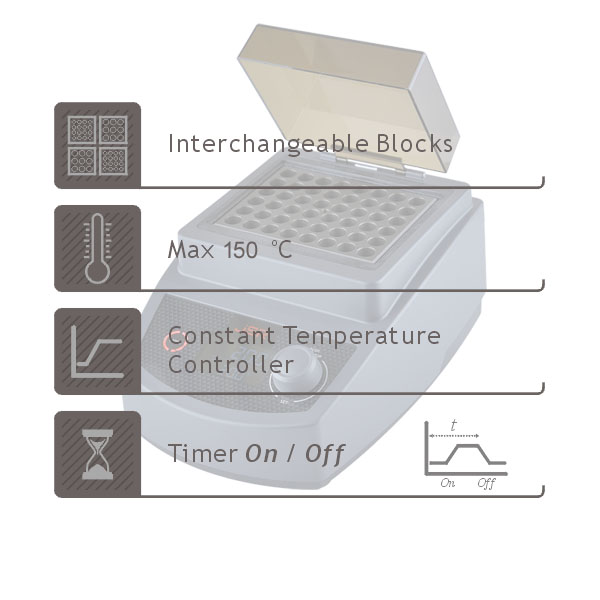

Features
|
Controller |
|
Advanced MCU processor applies precise temperature control technology Touch-sensitive Multi-Functional Capacitive Button compatible to all kind of latex gloves as well as finger touch. Easy-to-use Jog Dial for quick and convenient setting of temperature and timer. Push to Run and Stop control. High-fidelity clear back light LCD displays complete setting and operating condition at a glance. Easy to monitoring set values, present temperature and time.
|
|
Construction |
|
Transparent polycarbonate lid Durable molded heater Rugged ABS plastic body High quality heat resistant PPS block bath and insulation
|
|
Performance |
|
Temperature setting from ambient +5 oC to 150 oC in 0.1 oC display resolution within ±0.1℃ accuracy at 37°C CA sensor embedded in top plate to measure and control temperature Timer setting range from 1 min to 99 hr 59 min
|
|
Convenience |
|

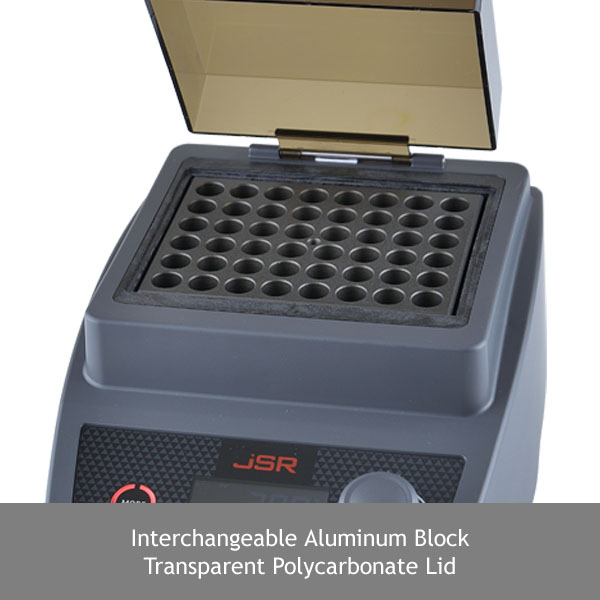

Interchangeable aluminum block Aluminum block for 0.2 ml PCR tube to ø18 mm tube Transparent polycarbonate lid
|
|
Safety |
|
Over temperature protection Over current protection
|
Specifications
|
Heating |
Heat transduction through aluminum block |
|
Temp. Range |
ambient + 10°C ~ 150°C |
|
Accuracy |
± 0.1°C at 37.0°C ± 0.2°C at 90.0°C
± 0.4°C at 135.0°C |
|
Control |
Advanced MCU processor with Timer |
|
Sensor |
Class A Pt-100 Ω Sensor |
|
Safety |
Over-Temperature Cut-Off |
|
|
Over Current Cut-Off |
|
Material |
Body - ABS Plastic |
|
|
Bath – Heat Resistant PPS Plastic |
|
|
Block – Anodized Aluminum |
|
Electric |
220±10% VAC 50/60Hz 1-Phase |
|
Plug config. |
CEE 7/7 Schuko |
Models
|
Art. No. |
|
|
Temperature Control |
|
|
Temp. Range |
Ambient +5°C to +150°C |
|
Temp. Accuracy |
±0.1°C at 37°C |
|
|
±0.2°C at 90°C |
|
|
±0.4°C at 135°C |
|
Resolution |
0.1°C Display, 0.1°C Control |
|
Heat up speed |
Approx 5°C /min |
|
|
|
|
Dimensions |
|
|
Block (W x D x H) |
120 x 92 x 40 / 50 mm |
|
Outer (W x D x H) |
170 x 250 x 145 mm |
|
|
|
|
Controller |
|
|
Type |

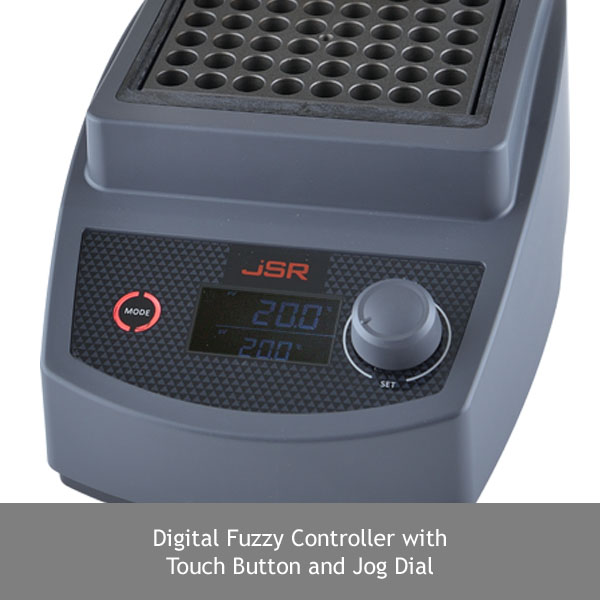

Digital Fuzzy Control with Capacitive Touch Button and Jog Dial |
|
Timer |
99hr 59min by 1 min division |
|
Display |
Full Size Digital Back Light LCD Display |
|
|
Independent ON/OFF Switch |
|
|
|
|
Heater |
|
|
Type |
Molded heater |
|
Heater Output |
300 Watt |
|
|
|
|
Safety Data |
|
|
Safety Device |
Over Temperature Protection |
|
|
Over Load Protection |
|
|
Over Current Protection |
|
|
|
|
Material Data |
|
|
Body |
ABS |
|
Block Bath |
PPS |
|
Lid |
Polycarbonate |
|
Block |
Anodized Aluminum |
|
|
|
|
Electrical Data |
|
|
Rated voltage [V] |
230 ± 10% VAC |
|
Power frequency [Hz] |
50/60Hz |
|
Nominal power [W] |
300 |
|
Unit fuse [A] |
0 |
|
Phase (Nominal voltage) |
1~ |
|
Plug configuration |
CEE 7/7 Schuko or BS 1363 |
|
|
|
|
Usable Condition |
|
|
Temp. & Humidity |
5oC - 40 oC, < 80% RH |
|
|
|
|
Packaging Data |
|
|
Shipping Dims. (W x D x H mm ) |
320 x 230 x 260 |
|
Type of packaging |
Carton |
|
Net Weight (kg) |
1.6 |
|
Shipping Weight (kg) |
2.1 |
Ordering Information
|
Art. No. |
Descriptions |
Voltage |
|
JSDB-01T-PK |
Dry Bath Heating Block SET |
230 VAC 1~ ph 50/60Hz |
|
including |
PHB-20 Microtube Block 1.5/2.0ml, , Ø11 x 48 hole (H36mm) |
|
|
|
|
|
|
JSDB-01T |
Dry Bath Heating Block MAIN BODY ONLY |
230 VAC 1~ ph 50/60Hz |
|
|
|
|
Optional Accessories
|
Art. No. |
Descriptions |
|
PHB-02 |
Microtube Block for 0.2ml Tubes, Ø6 x 96 hole (H16mm) |
|
PHB-05 |
Microtube Block for 0.5ml Tubes, Ø7.7 x 63 hole (H29.5mm) |
|
PHB-20 |
Microtube Block for 1.5/ 2.0ml Tubes, Ø11 x 48 hole (H36mm) |
|
PHB-15 |
Conical tube Block for 15ml Tubes, Ø16 x 15 hole (H47mm) |
|
PHB-50 |
Conical tube Block for 50ml Tubes, Ø28.7 x 8 hole (H47mm) |
|
PHB-1248 |
Standard test tubes Block, Ø12 x 48 hole (H35mm) |
|
PHB-1330 |
Standard test tubes Block, Ø13 x 30 hole (H47mm) |
|
PHB-1530 |
Standard test tubes Block, Ø15 x 30 hole (H47mm) |
|
PHB-1624 |
Standard test tubes Block, Ø16.5 x 24 hole (H47mm) |
|
PHB-1824 |
Standard test tubes Block, Ø18 x 24 hole (H47mm) |
|
PHB-100 |
Block Extraction Knob |
