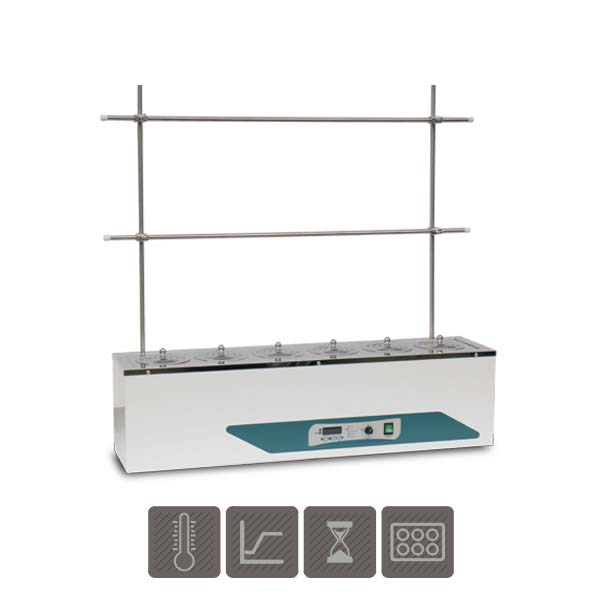

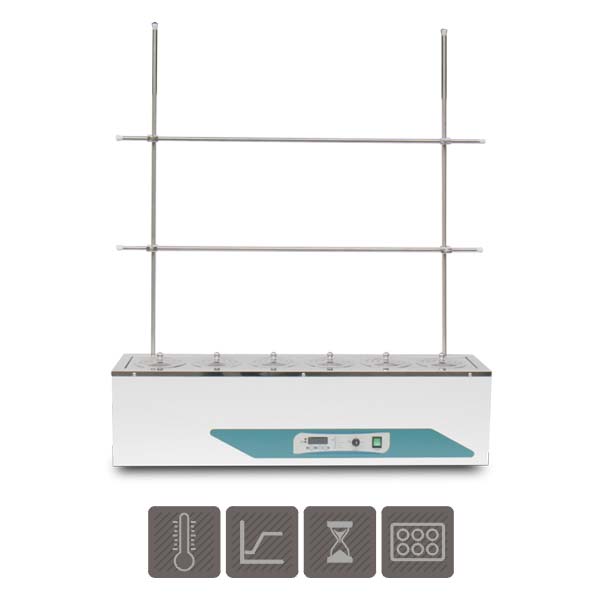

Extraction COD Bath
JSEB-Series Extraction COD Digestion Bath is the most popular thermo reactor for determination Chemical Oxygen Demand in various substances. Chemical Oxygen Demand (COD) is a measure of the capacity of water to consume oxygen during the decomposition of organic matter and the oxidation of inorganic chemicals. Supplied with size adjustable concentric ring covers and frame set to hold glassware. Temperature range from ambient +5°C to 99.9°C
 |
download_catalog_extraction_cod_bath.pdf |
Specifications
|
Heating |
Direct Immersion Sheath Heater |
|
Temp. Range |
ambient + 5°C oC ~ 99.9°C |
|
Accuracy |
± 0.5°C at 60.0°C |
|
Uniformity |
± 1.0°C at 60.0°C |
|
Control |
Microprocessor PID Control Auto START / STOP Timer |
|
Sensor |
Class A Pt-100 Ω Sensor |
|
Safety |
Over-Temperature Cut-Off |
|
|
Over Current Cut-Off |
|
Material |
Body - Epoxy Powder Coated Steel |
|
|
Bath – Polished Stainless Steel 304 |
|
|
Concentric Ring Cover –Stainless Steel 304 |
|
|
Heater Cover – Perforated Stainless Steel 304 |
|
Electric |
220±10% VAC 50/60Hz 1-Phase |
|
Plug config. |
CEE 7/7 Schuko or BS 1363 |
Models
|
Art No. |
|||||
|
No. of Extraction Holes |
6 |
2 x 3 |
2 x 4 |
2 x 5 |
|
|
Dimensions |
Inner |
920 x 162 x 150 |
490 x 322 x 150 |
650 x 322 x 150 |
850 x 322 x 150 |
|
W x D x H mm |
Outer |
980 x 265 x 300 |
665 x 395 x 300 |
815 x 395 x 300 |
965 x 395 x 300 |
|
Temperature Range |
ambient+5°C to 99.9°C |
||||
|
Accuracy at 60.0°C |
± 0.5°C |
||||
|
Uniformity at 60.0°C |
± 1.0°C |
||||
|
Standard Accessories |
Stainless Steel Frame Set, 4 ea x PHH-X01 Pipe Holder |
||||
|
Drain Valve |
yes |
||||
|
Heater Capacity |
3.0 kW |
3.0 kW |
4.0 kW |
5.0 kW |
|
|
Power Rating |
13.6 Amp |
13.6 Amp |
18.2 Amp |
23.0 Amp |
|
|
Power Plug |
CEE 7/7 Schuko |
CEE 7/7 Schuko |
30 Amp |
30 Amp |
|
Features
|
Controller |
|
JSC-0D Digital PID Controller ±0.1°C Digital PID Controller with LED Display Automatic START/STOP timer Adjustable timer scale 99min 59sec / 99hr 59min / 99day 23hr or continuous operation Temperature calibration Auto-tuning function Class A Pt-100 Ω sensor
|
|
Construction |
|
Durable epoxy powder coated metallic casing Corrosion resistant Stainless Steel 304 bath Corrosion resistant Stainless Steel 304 sheath immersion heater Corrosion resistant Stainless Steel 304 lid with ring cover included Perforated heater cover (bottom plate) included
|
|
Performance |
|
Maintain water temperature from ambient + 5°C to 99.9°C Excellent control accuracy within ± 0.5°C and thermal uniformity within ± 1.0°C Corrosion resistant Stainless Steel 304 sheath immersion heater directly heating water in the bath to reach set temperature quickly Perforated heater cover helps convection of heated water circulation throughout bath to maintain thermal uniformity of the bath
|
|
Convenience |
|

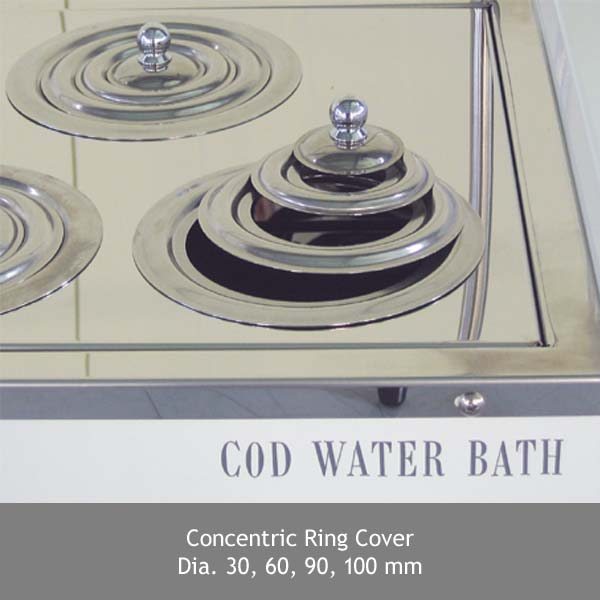

Easy to clean Polished Stainless Steel 304 Bath Perforated stainless steel bottom plate Drain for easy emptying of the bath fluid Supplied with stainless steel cover with concentric ring cover set of various size openings of dia. 30mm, 60mm, 90mm, 110mm Stainless steel pipe frames set included to hold glassware clamps
|
|
Safety |
|
DUAL OVER TEMP. CUT-OFF Digital system cut-off heater and AUDIO VISUAL ALARM in case +2°C above set temperature Analog system cut-off heater 10% above set temp. MAX TEMP CUT-OFF heater and AUDIO VISUAL ALARM when +1°C above maximum limit SENSOR DISCONNECTION ALARM OVER CURRENT CUT-OFF : Electric leakage breaker
|
Ordering Information
|
Art No. |
Descriptions |
Elec. Req. |
Holes |
Net Wt. |
Ship Wt. |
|
JSEB-60T |
Extraction COD Bath |
220 VAC 50/60 Hz |
6 |
18 kg |
20 kg |
|
JSEB-62T |
Extraction COD Bath |
220 VAC 50/60 Hz |
2 x 3 |
18 kg |
20 kg |
|
JSEB-82T |
Extraction COD Bath |
220 VAC 50/60 Hz |
2 x 4 |
20 kg |
22 kg |
|
JSEB-102T |
Extraction COD Bath |
220 VAC 50/60 Hz |
2 x 5 |
22 kg |
24 kg |
Optional Accessories
| Art No. | PHH-X01 | Pipe Holder | |
 |
|||
| Art No. | PHH-X02 | Clamp Holder max grip 19mm | |
 |
|||
| Art No. | PHH-X03 | 2-prong clamp Length 60 mm | |
 |
|||
| Art No. | PHH-X04 | 3-prong clamp Length 60 mm | |
 |
|||
| Art No. | PHH-X05 | 3-prong clamp Length 80 mm | |
 |
