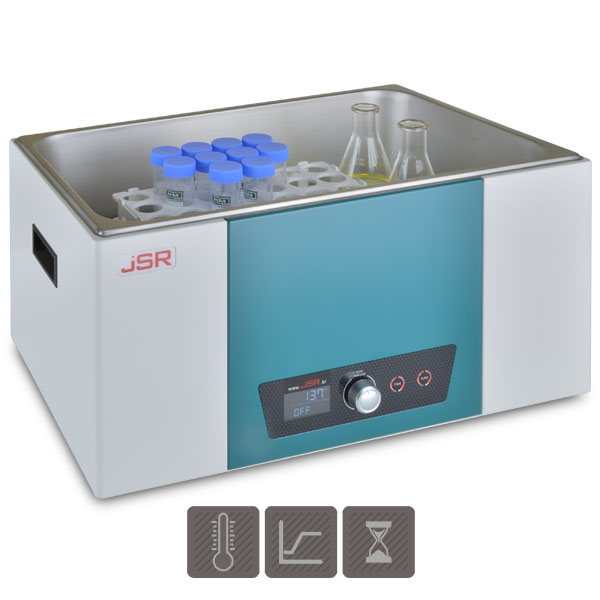

Heated Digital Water Bath
JSWB-T Series Digital Water Bath to provides constant temperature environment with heated water. Suitable for biotechnology, chemistry, medical, environmental and general laboratory applications of temperature range from ambient +5 oC to 99 oC
 |
jswb-xxt-eng.pdf |
Common Specifications
|
Heating |
Direct Immersion Sheath Heater |
|
Temp. Range |
ambient + 5 oC ~ 120 oC |
|
Accuracy |
± 0.2 oC at 37.0 oC (JSWB-11T) |
|
Uniformity |
± 0.8 oC at 37.0 oC (JSWB-11T) |
|
Control |
Digital Microprocessor PID Temperature Controller |
|
|
3-Zone Temperature Control Algorithm |
|
|
3-Point Temperature Calibration |
|
|
1-Point Temperature Offset Calibration |
|
Sensor |
Class A Pt-100 Ω Sensor |
|
Safety |
Over-Temperature Cut-Off |
|
|
Over Current Cut-Off |
|
Material |
Body - Epoxy Powder Coated Steel |
|
|
Bath – Electro-polished Seamless Stainless Steel 304 |
|
|
Heater Cover – Perforated Stainless Steel 304 |
|
Electric |
220±10% VAC 50/60Hz 1-Phase |
|
Plug config. |
CEE 7/7 Schuko or BS 1363 |

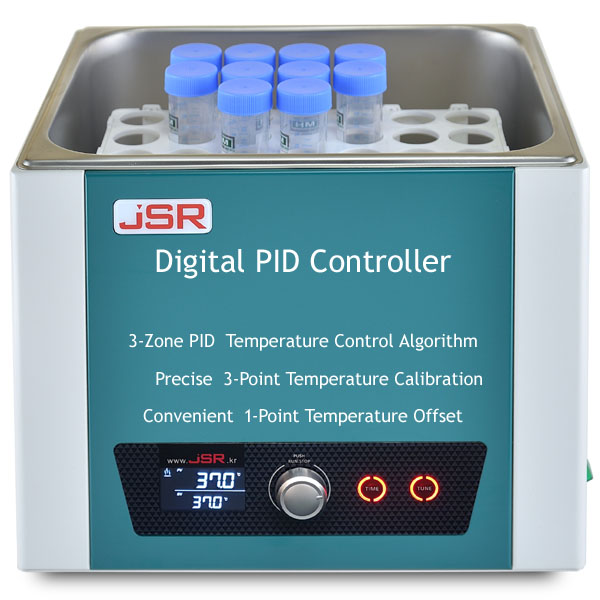

Features
 |
||
 |
 |
 |
|

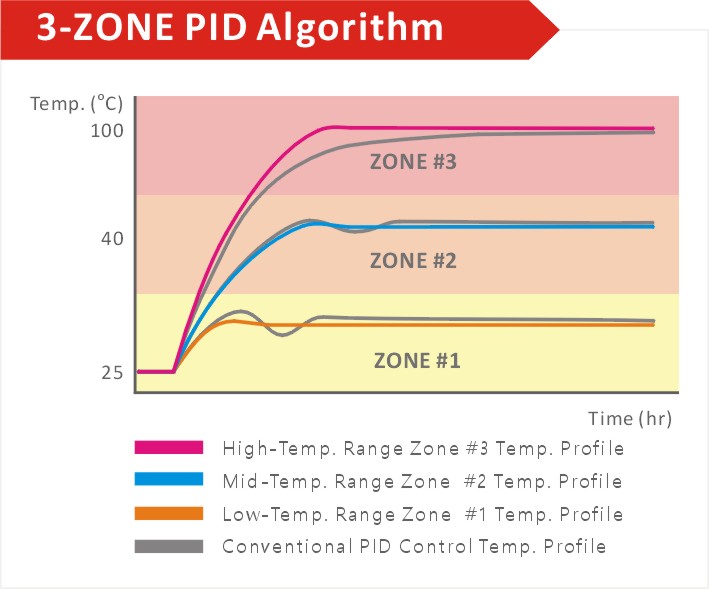

Complete temperature range is divided into three zones (LOW/MIDDLE/HIGH) and each ZONE has its individual PID Algorithm to provides precise and superior temperature control characteristic of whole temperature range. |

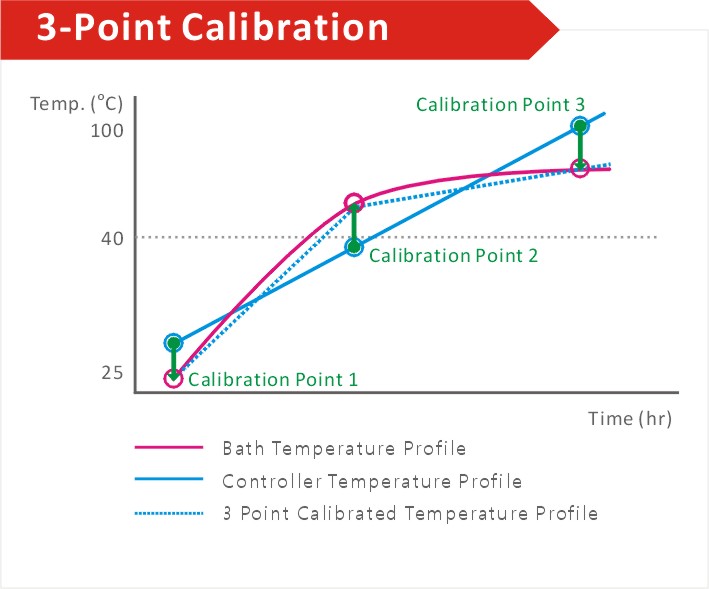

An excellent calibration tool to calibrate chamber at THREE DIFFERENT TEMPEATURE POINTS to adjust multiple TEMPERTURE BIAS to increase temperature accuracy of whole temperature range. |

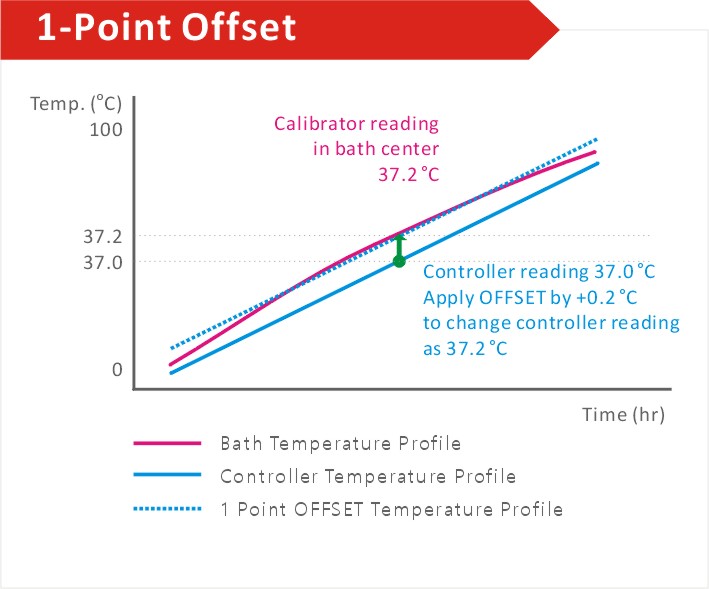

Provides simple and easy calibration tool to calibrate chamber at ONE SPECIFIC TEMPERTURE POINT of frequent use.
|
|

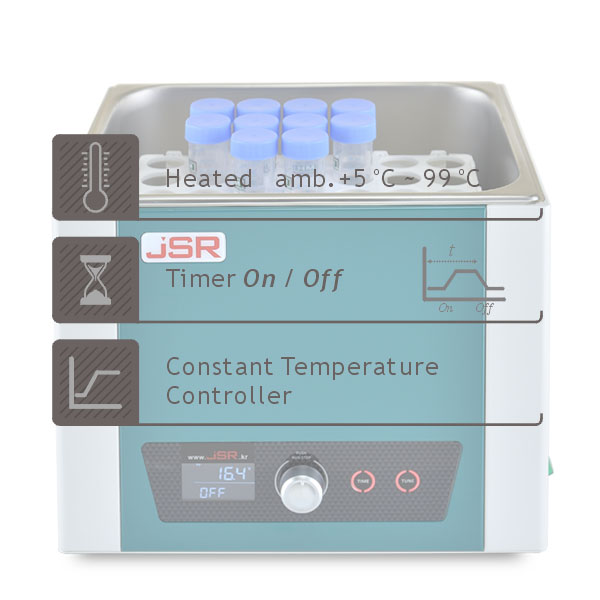

Performance |
|
- Maintain water temperature from ambient + 5 oC to 99 oC - Excellent control accuracy within ± 0.2 oC and thermal uniformity within ± 0.8 oC - Corrosion resistant Stainless Steel 304 sheath immersion heater directly heating water in the bath to reach set temperature quickly - Perforated heater cover helps convection of heated water circulation throughout bath to maintain thermal uniformity of the bath
|
|
Controller |
|
- DIGITAL MICROPROCESSOR PID TEMPERATURE CONTROLLER Integrated Digital Microprocessor Control System - GRAPHIC LCD DISPLAY Back Light Graphic LCD Display provides user-friendly operating information - UV COATED POLYCARBONATE TOUCH PANEL Equipped with Capacitive LED Lighting Touch Button provides sensitive touching operation and durability - ENCODER TYPE JOG DIAL Push to Start and Stop, Rotary turn to change values provides easy and simple user interface - 0.1 oC CONTROL RESOLUTION - TURN-ON TIMER up to 99 hour 59 min and alarm - TURN-OFF DELAY TIMER up to 99 hour 59 min and alarm - Temperature and Timer Memory Function in frequent use - 3-ZONE PID ALGORITHM - 3-POINT CALIBRATION / 1-POINT OFFSET CALIBRATION - POWER and TIMER RESTORE FUNCTION in case electric power outage - CLASS A PT-100 Ω Sensor
|
|
Construction |
|
- Durable epoxy powder coated metallic casing - Corrosion resistant Seamless Electro-Polished Stainless Steel 304 bath - Corrosion resistant Stainless Steel 304 sheath immersion heater - Corrosion resistant Stainless Steel 304 flat lid included - Perforated heater cover (bottom plate) included
|
|
Convenience |
|
- Easy to clean Electro-Polished seamless Stainless Steel 304 Bath - Perforated stainless steel bottom plate - Drain for easy emptying the bath fluid (JSWB-22T, JSWB-30T only) - Supplied with stainless steel Flat Lid to help reduce heat losses and evaporation
|
|
Safety |
|
- MAXIMUM TEMPERATURE LIMIT SETTING, CUT-OFF HEATER AND AUDIO VISUAL ALARM - DUAL OVER TEMPERATURE CUT-OFF BY CONTROLLER AND INDEPENDENT THERMOSTAT Controller Program cut-off heater and AUDIO VISUAL ALARM in case +10 oC above set temperature Independent analog thermostat cut-off heater 10% above set temperature - HIGH TEMPERATURE CUT-OFF AND AUDIO VISUAL ALARM - LOW TEMPERATURE CUT-OFF AND AUDIO VISUAL ALARM - PT SENSOR SHORT OR DISCONNECTION AUDIO VISUAL ALARM - OVER CURRENT CUT-OFF : Fuse
|
Models
|
DESCRIPTIONS |
||||
|
Dimension Data |
|
|
|
|
|
Bath Volume |
6 Liters |
11 Liters |
22 Liters |
30 Liters |
|
Inner Dims. (W x D x H mm) |
300 x 155 x 150 |
300 x 240 x 150 |
500 x 300 x 150 |
500 x 300 x 200 |
|
Usable Dims. (W x D x H mm) |
300 x 155 x 110 |
300 x 240 x 110 |
500 x 300 x 110 |
500 x 300 x 160 |
|
Outer Dims. (W x D x H mm) |
340 x 200 x 270 |
340 x 285 x 270 |
545 x 345 x 270 |
545 x 345 x 320 |
|
|
|
|
|
|
|
Performance Data |
|
|
|
|
|
Heating System |
Immersed Heating Element |
|||
|
Temp. Setting Range |
Amb. +5 oC ~ 120.0 oC |
|||
|
Accuracy at 37.0 oC |
±0.2 oC |
← |
← |
±0.2 oC |
|
Uniformity at 37.0 oC |
±0.8 oC |
← |
← |
±1.0 oC |
|
|
|
|
|
|
|
Controller |
|
|
|
|
|
Processor |
Digital Microprocessor PID Temperature Controller |
|||
|
Display |
Back Light Graphic LCD Display |
|||
|
Panel |
UV Coated Polycarbonate Solid Touch Panel |
|||
|
Button |
Capacitive touch LED Lighting Touch Button |
|||
|
Interface |
Push and Rotary encoder type Jog Dial |
|||
|
Control Logic |
3 Zone PID Control |
|||
|
Calibration |
1 Point Temperature OFFSET |
|||
|
|
3 Point Temperature Calibration |
|||
|
Resolution |
0.1 oC |
|||
|
Turn-Off Timer |
Max. 99 hr 59 min |
|||
|
Turn-On Delay Time |
Max. 99 hr 59 min |
|||
|
Sensor |
CLASS A PT-100 Ω Sensor |
|||
|
Power Restoration |
Power and Timer Restoration Function in case of power outage |
|||
|
|
|
|
|
|
|
Safety Data |
|
|
|
|
|
Safety Device |
Max. Temp. Limit and Cut-Off audio visual alarm |
|||
|
|
Dual Over Temp. Cut-Off by Controller and Thermostat |
|||
|
|
High Temp. Cut-Off audio visual alarm |
|||
|
|
Low Temp. Cut-Off audio visual alarm |
|||
|
|
PT-Sensor Short or Open audio visual alarm |
|||
|
|
Over Current Cut-Off |
|||
|
|
|
|
|
|
|
Material Data |
|
|
|
|
|
Body |
Epoxy Powder Coated Steel |
|||
|
Bath |
Seamless Stainless Steel 304 (AISI304) |
|||
|
Heating Element |
Stainless Steel 304 (AISI304) |
|||
|
|
|
|
|
|
|
Electrical Data |
|
|
|
|
|
Rated voltage |
230 ± 10% VAC |
|
|
|
|
Power frequency |
50 / 60Hz |
|
|
|
|
Heater Output |
600 W |
1.0 kW |
1.5 kW |
2.0 kW |
|
Power Consumption |
600 W 2.7 amp |
1.0 kW 4.6 amp |
1.5 kW 6.8 amp |
2.0 kW 9.2 amp |
|
Phase |
1 Phase |
|
|
|
|
Plug configuration |
CEE 7/7 Schuko or BS 1363 |
|||
|
|
|
|
|
|
|
Usable Condition |
|
|
|
|
|
Temp. & Humidity |
5oC - 40 oC, < 80% RH |
|||
|
|
|
|
|
|
|
Packaging Data |
|
|
|
|
|
Shipping Dims. (WxDxH mm ) |
450 x 350 x 320 |
450 x 350 x 320 |
600 x 400 x 320 |
600 x 400 x 380 |
|
Type of packaging |
Carton |
← |
← |
← |
|
Net Weight |
5.0 kg |
7.0 kg |
10.0 kg |
12.0 kg |
|
Shipping Weight |
6.0 kg |
8.0 kg |
11.0 kg |
13.0 kg |
