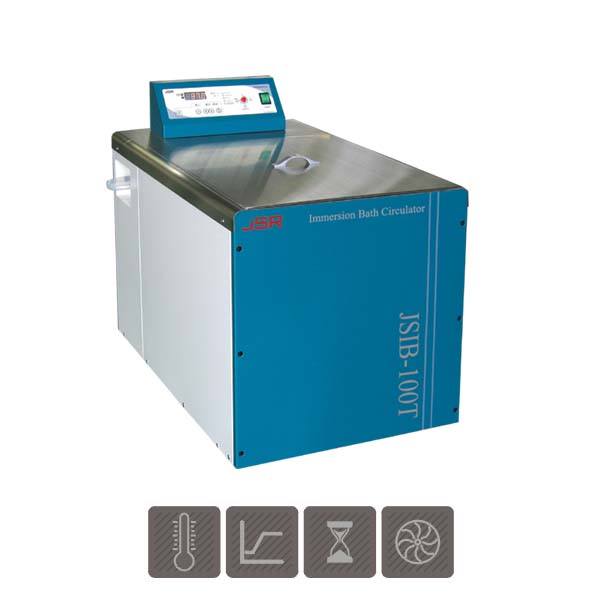

Large Capacity Circulation Bath
Heated circulating open bath system controls temperature range from ambient +5°C to 99°C, with internal and external circulation pump. Internal circulation allows precise thermal uniformity within ±0.2°C comparing to the conventional heated bath without circulation pump. External circulation pump enables to circulates heated water (liquid) to external equipments such applications as warming of reagents and culture media, thawing or tempering samples or controlling the temperature of laboratory equipments. External circulation pump capacity 13 liters/min. in flow rate and 0.5 bar in pressure.
 |
download_catalog_circulation_bath.pdf |
Specifications
|
Heating |
Direct Immersion Sheath Heater |
|
|
With Magnetic Driven internal/external circulation pump |
|
Temp. Range |
ambient + 5°C ~ 99°C |
|
Accuracy |
± 0.2°C at 37.0°C (JSIB-50T) |
|
Uniformity |
± 0.5°C at 37.0°C (JSIB-50T) |
|
Control |
Microprocessor PID Control Auto START / STOP Timer |
|
Sensor |
Class A Pt-100 Ω Sensor |
|
Circulation |
Magnetic Driven Circulation Pump |
|
Safety |
Over-Temperature Cut-Off |
|
|
Over Current Cut-Off |
|
|
Low Water Level Cut-Off |
|
Material |
Body - Epoxy Powder Coated Steel |
|
|
Bath –Stainless Steel 304 |
|
|
Lid –Stainless Steel 304 |
|
Electric |
220±10% VAC 50/60Hz 1-Phase |
|
Plug config. |
CEE 7/7 Schuko or BS 1363 |
Models
|
Art No. |
|||
|
Bath Volume (Capacity) |
50 L |
100 L |
|
|
Dimensions |
Inner |
300 x 400 x 400 |
400 x 500 x 500 |
|
W x D x H mm |
Usable |
300 x 400 x 350 |
400 x 500 x 450 |
|
|
Outer |
385 x 665 x 685 |
485 x 765 x 785 |
|
Temperature Range |
ambient+5°C to 99°C |
||
|
Accuracy at 37.0°C |
± 0.2°C |
||
|
Uniformity at 37.0°C |
± 0.5°C |
||
|
Water Circulation |
Magnetic Driven Circulation Pump |
||
|
Drain Valve |
Yes |
||
|
Inlet/Outlet Fitting |
∅9 mm hose barb |
||
|
Heater Capacity |
3.0 kW |
5.0 kW |
|
|
Power Rating |
14.0 Amp |
23.0 Amp |
|
|
Power Plug |
CEE 7/7 Schuko |
30 Amp |
|

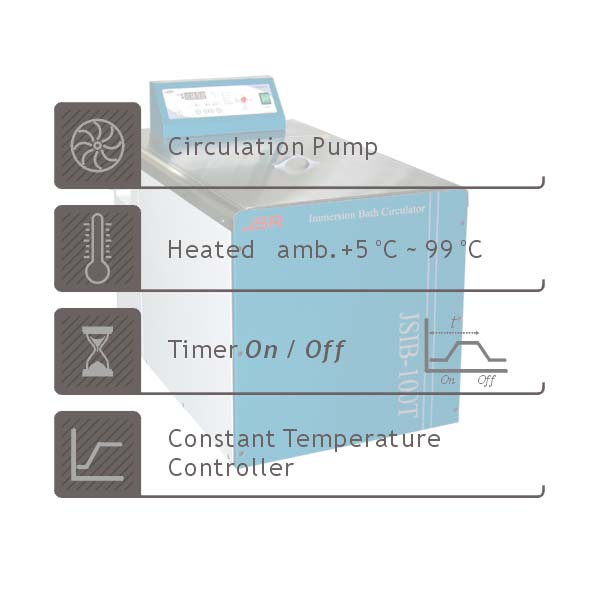

Features
|
Controller |
|
JSC-0D Digital PID Controller ±0.1°C Digital PID Controller with LED Display Automatic START/STOP timer Adjustable timer scale 99min 59sec / 99hr 59min / 99day 23hr or continuous operation Temperature calibration Auto-tuning function Class A Pt-100 Ω sensor
|
|
Construction |
|
Durable epoxy powder coated metallic casing Corrosion resistant Stainless Steel 304 bath Corrosion resistant Stainless Steel 304 sheath immersion heater Corrosion resistant Stainless Steel 304 lid Perforated stainless steel heater cover
|
|
Performance |
|
Temperature range of ambient + 5°C to 99°C Excellent control accuracy within ± 0.2°C and thermal uniformity within ± 0.5°C Magnetic Driven circulation pump circulates thermal fluid within the bath for higher thermal uniformity or circulates thermal fluid to external closed loop with flow rate 13 liter/min and 0.5 bar in pressure Corrosion resistant Stainless Steel 304 sheath immersion heater directly heating water in the bath to reach set temperature quickly
|
|
Convenience |
|
Easy to clean Stainless Steel 304 Bath Corrosion resistant polycarbonate magnetic driven pump Perforated stainless steel heater cover Drain for easy emptying of the bath fluid Supplied with stainless steel flat cover to help reduce heat losses and evaporation Easy to connect ∅9 mm hose barb fitting for external circulation
|
|
Safety |
|
DUAL OVER TEMP. CUT-OFF Digital system cut-off heater and AUDIO VISUAL ALARM in case +2°C above set temperature Analog system cut-off heater 10% above set temp. MAX TEMP CUT-OFF heater and AUDIO VISUAL ALARM when +1°C above maximum limit SENSOR DISCONNECTION ALARM LOW WATER LEVEL CUT-OFF OVER CURRENT CUT-OFF : Fuse
|
Ordering Information
|
Art No. |
Descriptions |
Elec. Req. |
Capacity |
Net Wt. |
Ship Wt. |
|
JSIB-50T |
Immersion Circulation Bath |
220 VAC 50/60 Hz |
50 L |
32 kg |
47 kg |
|
JSIB-100T |
Immersion Circulation Bath |
220 VAC 50/60 Hz |
100 L |
50 kg |
55 kg |
