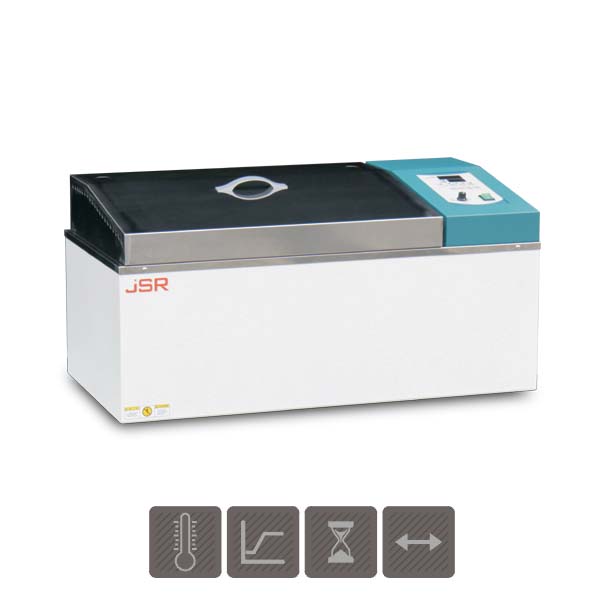

Shaking Water Bath
JSSB-Series Water Bath controls precise temperature and integral linear shaking system with universal spring wire rack which will accommodates almost any size and combination of vessels. Ideal for chemistry, chemical engineering, cell culture, biotechnology, extraction and laboratory applications demanding constant temperature and mixing at the same time.
 |
download_catalog_shaking_water_bath.pdf |
Specifications
|
Heating |
Direct Immersion Sheath Heater |
|
Temp. Range |
ambient + 5°C ~ 99°C |
|
Accuracy |
± 0.2°C at 37.0°C (JSSB-30T) |
|
Uniformity |
± 0.5°C at 37.0°C (JSSB-30T) |
|
Shaking Motion |
Linear (Reciprocal) Motion |
|
Speed Range |
20 ~ 120 rpm |
|
Control |
Integrated Microprocessor PID Control, Heating or Shaking Auto STOP Timer |
|
Sensor |
Class A Pt-100 Ω Sensor |
|
Safety |
Over-Temperature Cut-Off |
|
|
Over-Speed Cut-Off |
|
|
Over Current Cut-Off |
|
Material |
Body - Epoxy Powder Coated Steel |
|
|
Bath – Electro-polished Stainless Steel 304 |
|
|
Spring Wire Rack : Stainless Steel 304 |
|
Electric |
220±10% VAC 50/60Hz 1-Phase |
|
Plug config. |
CEE 7/7 Schuko or BS 1363 |
Models
|
Art No. |
|||
|
Bath Volume |
30 L |
50 L |
|
|
Dimensions |
Inner |
500 x 300 x 190 |
600 x 380 x 220 |
|
W x D x H mm |
Outer |
760 x 370 x 400 |
870 x 450 x 430 |
|
|
Spring Rack |
350 x 210 x 140 |
470 x 250 x 140 |
|
Temperature Range |
ambient+5°C to 99°C |
||
|
Accuracy at 37.0°C |
± 0.2°C |
||
|
Uniformity at 37.0°C |
± 0.5°C |
||
|
Shaking Speed Range |
20 ~ 120 rpm / 25 mm stroke |
||
|
Accuracy |
± 1 rpm |
||
|
Drain Valve |
Yes |
||
|
Heater Capacity |
2.0 kW |
3.0 kW |
|
|
Power Rating |
9.2 Amp |
13.8 Amp |
|
|
Power Plug |
CEE 7/7 Schuko European Standard or BS 1363 British Plug |
||
Features
|
Controller |
|
JSC-7S Integrated Digital PID Controller Integrated Digital PID Controller with ±0.1°C temperature control resolution, shaking speed by ±1 rpm Automatic STOP timer for temperature and shaking control independently Adjustable timer scale 99min 59sec / 99hr 59min / 99day 23hr or continuous operation Dual digital LED displays operating status of TEMP, RPM and remaining TIME Temperature calibration Auto-tuning function Class A Pt-100 Ω sensor
|
|
Construction |
|
Durable epoxy powder coated metallic casing Corrosion resistant Stainless Steel 304 bath Corrosion resistant Stainless Steel 304 sheath immersion heater Corrosion resistant Stainless Steel 304 lid included Corrosion resistant Stainless Steel Spring Wire Basket included
|
|
Performance |
|
Maintain water temperature from ambient + 5°C to 99°C Excellent control accuracy within ± 0.2°C and thermal uniformity within ± 0.5°C Corrosion resistant Stainless Steel 304 sheath immersion heater directly heating water in the bath to reach set temperature quickly Stainless Steel 304 Spring Wire Rack accommodates various shape of vessels Powerful AC motor support linear shaking motion up to 120 rpm
|
|
Convenience |
|

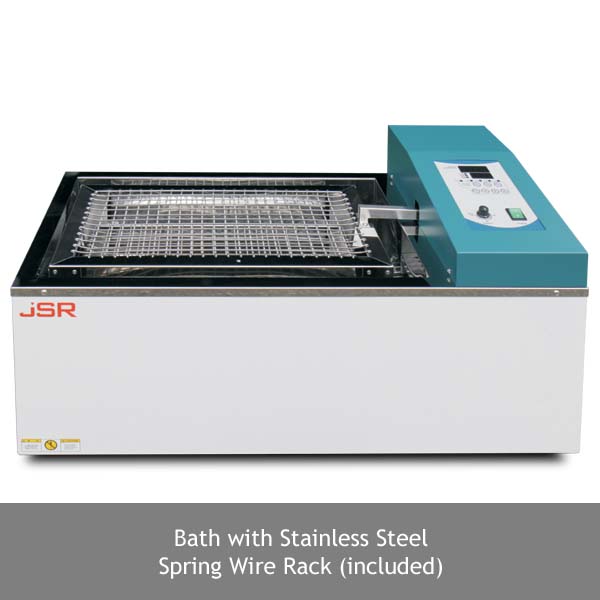

Easy to clean Stainless Steel 304 Bath Spring Wire Rack to accommodates almost any size and combination of vessels Drain for easy emptying of the bath fluid Supplied with stainless steel gabled cover to help reduce heat losses and evaporation
|
|
Safety |
|
DUAL OVER TEMP. CUT-OFF Digital system cut-off heater and AUDIO VISUAL ALARM in case +2°C above set temperature Analog system cut-off heater 10% above set temp. MAX TEMP CUT-OFF heater and AUDIO VISUAL ALARM when +1°C above maximum limit OVER SPEED CUT-OFF and ALARM SENSOR DISCONNECTION ALARM MOTOR FAILURE ALARM OVER CURRENT CUT-OFF : Electric Leakage Breaker
|
Ordering Information
|
Art No. |
Descriptions |
Elec. Req. |
Capacity |
Net Wt. |
Ship Wt. |
|
JSSB-30T |
Shaking Water Bath |
220 VAC 50/60 Hz |
30 L |
27 kg |
31 kg |
|
JSSB-50T |
Shaking Water Bath |
220 VAC 50/60 Hz |
50 L |
35 kg |
40 kg |
