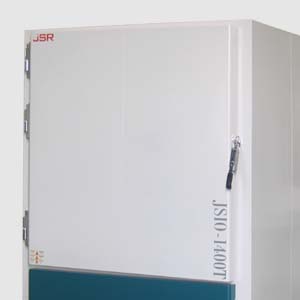

Heavy Duty Industrial Oven
Specifications
|
Heating |
Forced Air Convection |
|
|
Horizontal Air Flow |
|
Temp. Range |
ambient + 10°C ~ 250°C |
|
Accuracy |
± 0.3°C at 120°C (JSIO-400T) |
|
Uniformity |
± 5.0°C at 120°C (JSIO-400T) |
|
Control |
Microprocessor PID Control Auto START / STOP Timer |
|
Sensor |
Class A Pt-100 Ω Sensor |
|
Safety |
Over-Temperature Cut-Off |
|
|
Over Current Cut-Off |
|
Material |
Body - Epoxy Powder Coated Steel |
|
|
Chamber – Stainless Steel 304 and Galvanized Steel (EGI) |
|
|
Insulation – 50mm thick woven mineral wool |
|
|
Floor Standing with Caster |
|
|
Shelf -including perforated stainless steel shelf |
|
Electric |
220±10% VAC 50/60Hz 1-Phase or 380±10% VAC 50/60Hz 3-Phase-4-Wire |
|
Plug config. |
30 AMP |
Models
|
Art No. |
||||
|
Chamber Volume |
410 L |
960 L |
1386 L |
|
|
Dimensions |
Inner |
650 x 600 x 1050 |
1000 x 800 x 1200 |
1100 x 1050 x 1200 |
|
W x D x H mm |
Outer |
935 x 835 x 1810 |
1285 x 1035 x 1960 |
1385 x 1235 x 1960 |
|
|
Clearance |
935 x 845 x 1820 |
1285 x 1045 x 1970 |
1385 x 1245 x 1970 |
|
Temperature Range |
ambient +10°C to 250°C |
|||
|
Accuracy at 120°C |
± 0.3°C |
± 0.5°C |
± 0.5°C |
|
|
Uniformity at 120°C |
± 5.0°C |
± 6.0°C |
± 8.0°C |
|
|
Heat up time to 120 oC |
20 min. |
25 min. |
25 min. |
|
|
No. of Shelves / Max. No. |
3 / 8 |
3 / 8 |
3 / 8 |
|
|
No. of Ventilation damper |
1 |
|||
|
Electrical Requirement |
220 VAC 50/60Hz or 380VAC 50/60Hz 3P 4W |
|||
|
Heater Capacity |
4.5 kW |
7.5 kW |
10.5 kW |
|
|
Power Rating |
22.0 Amp |
21.0 Amp |
30.0 Amp |
|
|
Power Plug |
220 VAC 30 AMP |
380 VAC 4-Wire |
380 VAC 4-Wire |
|
Features
| Construction | Chamber | Adjustable Air Damper | ||
 |
 |
 |
||
| PC Communication | Safety | |||
 |
 |
|
Controller |
|
JSC-0D Digital PID Controller ±0.1°C Digital PID Controller with LED Display Automatic START/STOP timer Adjustable timer scale 99min 59sec / 99hr 59min / 99 day 23hr or continuous operation Temperature calibration Auto-tuning function Class A Pt-100 Ω sensor
|
|
Construction |
|
Durable epoxy powder coated metallic casing Ventilation damper Corrosion resistant Stainless Steel 304 and galvanized steel chamber
|
|
Performance |
|

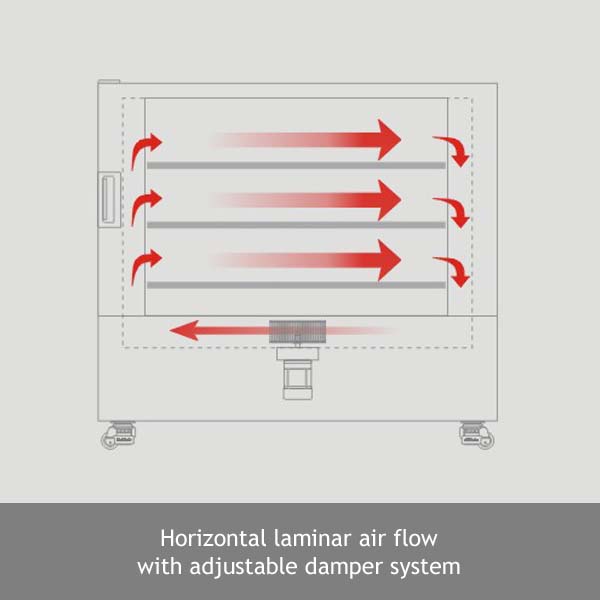

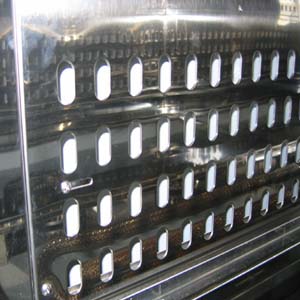

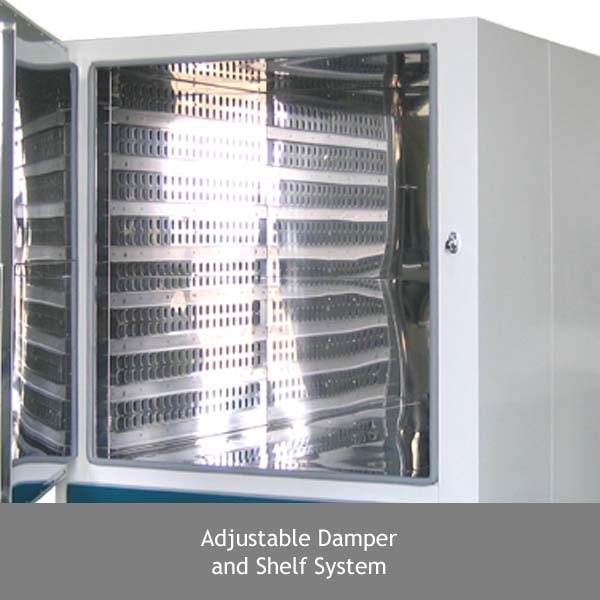

High capacity powerful sirocco blowers provide big volume of horizontal air flow Adjustable damper system on each shelf level allow maintaining optimum air circulation throughout the chamber to achieve excellent temperature uniformity and operational condition Separate heating compartment located on bottom plate prevents contamination and maintenance free 50mm thick high thermal efficiency mineral wool with woven aluminum barrier sheet saves energy and less dust
|
|
Convenience |
|

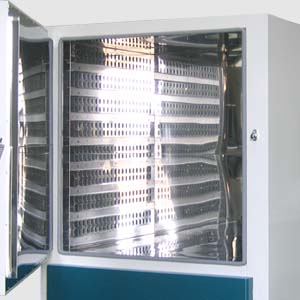

Floor standing industrial scale big volume oven provides more throughput and productivity of sample treatment Corrosion resistant Stainless Steel 304 and galvanized steel chamber Removable and height adjustable 3 tier shelf Outer door with silicone gasket and compression door lock Opening size adjustable ventilation damper Caster for easy transport
|
|
Safety |
|
DUAL OVER TEMP. CUT-OFF Digital system cut-off heater and AUDIO VISUAL ALARM in case +2°C above set temperature Analog system cut-off heater 10% above set temp. MAX TEMP CUT-OFF heater and AUDIO VISUAL ALARM when +1°C above maximum limit DOOR SENSOR : Non-contact magnetic door switch cut-off heater and/or blower when door opened SENSOR DISCONNECTION ALARM OVER CURRENT CUT-OFF : Electrical Leakage Breaker
|
Ordering Information
|
Art No. |
Descriptions |
Elec. Req. |
Capacity |
Net Wt. |
Ship Wt. |
|
JSIO-400T |
Heavy Duty Industrial Oven |
220 or 380 VAC |
410 L |
210 kg |
310 kg |
|
JSIO-960T |
Heavy Duty Industrial Oven |
220 or 380 VAC |
960 L |
280 kg |
440 kg |
|
JSIO-1400T |
Heavy Duty Industrial Oven |
220 or 380 VAC |
1386 L |
350 kg |
470 kg |
Optional Controller
|
Art No. |
Descriptions |
|
OEC-001 |
JSC-1D Digital PID Controller /w RS-232C Interface, PC Software |
|
|
±0.1°C Digital PID Controller with LED Display Automatic START/STOP timer Adjustable timer scale 99min 59sec / 99hr 59min / 99 day 23hr or continuous Temperature calibration Auto-tuning function Class A Pt-100 Ω sensor RS-232C Interface with PC Software
|
|
OEC-003 |
JSC-3D Programmable Controller 1 Pattern 11 Segments /w RS-232C Interface, PC Software |
|
|
16-bit Microprocessor ±0.1°C Digital PID Controller 2-Line Back-Light LCD Display Constant Temperature Mode / Program Mode 1 Pattern 11 Segments 999 times or unlimited repeat. Segment skip function Automatic STOP timer Adjustable timer scale 99min 59sec / 99hr 59min or continuous Temperature calibration Auto-tuning function Class A Pt-100 Ω sensor RS-232C Interface with PC Software
|
|
OEC-005 |
JSC-5D Programmable Controller 5 Patterns 80 Segments |
|
|
16-bit Microprocessor ±0.1°C Digital PID Controller 2-Line Back-Light LCD Display Constant Temperature Mode / Program Mode 5 Pattern 80 Segments 999 times or unlimited repeat. Segment skip and pattern link function Automatic STOP timer Adjustable timer scale 99min 59sec / 99hr 59min or continuous Temperature calibration Auto-tuning function Class A Pt-100 Ω sensor RS-232C Interface with PC Software
|
|
|
PC Software |
|
|

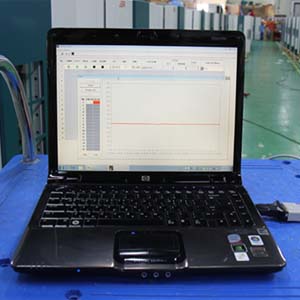

Turn On and Off control Temperature and Timer Setting Pattern Programming and uploading Current temperature Graph Rendering Temperature Data Logging by 0.01°C resolution Alarm Signal
|
Optional Accessories
|
Art No. |
Perforated Shelf, Stainless Steel 304 |
|
PHS-A12 |
for JSIO-400T W640 x D560 mm |
|
PHS-A16 |
for JSIO-600T W990 x D760 mm |
|
PHS-A18 |
for JSIO-1200T W1090 x D1010 mm |
Forced Convection Oven
JSOF-Series Forced Convection Ovens utilize a motorized fan to force air circulates across heating element to supply hot air into the chamber. The fan allows more consistent temperature distribution of the chamber for applications in which good temperature uniformity or faster heat up and short drying time are needed.
Natural Convection Oven
JSON-Series Natural (Gravity) Convection Ovens heat up chamber by mild gravity air convection with heating element located on the chamber bottom. Ideal for drying fine powders, general and conventional laboratory drying applications.
Upright Convection Oven
Upright Forced Convection Oven provides a big volume of chamber for large scale laboratory or industrial purpose. Nevertheless its large volume, dual heating system on upper and lower compartment with two separate heating elements and blowers provide better air circulation throughout the chamber to achieve excellent temperature uniformity and faster heat up time.
Compact Oven
Compact Oven is a common and universal instrument to be used to drying, heating and sterilizing objects by heating air up to 250°C with gravity or forced convection system
Vacuum Oven
Vacuum Drying Oven is suitable for drying out liquids or solvents contained in a samples or materials in vacuum environment to achieve low heat of vaporization or sublimation point. Ideal for Vacuum Distillation, Vacuum Sublimation or Vacuum Drying application of material science or electronic parts and assemblies. Also suitable for drying out fine powders in vacuum environment without air convection to prevent diffusion of such samples. Drying, curing, de-gassing, aging, removing moisture or solvent from fine powder or solid material, accelerating drying time, drying temperature sensitive material, drying in anaerobic condition, remove solvent from DNA, RNA or protein, drying unidentified material characteristic.
350°C Hi-Temp Oven
High-Temp. Forced Convection Ovens provides higher temperature up to 350°C than conventional ovens for special application for material research or testing laboratory. Motorized fan to force air circulation across heating elements and circulates into the chamber. The fan allows more consistent distribution of air and optional inert gas (Nitrogen Gas) purge system allows control oxidation of samples at high temperature treatment
HEPA Filter Clean Air Oven
Clean Air Oven is mechanical convection oven equipped with HEPA Filter Class H14 in laminar air path to remove particles up to 99.995% to keep oven chamber as clean room condition. Designed for applications drying or curing dust sensitive materials such as electronic components or medical parts, semi-conductor chip cleaning, display panel and wafer baking which needs particle free environment during heat treatment.
Dual Chamber Industrial Oven
Dual Chamber Industrial Drying Oven is ideal for a laboratory and industrial application needs a large number of sample treatment such as sample drying, heat treatment or thermal testing. Independent temperature controller for each chamber to set and run at different temperature according to requirement. Nevertheless it's large volume, dual heating system on upper and lower compartment with two separate heating elements and blowers provide better air circulation throughout the chamber to achieve excellent temperature uniformity and faster heat up time.
Heavy Duty Industrial Oven
Durable and Rugged Large Capacity Industrial Oven for industrial production line such as drying printed circuit panel, glass panel and stability test of electronic parts and components. Horizontal air flow with adjustable damper system on each shelf level allow to maintain optimum air circulation throughout the chamber which provides excellent temperature uniformity and operational condition
