Vacuum Oven
Specifications
|
Heating |
Heat transduction through aluminum shelf |
|
Temp. Range |
ambient + 10°C ~ 250°C |
|
Accuracy |
± 2.0°C at 120°C (Shelf surface) |
|
Uniformity |
± 3.0°C at 120°C (Shelf surface) |
|
Vacuum |
760 mmHg |
|
Control |
Microprocessor PID Control Auto START / STOP Timer |
|
Sensor |
Class A Pt-100 Ω Sensor |
|
Safety |
Over-Temperature Cut-Off |
|
|
Over Current Cut-Off |
|
Material |
Body - Epoxy Powder Coated Steel |
|
|
Chamber – Electropolished Stainless Steel 304 |
|
|
Insulation – 50mm thick woven mineral wool |
|
|
Shelf -including 2 ea x Anodized Aluminum |
|
Electric |
220±10% VAC 50/60Hz 1-Phase |
|
Plug config. |
CEE 7/7 Schuko or BS 1363 |
Models
|
Art No. |
|||
|
Chamber Volume |
27 L |
64 L |
|
|
Dimensions |
Inner |
300 x 300 x 300 |
400 x 400 x 400 |
|
W x D x H mm |
Outer |
665 x 470 x 535 |
765 x 575 x 635 |
|
Glass Window |
|
W265 x H285 |
W350 x H350 |
|
|
|

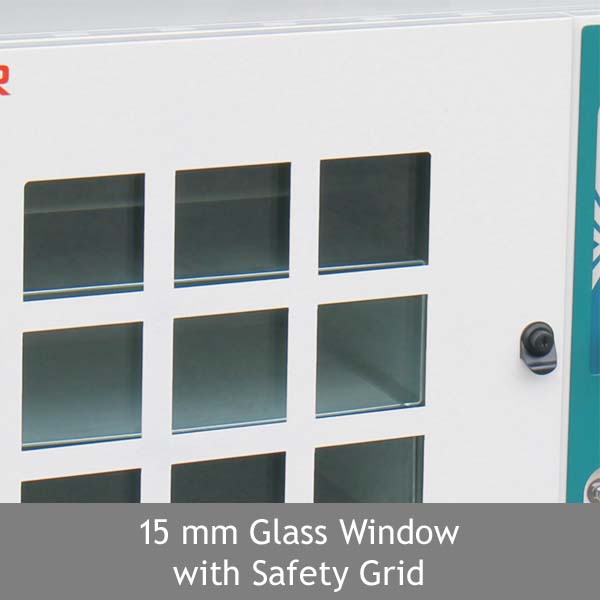

15 mm thick Tempered Safety Glass |
|
|
Temperature Range |
ambient +10°C to 250°C |
||
|
Accuracy at 120°C |
± 0.2°C |
||
|
Uniformity at 120°C |
± 3.0°C |
||
|
Maximum Vacuum |
760 mmHg |
||
|
Fitting |
Vacuum/Vent Ø 11 mm Hose barb |
||
|
Valves |
Vacuum/Lock : 2-Way Valve Vent : Adjustable Needle Valve |
||
|
No. of Shelves |
2 |
||
|
Heater Capacity |
2 x 1.0 kW |
4 x 700 W |
|
|
Power Rating |
9.2 Amp |
12.9 Amp |
|
|
Power Plug |
CEE 7/7 Schuko European Standard or BS 1363 British Plug |
||
Features

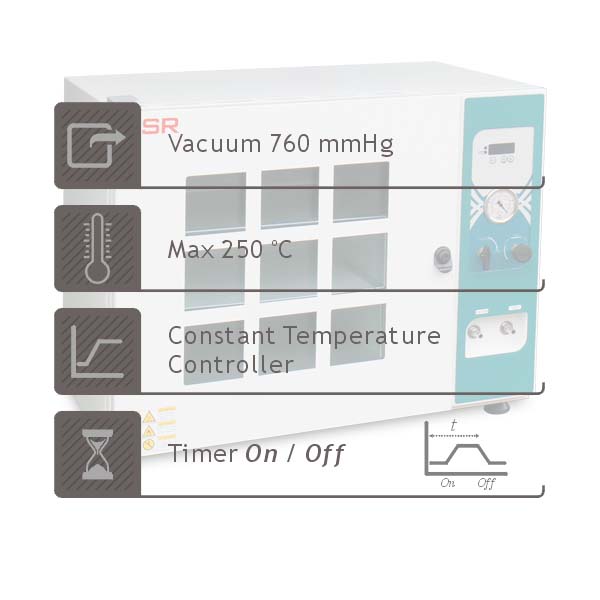

| Door /w Glass Window | Aluminum Shelves | Temp. & Vacuum Control | ||
 |
 |
 |
||

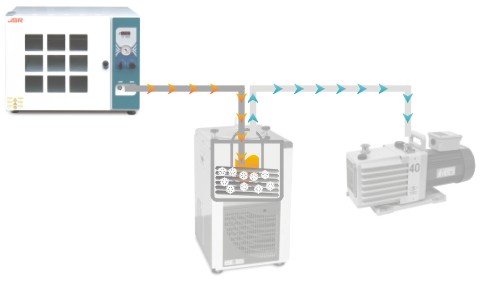

| Vacuum Diagram | Safety | |||
 |
 |
|||
|
Controller |
|
JSC-0D Digital PID Controller ±0.1°C Digital PID Controller with LED Display Automatic START/STOP timer Adjustable timer scale 99min 59sec / 99hr 59min / 99 day 23hr or continuous operation Temperature calibration Auto-tuning function Class A Pt-100 Ω sensor
|
|
Construction |
|

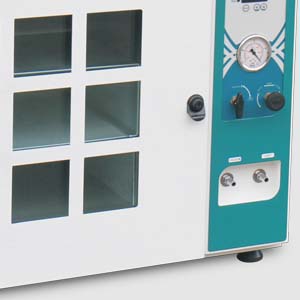

Durable epoxy powder coated metallic casing Corrosion resistant Electro-Polished Stainless Steel 304 chamber 15 mm thick tempered safety glass window for easy observation of samples and window grill for safety
|
|
Performance |
|

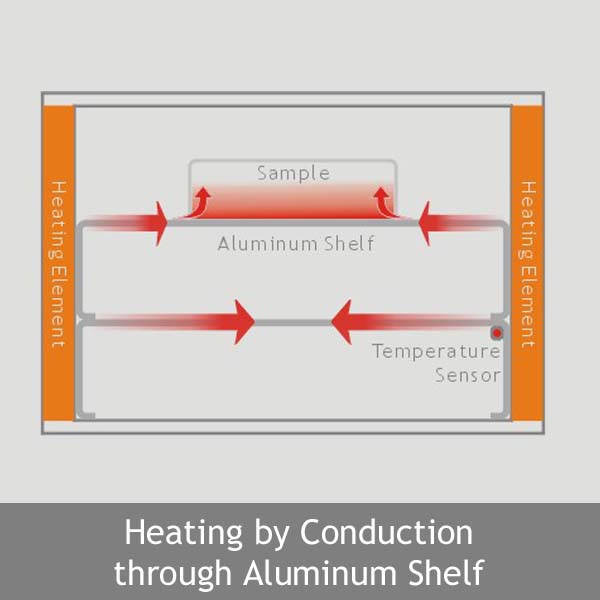

Heater from side wall transduces heat through aluminum shelf to maintain uniform temperature over the surface of shelf Class A Pt-100 Ω sensor embedded into the aluminum shelf to measure accurate temperature of the shelf 50mm thick high thermal efficiency mineral wool with woven aluminum barrier sheet saves energy and less dust
|
|
Convenience |
|

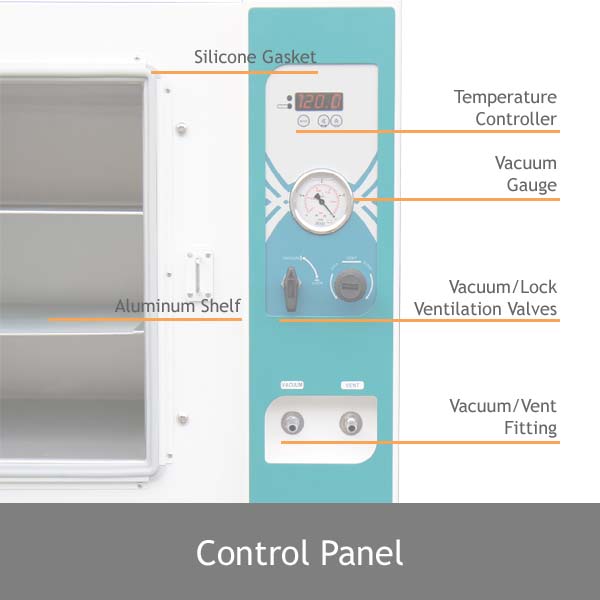

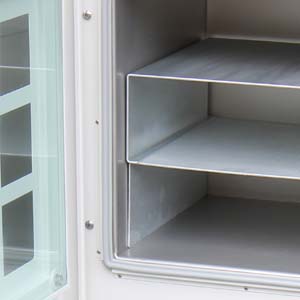

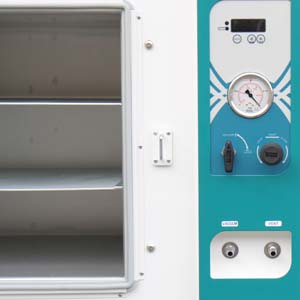

Corrosion resistant Stainless Steel 304 (ASTM 304) solid chamber interior Door with 15mm thick tempered safety glass window with safety grill Vacuum tight high density one-piece silicone door gasket Air tight one touch door latch Two tier aluminum shelf Equipped with Vacuum Gauge ~ 760 mmHg Two way valve to control vacuum and lock Adjustable needle valve for fine control of vent speed
|
|
Safety |
|
DUAL OVER TEMP. CUT-OFF Digital system cut-off heater and AUDIO VISUAL ALARM in case +2°C above set temperature Analog system cut-off heater 10% above set temp. MAX TEMP CUT-OFF heater and AUDIO VISUAL ALARM when +1°C above maximum limit SENSOR DISCONNECTION ALARM OVER CURRENT CUT-OFF : Electrical Leakage Breaker
|
Ordering Information
|
Art No. |
Descriptions |
Elec. Req. |
Capacity |
Net Wt. |
Ship Wt. |
|
JSVO-30T |
Vacuum Oven |
220 VAC 50/60 Hz |
27 L |
53 kg |
60 kg |
|
JSVO-60T |
Vacuum Oven |
220 VAC 50/60 Hz |
64 L |
76 kg |
86 kg |
Optional Accessories
|
Art No. |
Aluminum Shelf |
|
PHS-A91 |
for JSVO-30T W295 x D250 mm |
|
PHS-A92 |
for JSVO-60T W395 x D350 mm |
|
|
|
|
Art No. |
Vacuum Pump |
|
W2V10 |
Rotary Vane Vacuum Pump 100L/min 5x10-4 Torr Mfr. Woosung Vacuum, Korea 220VAC |
|
MZ2C NT |
Chemical Resistant Diaphragm Vacuum Pump Mfr. Vacuubrand, Germany 220VAC |

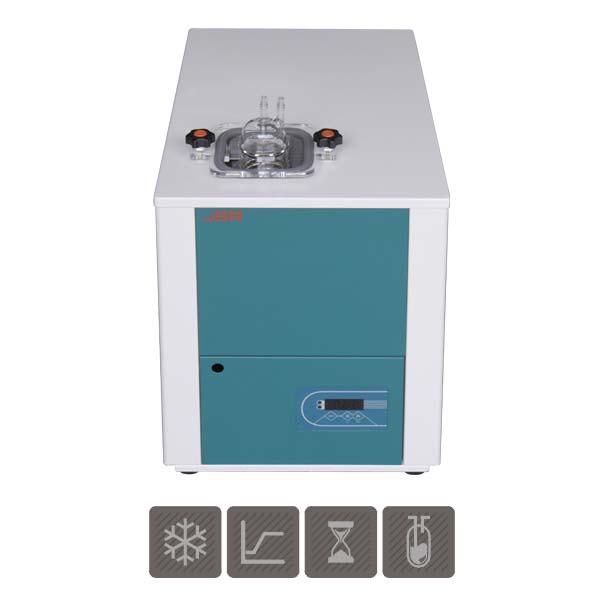

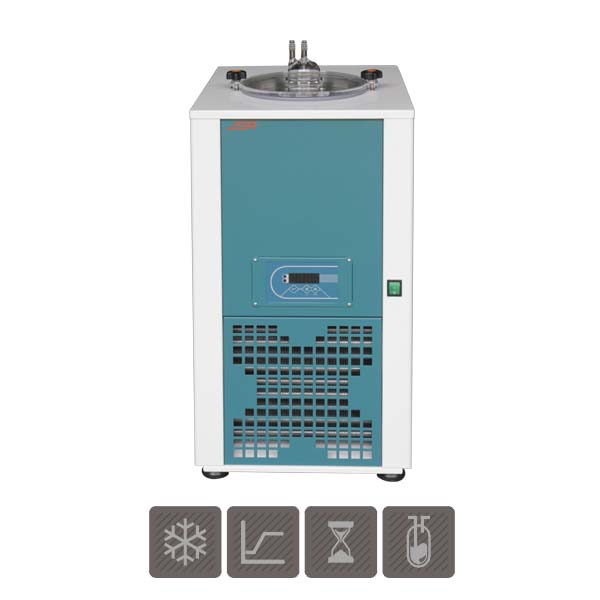

| Ultra-Low Cold Trap Bath | Ultra-Low Tabletop Cold Trap Bath | |
 |
 |
|
Art No. |
Cold Trap |
|
Art No. |
|
|
OHG-001 |
Glass Trap, 500 ml |
|
OHV-001 |
High Vacuum Hose, ID 9 mm x OD 24 mm x 1 meter |
