350°C Hi-Temp Oven
Specifications
|
Heating |
Forced Air Convection |
|
Temp. Range |
ambient + 10°C ~ 350°C |
|
Accuracy |
± 0.2°C at 200°C (JSOF-030H) |
|
Uniformity |
± 1.0°C at 200°C (JSOF-030H) |
|
Control |
Microprocessor PID Control Auto START / STOP Timer |
|
Sensor |
CA-Type Sensor |
|
Safety |
Over-Temperature Cut-Off |
|
|
Over Current Cut-Off |
|
Material |
Body - Epoxy Powder Coated Steel |
|
|
Chamber – Stainless Steel 304 |
|
|
Insulation – 50mm thick woven mineral wool, 25mm Ceramic Wool |
|
|
Shelf -including stainless steel wire shelf |
|
|
optional perforated stainless steel shelf |
|
Electric |
220±10% VAC 50/60Hz 1-Phase |
|
Plug config. |
CEE 7/7 Schuko or BS 1363 or 30 AMP |
Models
|
Art No. |
||||
|
Chamber Volume |
27 L |
96 L |
150 L |
|
|
Dimensions |
Inner |
300 x 300 x 300 |
400 x 400 x 600 |
500 x 500 x 600 |
|
W x D x H mm |
Outer |
745 x 460 x 580 |
845 x 560 x 880 |
945 x 660 x 880 |
|
Temperature Range |
ambient +10°C to 350°C |
|||
|
Accuracy at 120°C |
± 0.2°C |
± 0.3°C |
± 0.3°C |
|
|
Uniformity at 120°C |
± 1.0°C |
± 1.5°C |
± 1.5°C |
|
|
Heat up time to 120°C |
8 min. |
10 min. |
10 min. |
|
|
No. of Shelves / Max. No. |
2 / 14 |
2 / 20 |
2 / 20 |
|
|
No. of Ventilation damper |
1 |
|||
|
Heater Capacity |
2.0 kW |
2.5 kW |
3.0 kW |
|
|
Power Rating |
9.3 Amp |
11.5 Amp |
13.8 Amp |
|
|
Power Plug |
CEE 7/7 Schuko or BS 1363 British Plug |
30 AMP |
||
Features
| Construction | Chamber | Door Lock | ||
 |
 |
 |
||
| Safety | ||||
 |
|
Controller |
|

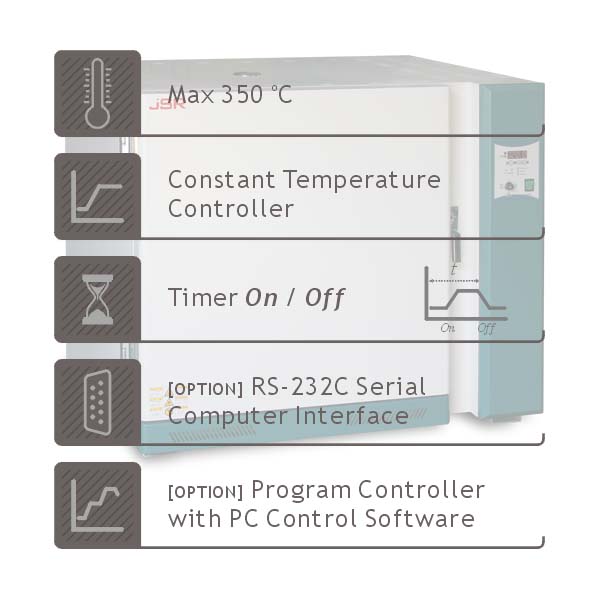

JSC-0D Digital PID Controller ±0.1°C Digital PID Controller with LED Display Automatic START/STOP timer Adjustable timer scale 99min 59sec / 99hr 59min / 99 day 23hr or continuous operation Temperature calibration Auto-tuning function Class A Pt-100 Ω sensor
|
|
Construction |
|

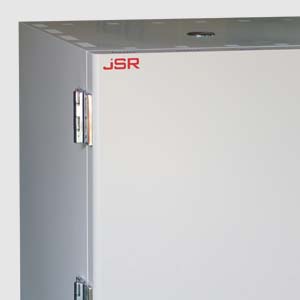

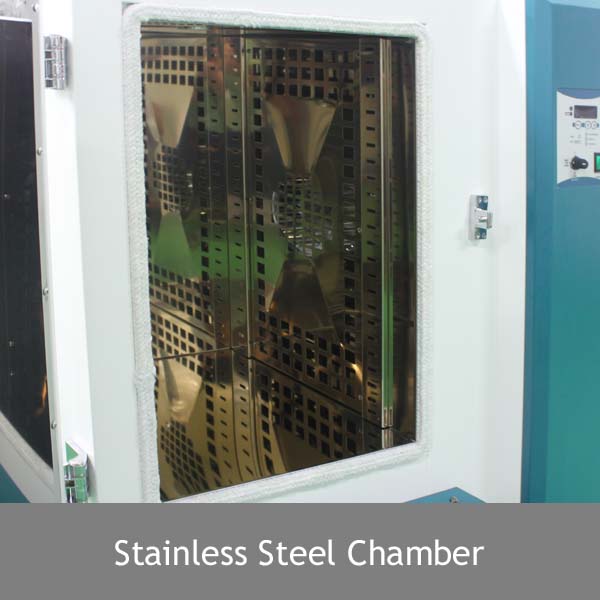

Durable epoxy powder coated metallic casing Ventilation damper Corrosion resistant Stainless Steel 304 chamber
|
|
Performance |
|
High capacity heating element with forced air convection for fast heat up time to high temperature Aero-dynamic chamber with circulation blower to achieve superior thermal uniformity Separate heating compartment located on side wall prevents contamination and maintenance free Double insulation with 50mm mineral wool and 25mm ceramic wool for better thermal insulation
|
|
Convenience |
|

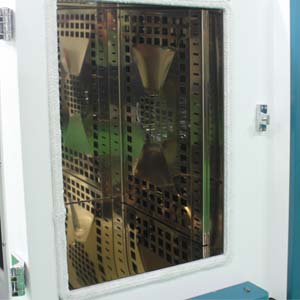

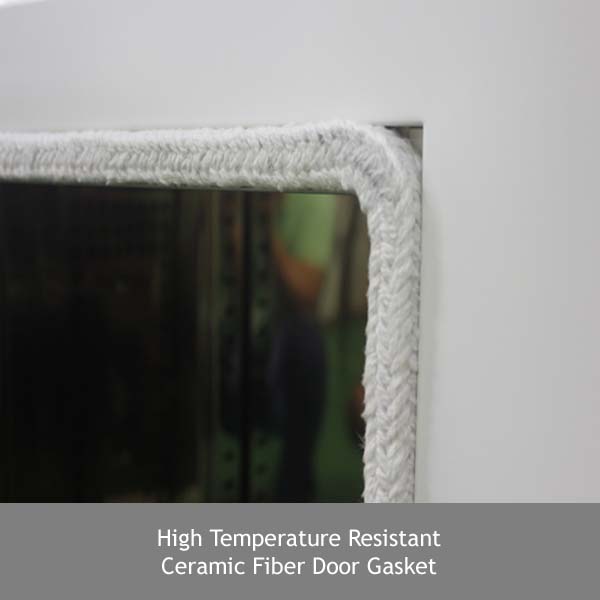

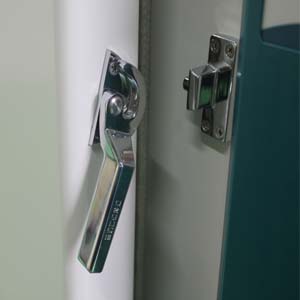

Corrosion resistant Stainless Steel 304 Chamber Removable and height adjustable shelf by 25mm spacing Outer door with ceramic gasket and compression door lock Opening size adjustable ventilation damper Non-contact door switch cut-off heater and blower High temperature resistant ceramic fiber door gasket
|
|
Safety |
|
DUAL OVER TEMP. CUT-OFF Digital system cut-off heater and AUDIO VISUAL ALARM in case +2°C above set temperature Analog system cut-off heater 10% above set temp. MAX TEMP CUT-OFF heater and AUDIO VISUAL ALARM when +1°C above maximum limit DOOR SENSOR : Non-contact magnetic door switch cut-off heater and blower when door opened SENSOR DISCONNECTION ALARM OVER CURRENT CUT-OFF : Electrical Leakage Breaker
|
Ordering Information
|
Art No. |
Descriptions |
Elec. Req. |
Capacity |
Net Wt. |
Ship Wt. |
|
JSOF-030H |
Hi-Temp Oven |
220 VAC 50/60 Hz |
27 L |
45 kg |
55 kg |
|
JSOF-100H |
Hi-Temp Oven |
220 VAC 50/60 Hz |
96 L |
65 kg |
73 kg |
|
JSOF-150H |
Hi-Temp Oven |
220 VAC 50/60 Hz |
150 L |
92 kg |
105 kg |
Optional Controller
|
Art No. |
Descriptions |
|
OEC-001 |
JSC-1D Digital PID Controller /w RS-232C Interface, PC Software |
|
|
±0.1°C Digital PID Controller with LED Display Automatic START/STOP timer Adjustable timer scale 99min 59sec / 99hr 59min / 99 day 23hr or continuous Temperature calibration Auto-tuning function Class A Pt-100 Ω sensor RS-232C Interface with PC Software
|
|
OEC-003 |
JSC-3D Programmable Controller 1 Pattern 11 Segments /w RS-232C Interface, PC Software |
|
|
16-bit Microprocessor ±0.1°C Digital PID Controller 2-Line Back-Light LCD Display Constant Temperature Mode / Program Mode 1 Pattern 11 Segments 999 times or unlimited repeat. Segment skip function Automatic STOP timer Adjustable timer scale 99min 59sec / 99hr 59min or continuous Temperature calibration Auto-tuning function Class A Pt-100 Ω sensor RS-232C Interface with PC Software
|
|
OEC-005 |
JSC-5D Programmable Controller 5 Patterns 80 Segments |
|
|
16-bit Microprocessor ±0.1°C Digital PID Controller 2-Line Back-Light LCD Display Constant Temperature Mode / Program Mode 5 Pattern 80 Segments 999 times or unlimited repeat. Segment skip and pattern link function Automatic STOP timer Adjustable timer scale 99min 59sec / 99hr 59min or continuous Temperature calibration Auto-tuning function Class A Pt-100 Ω sensor RS-232C Interface with PC Software
|
|
|

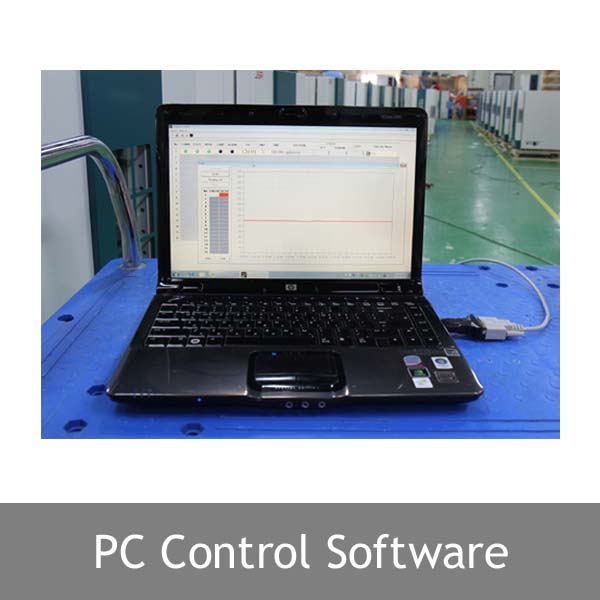

PC Software |
|
|
Turn On and Off control Temperature and Timer Setting Pattern Programming and uploading Current temperature Graph Rendering Temperature Data Logging by 0.01°C resolution Alarm Signal
|
Optional Accessories
|
Art No. |
Perforated Shelf, Stainless Steel 304 |
|
PHS-A01 |
for JSOF-030H W270 x D270 mm |
|
PHS-A04 |
for JSOF-100H W370 x D370 mm |
|
PHS-A20 |
for JSOF-150H W470 x D470 mm |
|
|
|
|
Art No. |
Wire Shelf, Stainless Steel 304 |
|
PHS-B01 |
for JSOF-030H W270 x D270 mm |
|
PHS-B04 |
for JSOF-100H W370 x D370 mm |
|
PHS-B14 |
for JSOF-150H W470 x D470 mm |
|
|
|
|
PHS-A99 |
Shelf Support, Set of 4 |
